Oki ML280 Elite User Manual

SETTING UP YOUR PRINTER > 17

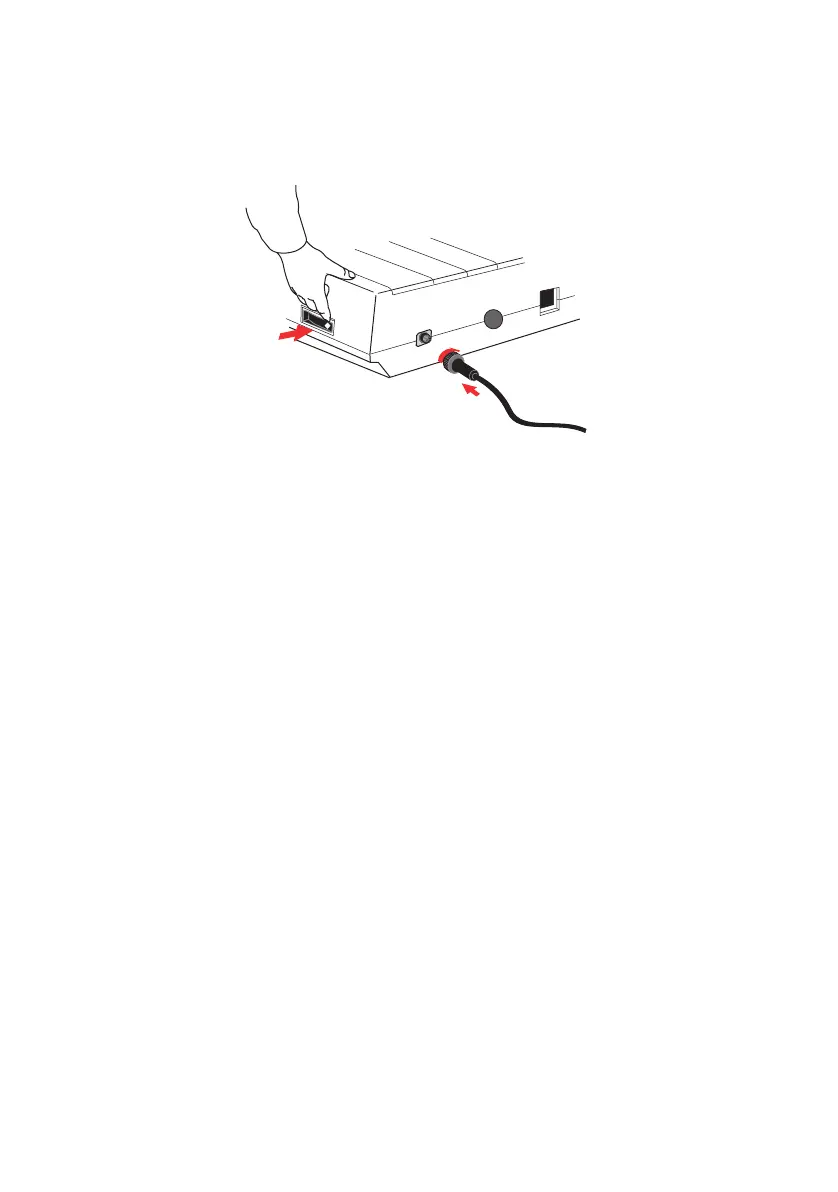

2. Plug the power cord into the back of the printer and lock by
twisting the collar of the connector clockwise.
3. Switch the Printer ON.
L
OADING
P
APER
Three types of paper can be used with your printer:
l Single sheet (with or without the optional cut sheet feeder)
l Roll paper (use the correct rollpaper stand)
l Fan-fold paper (with or without the optional tractor feed unit)
When using fan-fold paper, adjust the distance between the sprocket
pins at the ends of the platen to the holes in the paper. Fan-fold paper
can be fed from the rear of the printer, or, if a slotted stand is
available, from underneath.
REAR FEED CONTINUOUS FORM FAN-FOLD PAPER
Ensure that the printer is switched OFF and the power supply lead
removed.
1. Place a box of fan-fold paper behind the printer.
2
3

Oki ML280 Elite Specifications

General

Color	No
Character pitch	10, 12, 15, 17.1, 20 cpi
Maximum resolution	240 x 216 DPI
Typestyles supported	Double height, Double width, Emphasised, Enhanced, Italics, Overscore, Underline
Maximum number of copies	3 copies
Maximum print speed (draft)	240 cps
Maximum printing width (columns)	160
Mean time between failures (MTBF)	20000 h
Product color	Gray
Sound pressure level (printing)	58 dB
Sound pressure level (quiet mode)	51 dB
Standard interfaces	Parallel, USB 2.0
Optional connectivity	Serial (RS-232), Serial (RS-422)
AC input voltage	220 - 240 V
Voltage tolerance	10 %
AC input frequency	50 - 60 Hz
Power consumption (typical)	60 W

Weight and Dimensions

Depth	275 mm
Width	372 mm
Height	80 mm
