OPERATING YOUR PRINTER > 35
CUT-SHEET FEEDER CONTROLS
The printer’s control switches also control the operation of the cut-
sheet feeder. The control switches, however, function only when the
printer is off-line or deselected (SELECT indicator is not lit).
U
SING THE
R
OLL
P
APER
S
TAND
(
IF FITTED
)

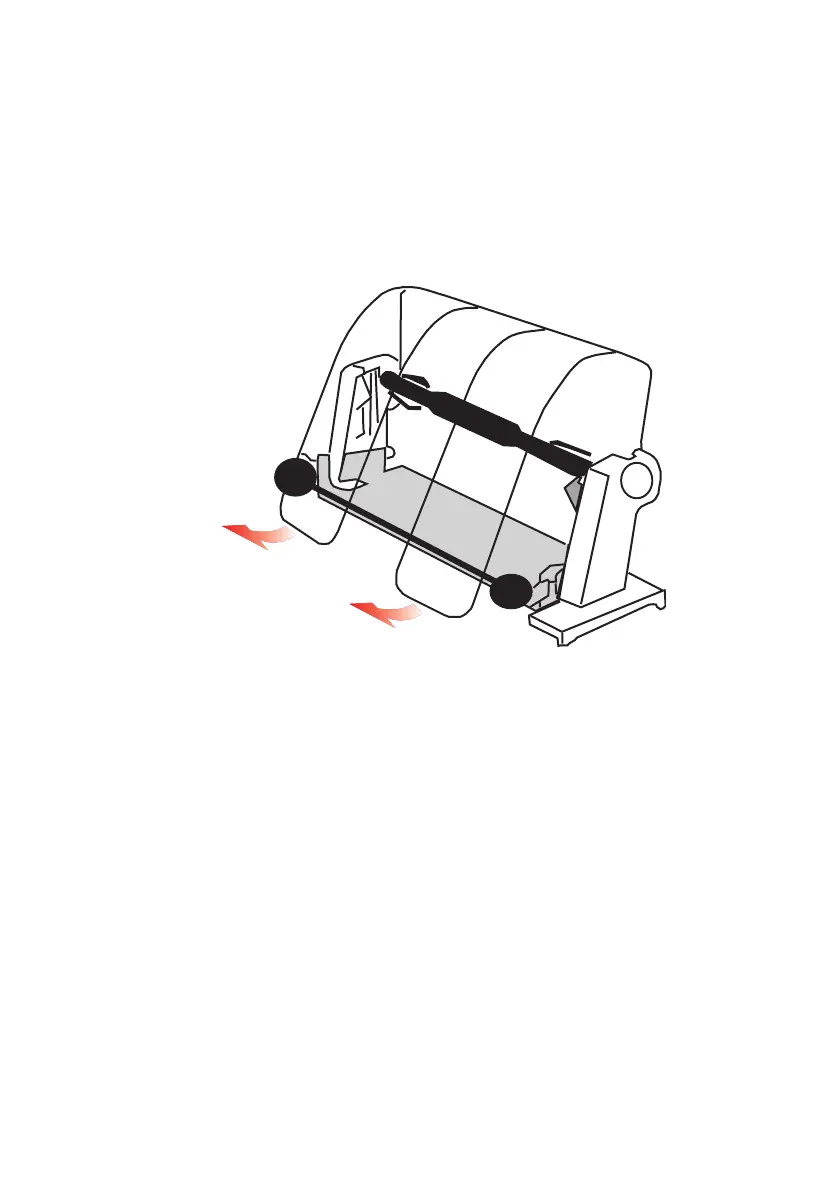

LOADING THE PAPER
1. Open the paper separator all the way.
2. Remove the paper roller.
Note that there is a disk on the left end of the roller.
3. Slide the roller into a tube of paper.
Ensure the disk is on the left side and paper must roll up from
the bottom.
4. Replace the paper roller back into the stand, with the disc on
the left side.
5. Feed the paper over the roller on the stand. NOT UNDER!
6. Adjust the round paper guides at either side to the paper
width.

Oki ML280 Elite Specifications

General

Color	No
Character pitch	10, 12, 15, 17.1, 20 cpi
Maximum resolution	240 x 216 DPI
Typestyles supported	Double height, Double width, Emphasised, Enhanced, Italics, Overscore, Underline
Maximum number of copies	3 copies
Maximum print speed (draft)	240 cps
Maximum printing width (columns)	160
Mean time between failures (MTBF)	20000 h
Product color	Gray
Sound pressure level (printing)	58 dB
Sound pressure level (quiet mode)	51 dB
Standard interfaces	Parallel, USB 2.0
Optional connectivity	Serial (RS-232), Serial (RS-422)
AC input voltage	220 - 240 V
Voltage tolerance	10 %
AC input frequency	50 - 60 Hz
Power consumption (typical)	60 W

Weight and Dimensions

Depth	275 mm
Width	372 mm
Height	80 mm
