Page: 67
Service Guide ML390/391
Chapter 3 Maintenance & Disassembly
3.2.23 Release Lever
· Perform these procedures:
3.2.01
,3.2.02 , 3.2.04 , 3.2.22

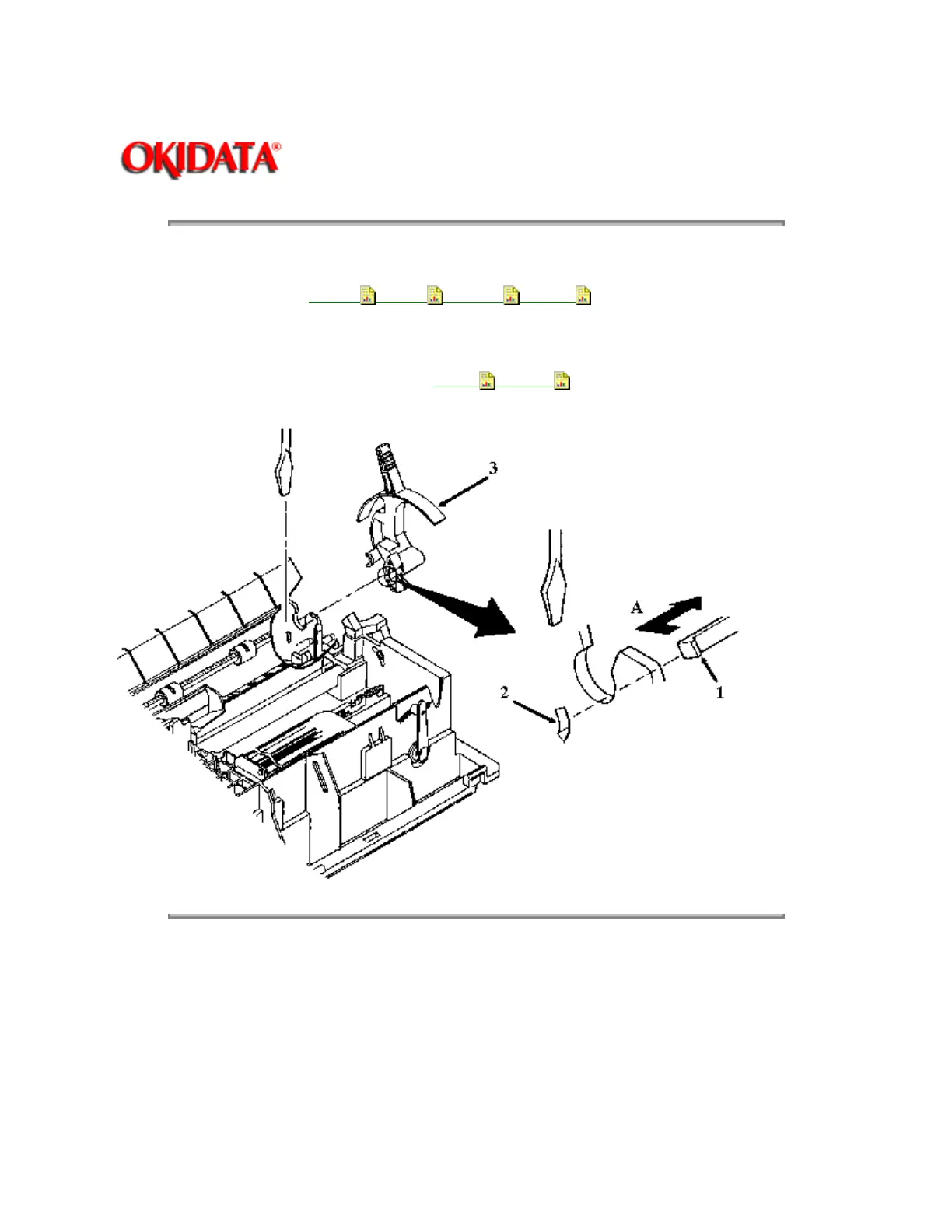

· Release the claw (1) from the guide (2) in the chassis.
· Pull the release lever (3) in the direction of arrow A and remove the lever.
P/N 53489501 Lever: Release All RSPL A B C
B.2.05
, B.2.07
Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business
Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
