Service Guide ML390/391
Chapter A Board Diagrams

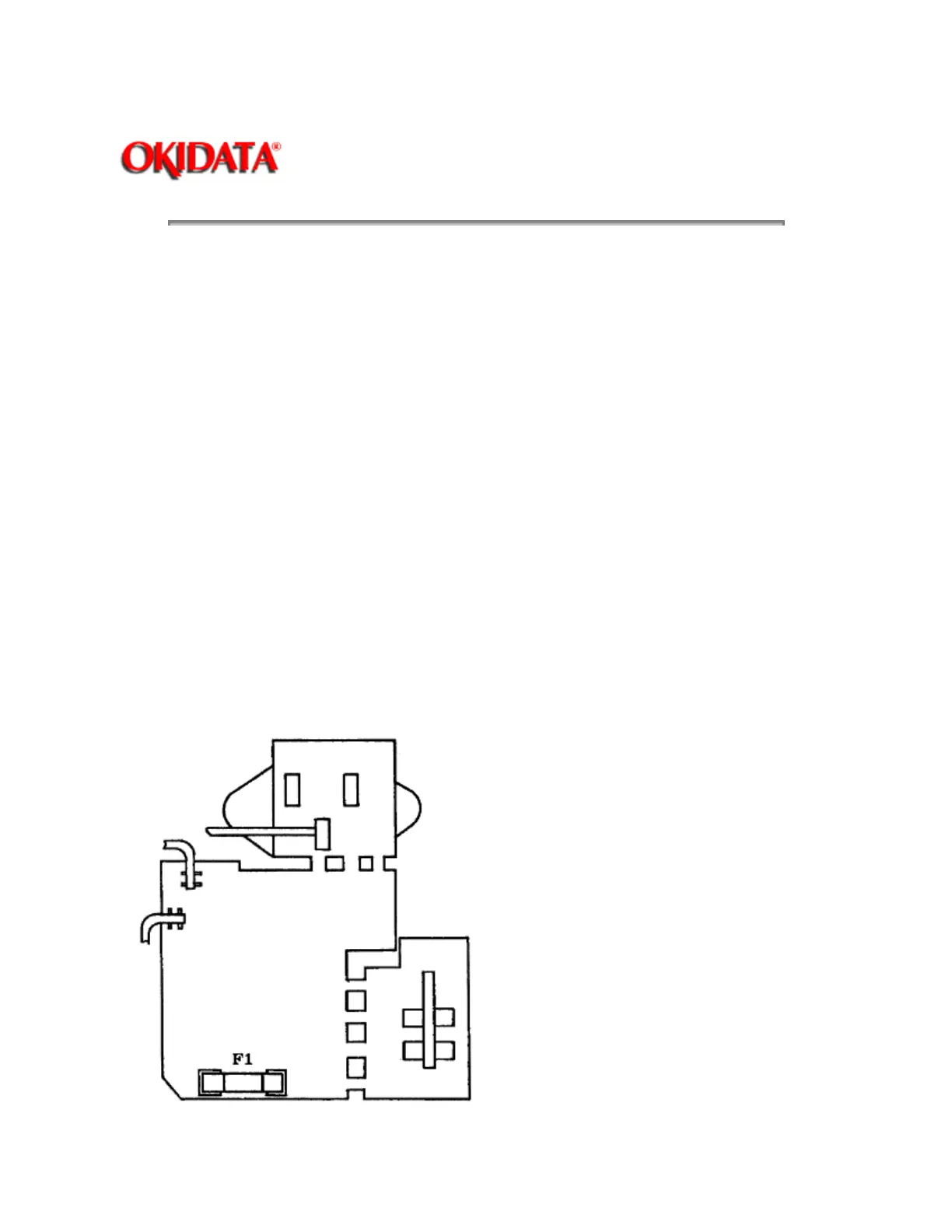

A.2.05 Filter Assembly
Function
This assembly filters out AC line noise. Its fuse will open when a fault occurs in the printhead drive circuit,
the space motor drive circuit, or any of their peripheral circuits. This prevents component failure.
Firmware
NONE
Fuses
F1 (also known as the AC fuse)
5 amp (250 V)
Jumpers
NONE
Sensors
NONE
Switches
Power ON/OFF
Test Points
NONE
