14
EN

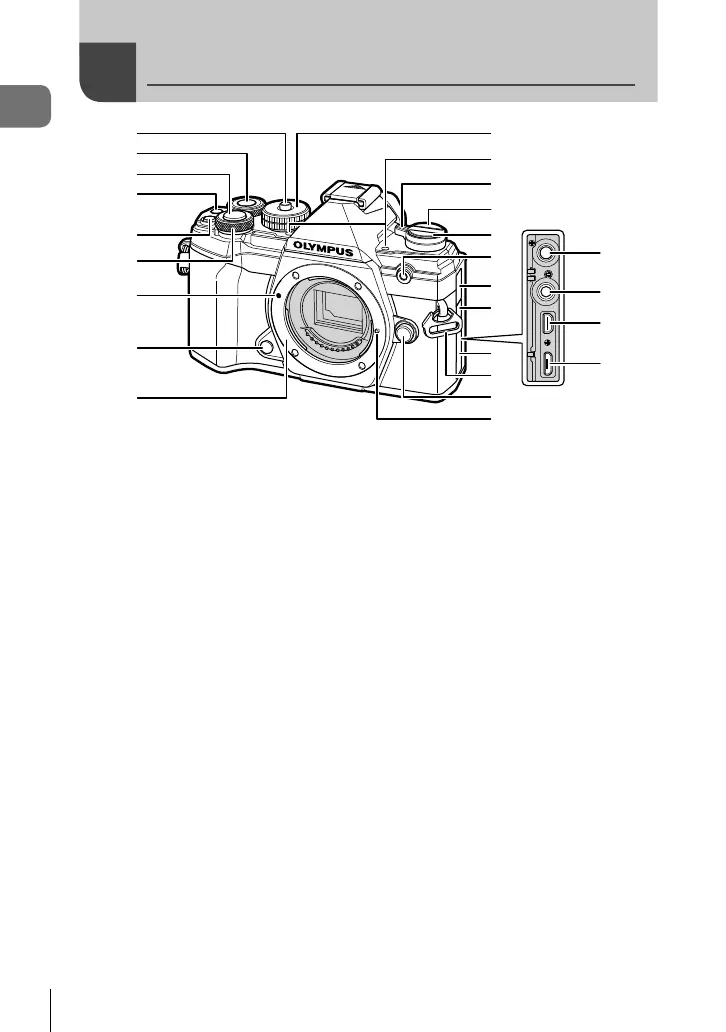

Names of parts
Names of parts
1
2
3
4
5
6
8
7
9
0
n
o
m
e
f
g
h
i
j
k
l
a
b
c
d
1 Mode dial lock .................................P. 34
2 Rear dial* (o)
......................... P. 38 – 43, 113, 116, 189
3 Shutter button .................................P. 35
4 R (Movie)/H button ............P. 58/P. 119
5 F (Exposure compensation) button
................................P. 38, 40, 42, 44, 64
6 Front dial* (r)
........................... P. 38 – 43, 70, 113, 116
7 Lens attachment mark ....................P. 23
8 Preview button ..............................P. 108
9 Mount (Remove the body cap before
attaching the lens.)
0 Mode dial ........................................P. 34
a Stereo microphone ...............P. 122, 150
b ON/OFF lever ................................P. 26
c u (LV) button ...............................P. 32
d jY (Sequential shooting/Self-timer/
HDR) button ....................................P. 71
e Self-timer lamp/AF illuminator
.............................................P. 71/P. 163
f Microphone jack cover
g Remote cable terminal cover ........P. 219
h Connector cover
i Strap eyelet.....................................P. 17
j Lens release button ........................P. 24
k Lens lock pin
l Microphone jack (A commercially
available microphone can be connected.
ø3.5 stereo mini plug) ...................P. 151
m Remote cable terminal ..................P. 219
n HDMI connector (type D) ..............P. 191
o Micro-USB connector............P. 151, 208
* In this manual, the r and o icons represent operations performed using the front dial
and rear dial.
To Next Page
