26
3-1
Host Link Unit Dimensions

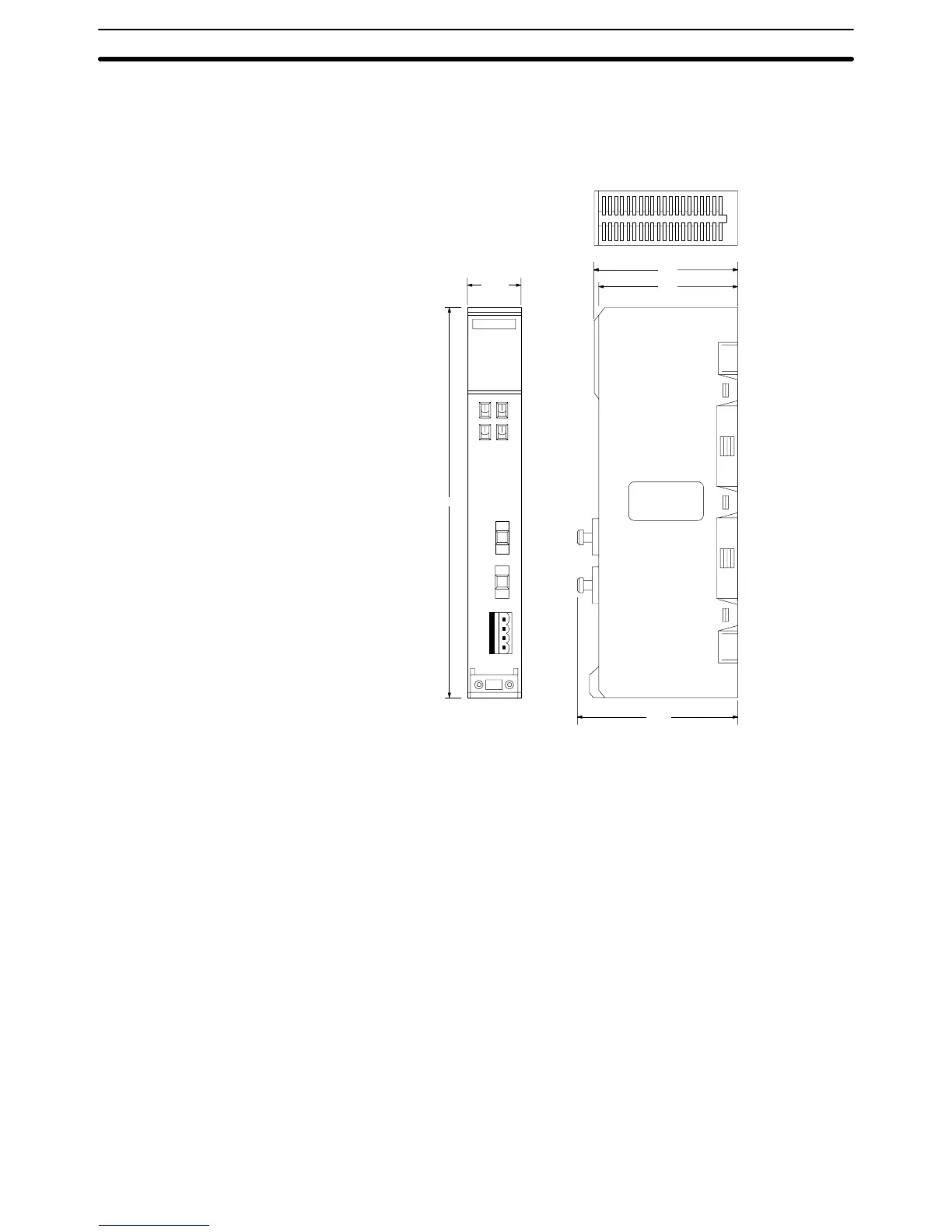

All dimensions are in millimeters in the following diagram of the CV500-LK201
Host Link Unit. For the CPU dimensions and general installation procedures,
refer to the
CV
-series PC Installation Guide
.
34.5
250
93
105
95
Host Link Unit Dimensions
Section 3-1
30
32
Table of Contents
Table of Contents
4
Introduction
8
Overview
9
System Configuration
12
Communications Specifications
15
Gateway Function
16
Section 2 Switch Settings and Communications Parameters
17
Switch Settings and Communications Parameters
17
CPU Settings and Parameters
18
Interface-Related Components on CPU
18
Host Link Unit Settings and Parameters
19
Communications Parameters in PC Setup
19
Host Link Unit Setting Procedure
19
Host Link Unit Components
20
CPU Bus Unit System Setup
24
Section 3 Installation
30
Installation
30
Host Link Unit Dimensions
31
Mounting the Host Link Unit
32
Connection Cables for the Host Link Unit
32
RS-232C Connections
33
CPU Connections
33
Host Link Unit Connections
34
Connections
36
CPU Connections
36
Host Link Unit Connections
38
1-To-1 Connection Examples
40
Host Link Unit Connection to Host Computer
40
Host Link Unit Connection to PT
42
Optical Interface Connections
43
Required Devices
43
Connections to Optical Module
44
1-To-N Connection Example
45
Wiring
47
Connecting the Shield to FG
47
Not Connecting the Shield to FG
47
Soldering
48
Hood Assembly
49
Recommended Cables and Connectors
49
Link Adapters
49
Cable Lengths
50
Section 4 Communications
51
Communications
51
Initial Communications Test
52
Wrap Communications Test
53
Connector Wiring
54
Test Contents
55
C-Mode Commands
56
Test Errors and Possible Corrections
56
Communications Protocol
57
Blocks
57
Blocks over 131 Characters Long
58
Right to Send
59
Frame Checksum (FCS) Calculation
60
Sending Commands to Host Computers
61
Transfer of Right to Send
61
Commands from PC Instructions
61
Command Format Received by Host Computers
62
Response Format Sent by Host Computer
63
Commands from Pcs
63
Communications Timing
68
C-Mode Commands
75
C-Mode Command List
76
Cio Area Read
77
Link Area Read
77
Holding Area Read
78
Pv Read
78
Tc Status Read
79
DM Area Read
79
Auxiliary Area Read
80
DM Area Read (Fixed)
80
Cio Area Write
81
Link Area Write
81
Holding Area Write
82
Pv Write
82
DM Area Write
83
Auxiliary Area Write
83
Sv Read 1
84
Sv Read 2
85
Sv Read 3
87
Sv Change 1
89
Sv Change 2
89
Sv Change 3
91
Status Read
93
Status Write
94
Error Read
95
Forced Set
96
Forced Reset
96
Forced Set/Reset Cancel
97
Pc Model Read
98
Test
98
Program Read
98
Program Write
99
I/O Table Generate
99
I/O Register
99
Abort
102
Response to an Undefined Command
102
Initialize
102
Maintenance and Troubleshooting
103
Maintenance
103
Indicators
103
C-Mode Response Codes
103
CV-Mode Response Codes
108
B Specifications
117
C Host Link Unit Memory Area Allocations
119
D Sample Programs Including Commands for Host Computer
126
Glossary
129
Index
144
Revision History
147
