109
6-1-2 Prescaling Value
• A prescaling input value can be set using the actual measured value instead of
key input in the prescaling menu.
• Input the process value as a reference value at the time of teaching.
• The prescaling value is calculated automatically by setting the present value
displayed by the RESET/TEACH Key to an appropriate value.
If the process value is 50 at the time of teaching and the value to be dis-
played is 1, the prescaling value is obtained from the following.
Value to be displayed/Process value = 1/50 = 0.02
Therefore, X (mantissa) and Y (exponent) in the pscl prescaling menu are
set to 2 and –2 respectively.
• Follow the steps below to teach the setting value.
1, 2, 3... 1. Press the RESET/TEACH Key for more than one second while the parame-
ter is displayed. The process value will be displayed and the teaching indica-
tor will flash.
2. Press the RESET/TEACH Key again to change the present setting. Press
the Up and Shift Keys to set the value to be displayed. Press the Escape Key
to interrupt teaching.
3. Press the RESET/TEACH Key again to set the prescaling value.

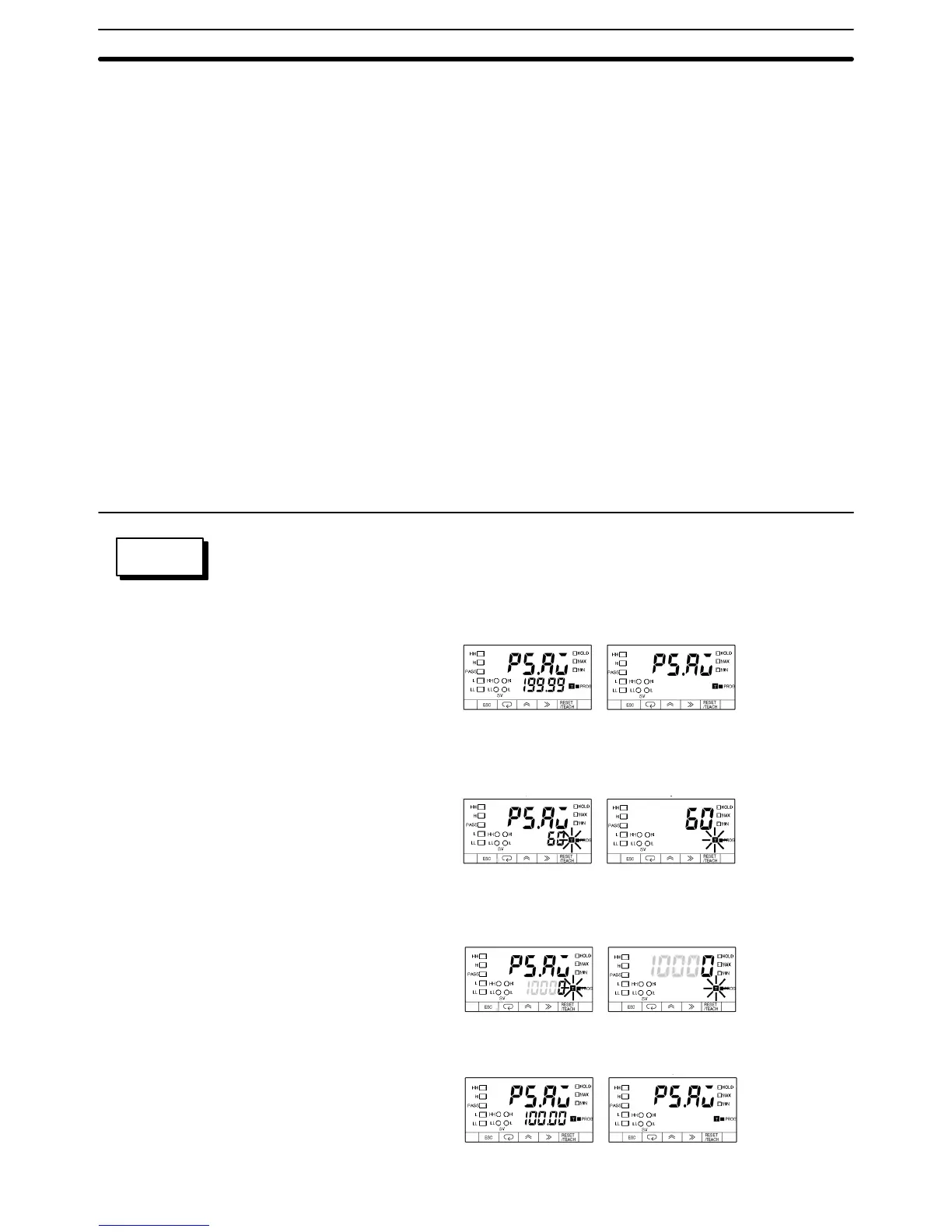

Follow the steps described below to use the teaching function to make the K3NR display
60 as 100.00.
Note In this example, all bank settings are disabled.
Set Value LED Display Model Basic Model
1, 2, 3... 1. Press the TEACH/RESET Key for more than one second while the parame-
ter is displayed. The teaching indicator will flash.
Set Value LED Display Model Basic Model
2. Press the RESET/TEACH Key again to change the present setting. Press
the Up and Shift Keys to set the value to be displayed.
Set Value LED Display Model Basic Model
3. Press the RESET/TEACH Key again to set the prescaling value.
Set Value LED Display Model Basic Model
SETTING
EXAMPLE
Teaching Function Section 6-1
