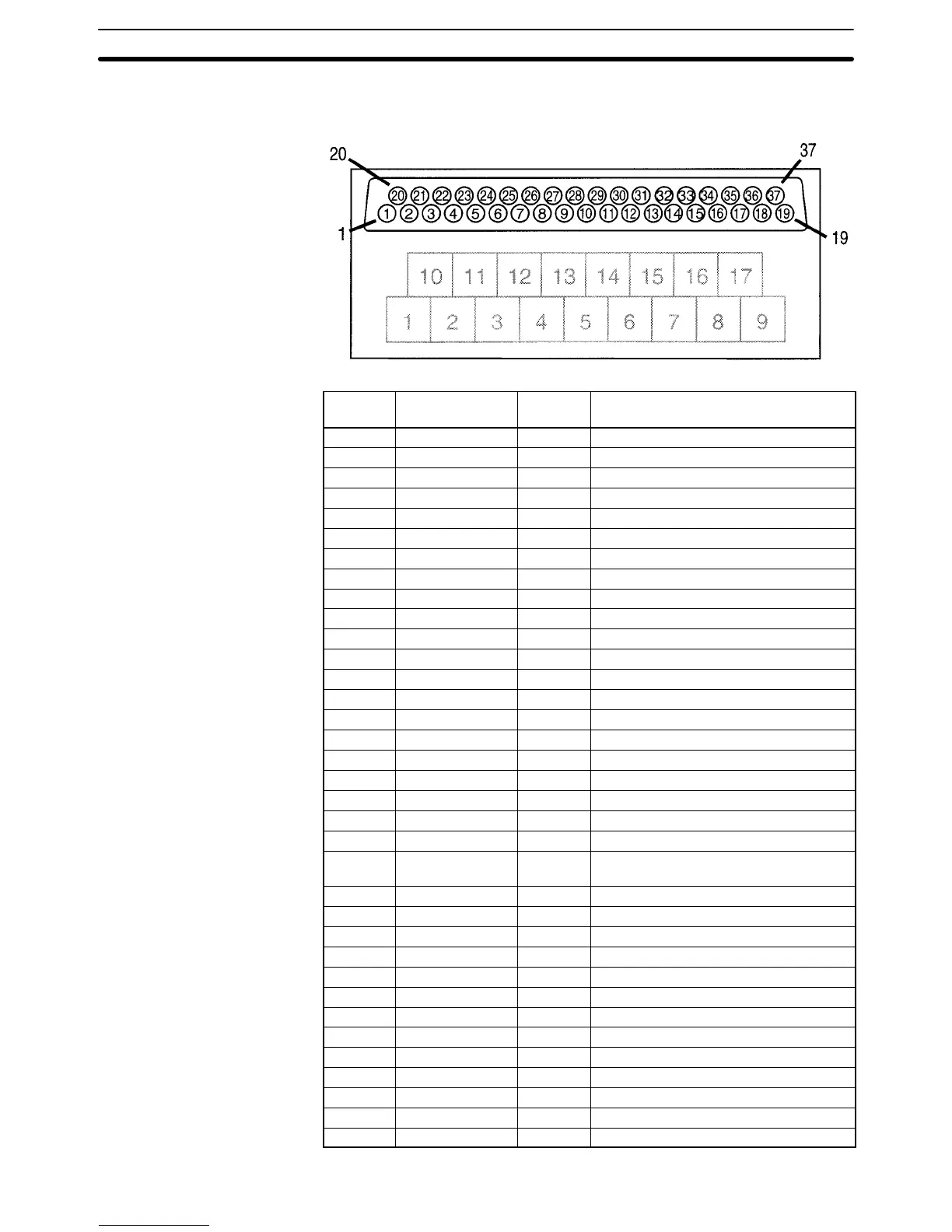

7-1 Connectors
Terminal Arrangement
Terminal
number
Signal name Signal
direction
Use
1 COM --- GND:VO (See note 1.)
2 RD1-1 Output 1: Read data 10
0
digit
3 RD1-2 Output 2: Read data 10
0
digit
4 RD1-4 Output 4: Read data 10
0
digit
5 RD1-8 Output 8: Read data 10
0
digit
6 RD2-1 Output 1: Read data 10
1
digit
7 RD2-2 Output 2: Read data 10
1
digit
8 RD2-4 Output 4: Read data 10
1
digit
9 RD2-8 Output 8: Read data 10
1
digit
10 RD3-1 Output 1: Read data 10
2
digit
11 RD3-2 Output 2: Read data 10
2
digit
12 RD3-4 Output 4: Read data 10
2
digit
13 RD3-8 Output 8: Read data 10
2
digit
14 RD4-1 Output 1: Read data 10
3
digit
15 RD4-2 Output 2: Read data 10
3
digit
16 RD4-4 Output 4: Read data 10
3
digit
17 RD4-8 Output 8: Read data 10
3
digit
18 RD5-1 Output 1: Read data 10
4
digit
19 RD5-2 Output 2: Read data 10
4
digit
20 RD5-4 Output 4: Read data 10
4
digit
21 RD5-8 Output 8: Read data 10
4
digit
22 OVER Output Output when input value is not within the
display range.
23 D - V Output Data confirmation signal
24 RUN Output Operation signal
25 COM --- GND:VO (See note 1.)
26 REQ Input PV output request
27 MAX REQ Input Maximum value output request
28 MIN REQ Input Minimum value output request
29 HOLD Input Hold input
30 RESET Input Reset input
31 POL Output Positive/Negative polarity signal
32 HH Output HH output (See note 2.)
33 H Output H output (See note 2.)
34 PASS Output PASS output (See note 2.)
35 L Output L output (See note 2.)
