4-2 Setting Mode

4-2-1 Selecting Setting Mode

• The K3NR in RUN mode will go into setting mode if the Mode Key is pressed for

1 s minimum.

• The K3NR in setting mode will go into RUN mode if the Escape Key is pressed.

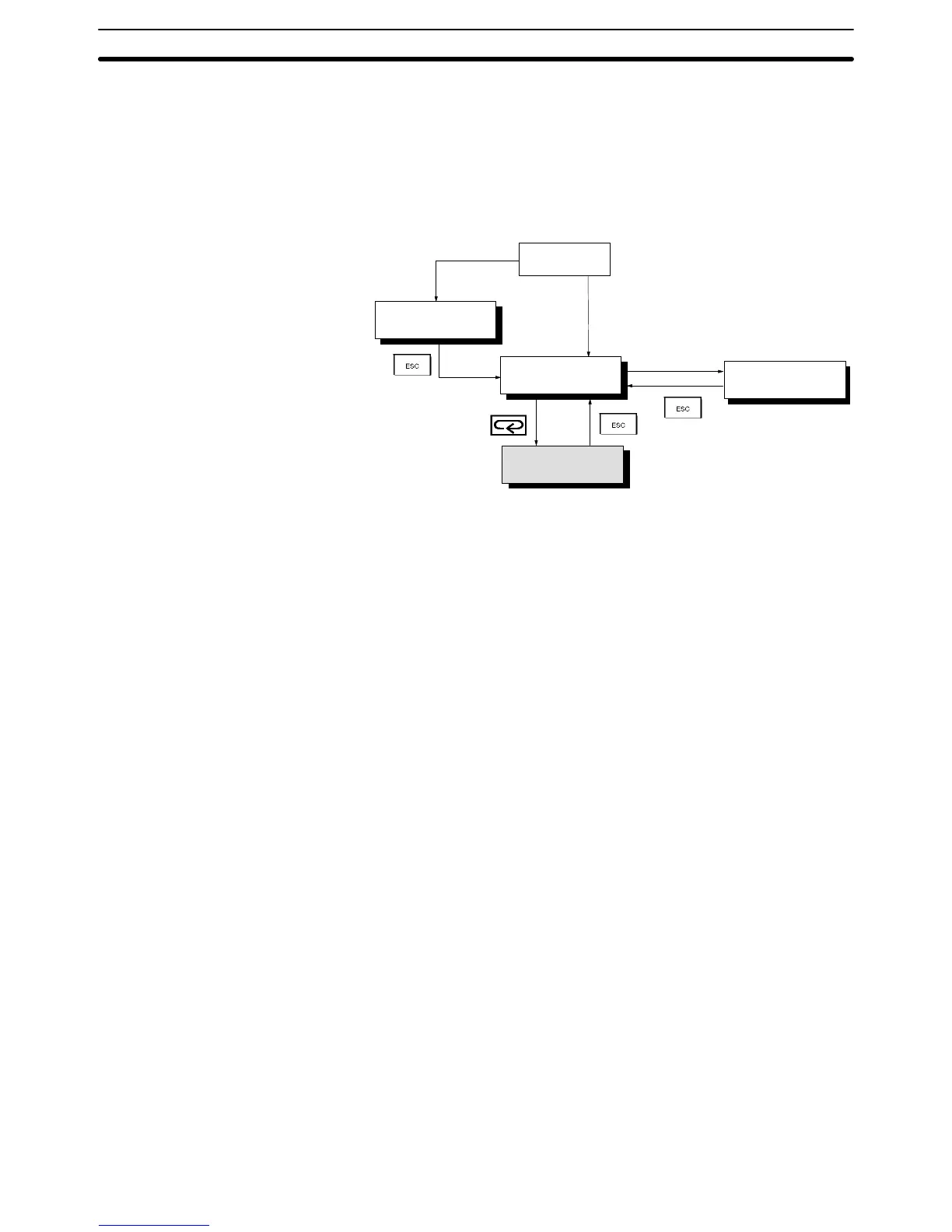

RUN mode

Press the Mode and Shift Keys

while turning the K3NR on.

Power On

Press the Escape and Up

Keys for 1 second.

Maintenance mode

RUN mode

1 second

Setting mode

Protect mode

• The menu in each mode changes whenever the Mode Key is pressed.

• If the Mode Key is pressed for more than one second while a menu is dis-

played, a parameter will be displayed.

• The parameter changes whenever the Mode Key is pressed.

• If the Shift Key is pressed while a parameter is displayed, the parameter will be

ready to change.

• Press the Up Key to change parameters.

• The digit of a set value is selected with the Shift Key and changed with the Up

Key.

• The PROG indicator is lit while a menu or parameter is displayed.

• The PROG indicator flashes during a set value change.

Note If the operating mode is changed, all the other parameters will be set to default

values except communication setting and set values in protect mode. Therefore,

set the operating mode and sensor type first.

Setting Mode

Section 4-2

Omron K3NR User Manual
