4-2-5 Setup Menu (setup)

Operating Mode

Use this menu to select the operating mode of the K3NR. All parameters will be

set to default values if any change is made in this parameter except to those for

the communications and protect settings.

f1: Displays the number of circumferential or rotational speed of in-

put A.

f2 through f5: Displays the result of the arithmetic operation of two different

revolutions.

f6: Displays the value of passing time calculated from the frequen-

cy or processing length of input A.

f7: Displays the pulse counting of input A.

Setting Default

f1: Rotational/circumferential speed

f2: Absolute ratio

f3: Error ratio

f4: Rotational difference

f5: Flow rate ratio

f6: Passing time

f7: Pulse counting

Refer to Section 3 Operating Modes.

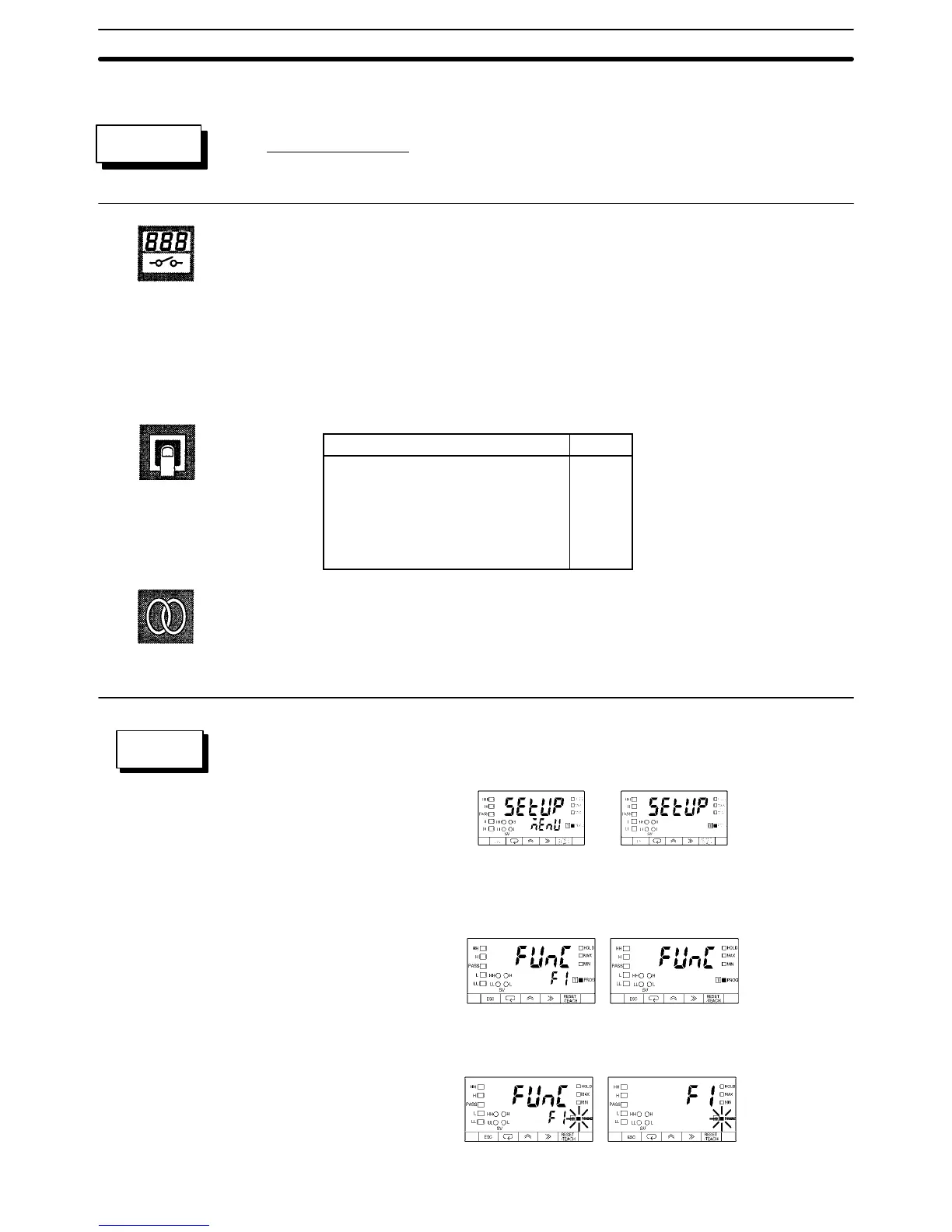

Follow the steps described below to select the f4 rotational difference setting.

Set Value LED Display Model Basic Model

1, 2, 3... 1. Press the Mode Key for more than one second while the setup setup menu

is displayed. The func operating mode setting will appear.

Set Value LED Display Model Basic Model

2. Press the Shift Key to display f1 for changing. The PROG indicator will flash.

Set Value LED Display Model Basic Model

func

FUNCTION

SETTING

REFERENCE

SETTING

EXAMPLE

Setting Mode

Section 4-2
