48
Setting Mode
Section 4-2

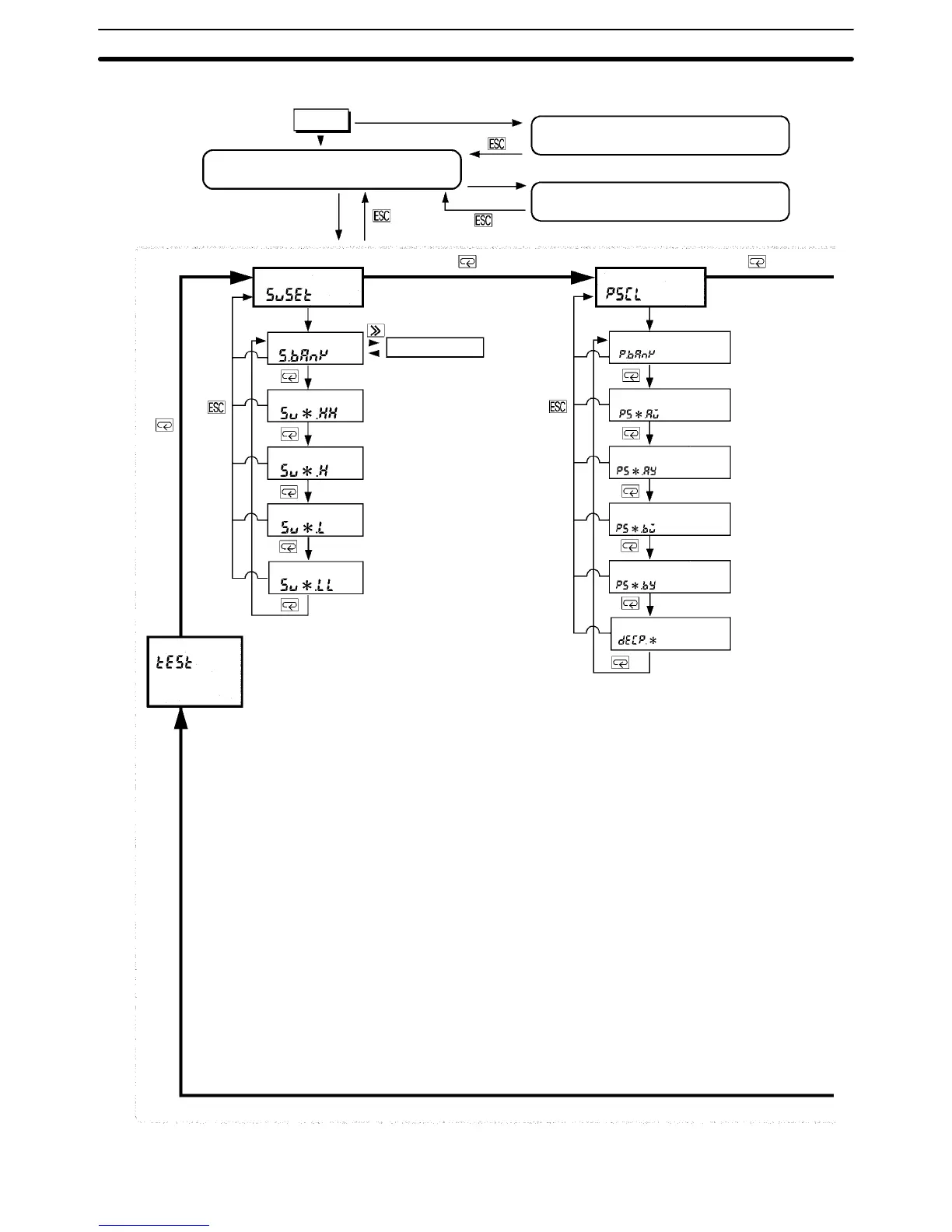

4-2-2 Menu Overview
Power On
RUN Mode
Refer to Section 5 Operations in RUN Mode.
Setting Mode
Press the
Mode Key
for 1 second.
Press the Mode and Shift Keys
while turning the K3NR on.
Press the Escape and
Up Keys for 1 second.
Maintenance Mode
Refer to Section 6 Useful Functions.
Protect Mode
Refer to 4-3 Protect Mode.
Setting value menu
Bank no. of set value
HH setting value
H setting value
L setting value
LL setting value
Output Test
Refer to Section 6
Useful Functions.
Prescaling menu
1 to 4
Bank no. of prescale
value
Prescaling value of input A
X (mantissa)
Decimal point position
Press the Mode Key for 1 second.
(see note 1)
Press the Mode Key for 1 second.
Prescaling value of input A
Y (exponent)
Prescaling value of input B
X (mantissa)
Prescaling value of input B
Y (exponent)
Note 1. When making new settings or changing settings of each parameter, press the
Shift Key to shift to the setting state.
The input will be updated automatically if no change is made for five seconds.
2. The K3NR stops measurement in setting mode.
Some menus cannot be set according to the Output Board selected.
If the operating mode is changed, all the other parameters will be set to default
values except communication setting and set values in protect mode. There-
fore, set the operating mode and sensor type.
To Next Page
