Omron K3NR User Manual

139
Appendix F
Setting Examples

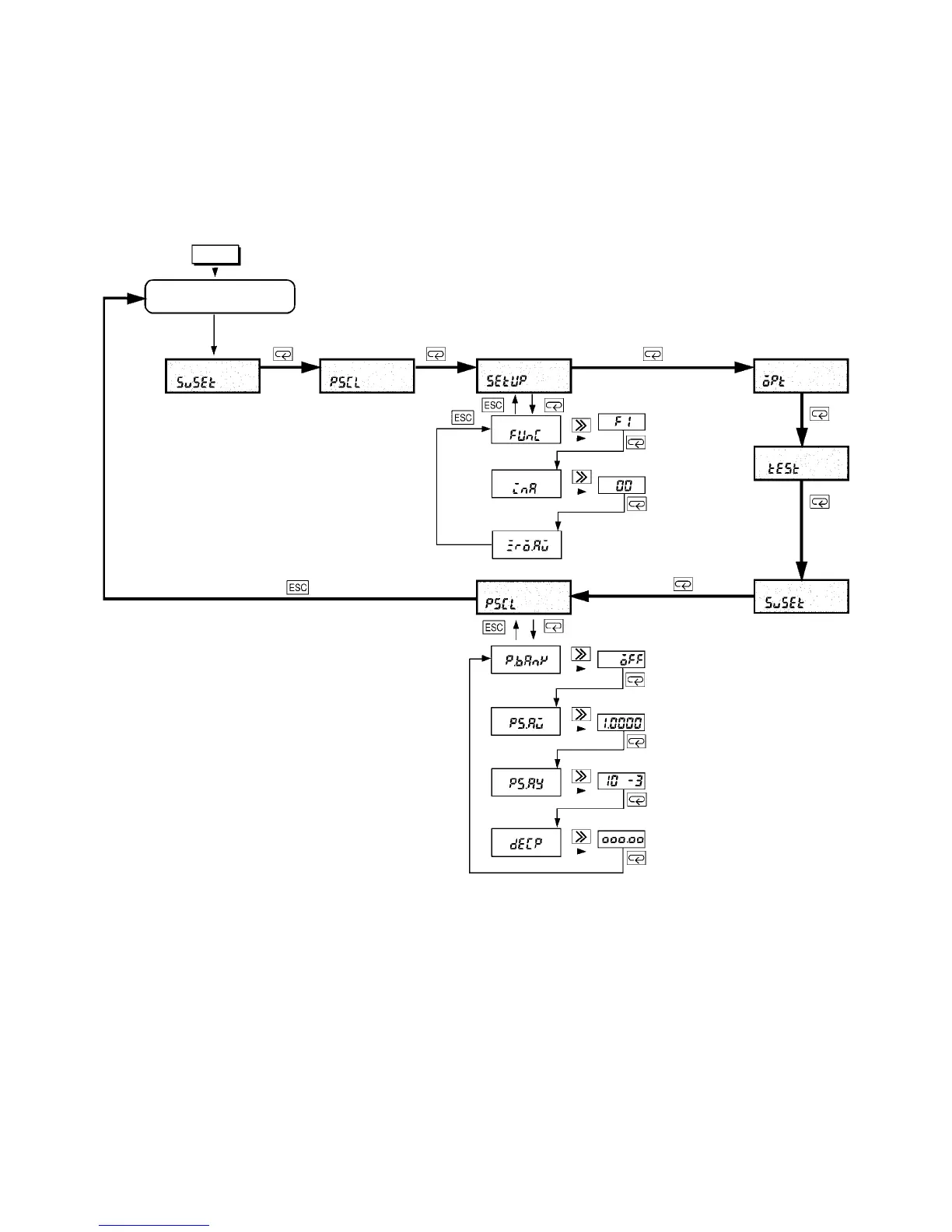

In the following example, with the K3NR, rotations (rpm) can be displayed using a rotary encoder that has 1,000
output pulses per revolution on condition that the prescaling bank is set to OFF, and the prescaling value is set to
1/1,000 = 0.001 = 1 x 10
–3
.
Power On
RUN mode
Press the Mode Key
for 1 second.
Set value menu
Prescaling menu Setup menu
Operating mode
Input A sensor
type
Set with the
Up Key.
Set with Shift
and Up Keys
Set with the
Up Key.
Set with Shift
and Up Keys
Set with Shift
and Up Keys
Set with the
Up Key.
Prescaling menu
Option menu
Output test
Set value menu
Note 1. If the operating mode setting is changed, all the other parameters are set to default values except those
for the communications and settings in protect mode. Therefore, set the operating mode first.
2. The displayed setting will be validated automatically if no change is made for five seconds and the next
parameter will be displayed.
