105

Appendix E

Setting Examples

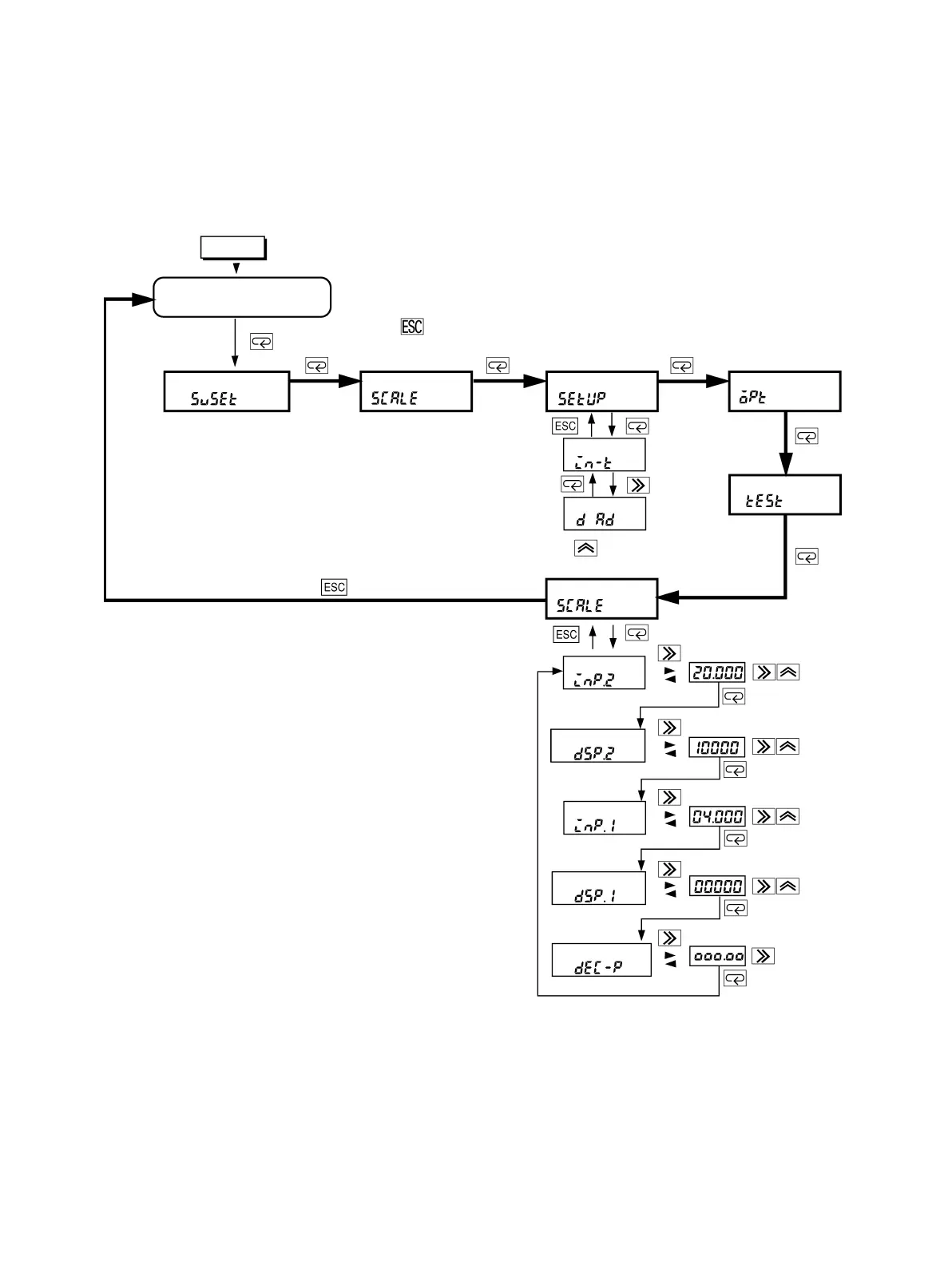

With the K3NX-ADjA, the input of 4 to 20 mA can be converted and displayed within a range of 0 to 100.00 as

shown below.

Setting value menu Scaling menu

Setup menu Option menu

Input range

Output test

Scaling menu

1 s

Set with:

Input value 2

Display value 2

Input value 1

Display value 1

Decimal position

Set with:

Power ON

RUN mode

(See note 1)

1 s

Set with:

Note 1. First set the input range because all the parameters are initialized when the input range settings are

changed.

2. If no operation is executed for five seconds after changing the settings, the set values will be validated

automatically and will be displayed.
