Omron NS5-SQ00 V2 Series User Manual

3-7 Installing the Video Input Unit
3-7-4 Connecting to Video Input Connectors
Use the following method to connect cameras to the Video Input Unit mounted to the PT.
Note The tensile load of the cable is 30 N maximum. Do not exceed maximum load
● Connecting to Video Input Connectors

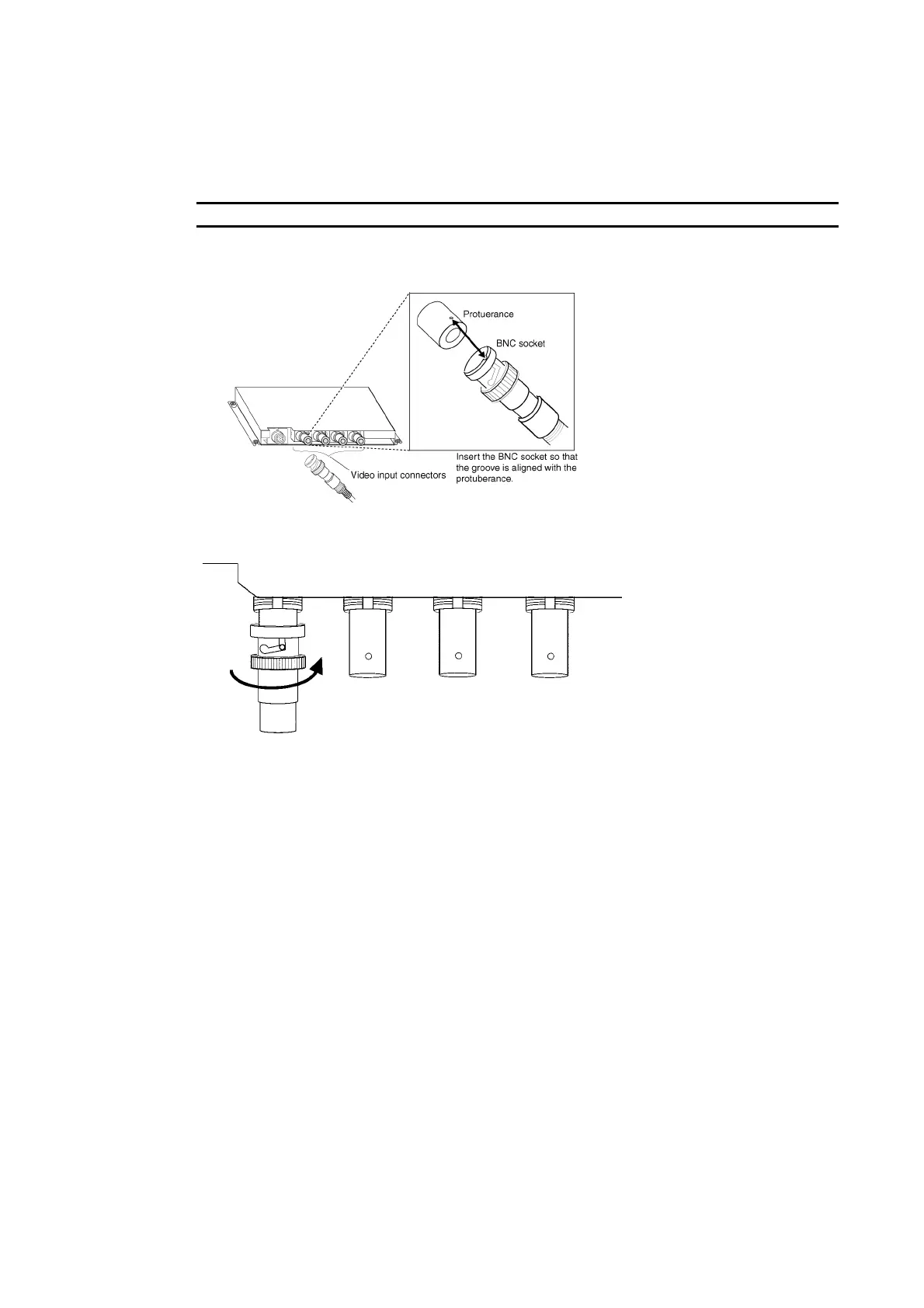

1. Insert the BNC socket on the camera’s video output cable into a video input connector.
2. After inserting the BNC socket, twist it clockwise until it locks into place.
Twist clockwise.
3-34

Omron NS5-SQ00 V2 Series Specifications

General

Display Size	5.7 inches
Resolution	320 x 240 pixels
Touchscreen Type	Analog Resistive
Backlight	LED
Brightness	300 cd/m²
Backlight Life	50, 000 hours
Power Supply	24 VDC
Operating Temperature	0 to 50 °C
Storage Temperature	-20 to 60 °C
Humidity	10 to 90% RH (non-condensing)
Display Type	TFT color LCD
Communication Ports	RS-232C, RS-422/485
Vibration Resistance	10 to 57 Hz, 0.075 mm amplitude, 57 to 150 Hz, 9.8 m/s²
Shock Resistance	147 m/s² (15 G)
Protection Rating	IP65
Weight	0.8 kg
