Omron NX1P2 series User Manual

5 Installation and Wiring
5 - 14
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)
We recommend using the following products to install the Unit on a DIN Track.
Not all of the combinations of the DIN Tracks and End Plates listed above are possible.
Confirm applicability of the combinations in the following table.
Also, use screws and washers of the following sizes to fix the DIN Tracks.
(a): Dimensions from the screw head to the fastening surface
If you use any DIN Track other than those listed in the table above, refer to the dimensions shown in
5-3-13 Assembled Appearance and Dimensions on page 5-35 and use proper screws and washers.

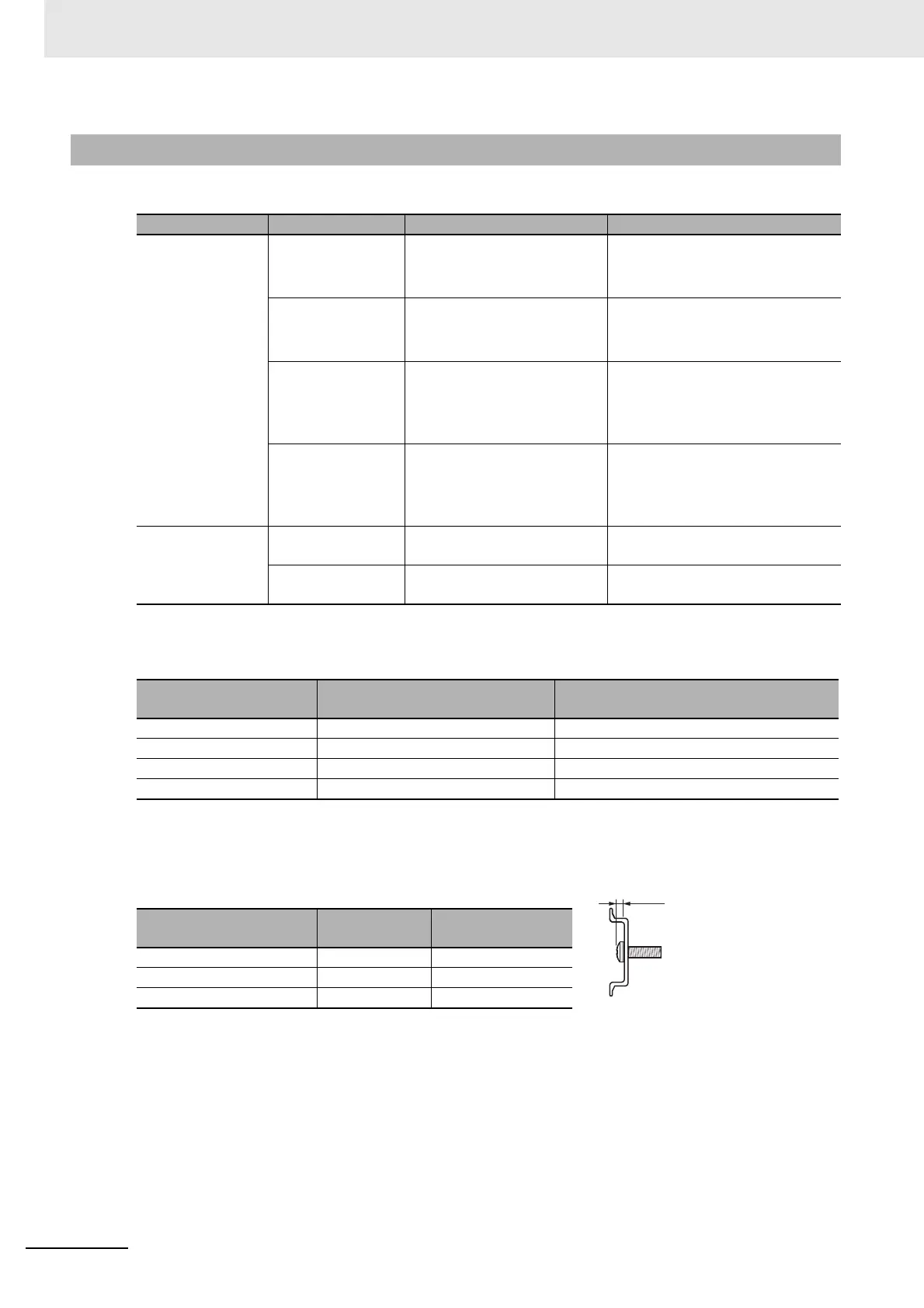

5-3-2 Preparations for Installation
Name Model Manufacturer Remarks
35-mm DIN Track PFP-50N OMRON Corporation • Length: 50 cm
• Material: Aluminum
• Surface treatment: Insulated
PFP-100N OMRON Corporation • Length: 100 cm
• Material: Aluminum
• Surface treatment: Insulated
NS 35/ 7,5 PERF Phoenix Contact • Length: 75.5, 95.5, 115.5, or 200
cm
• Material: Steel
• Surface treatment: Conductive
NS 35/ 15 PERF Phoenix Contact • Length: 75.5, 95.5, 115.5, or 200
cm
• Material: Steel
• Surface treatment: Conductive
End Plate PFP-M OMRON Corporation Two End Plates are required for
each CPU Rack.
CLIPFIX 35 Phoenix Contact Two End Plates are required for
each CPU Rack.
DIN Track model
PFP-M
(OMRON)
CLIPFIX 35
(Phoenix Contact)
PFP-50N Possible. Possible.
PFP-100N Possible. Possible.
NS 35/ 7,5 PERF Possible. Possible.
NS 35/ 15 PERF Not possible. Possible.
DIN Track model
Applicable
screw size
(a)
PFP-50N M4 4.1 mm max.
NS 35/ 7,5 PERF M6 4.6 mm max.
NS 35/ 15 PERF M6 10 mm max.
(a)
