3 Configuration Units
3 - 18
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)

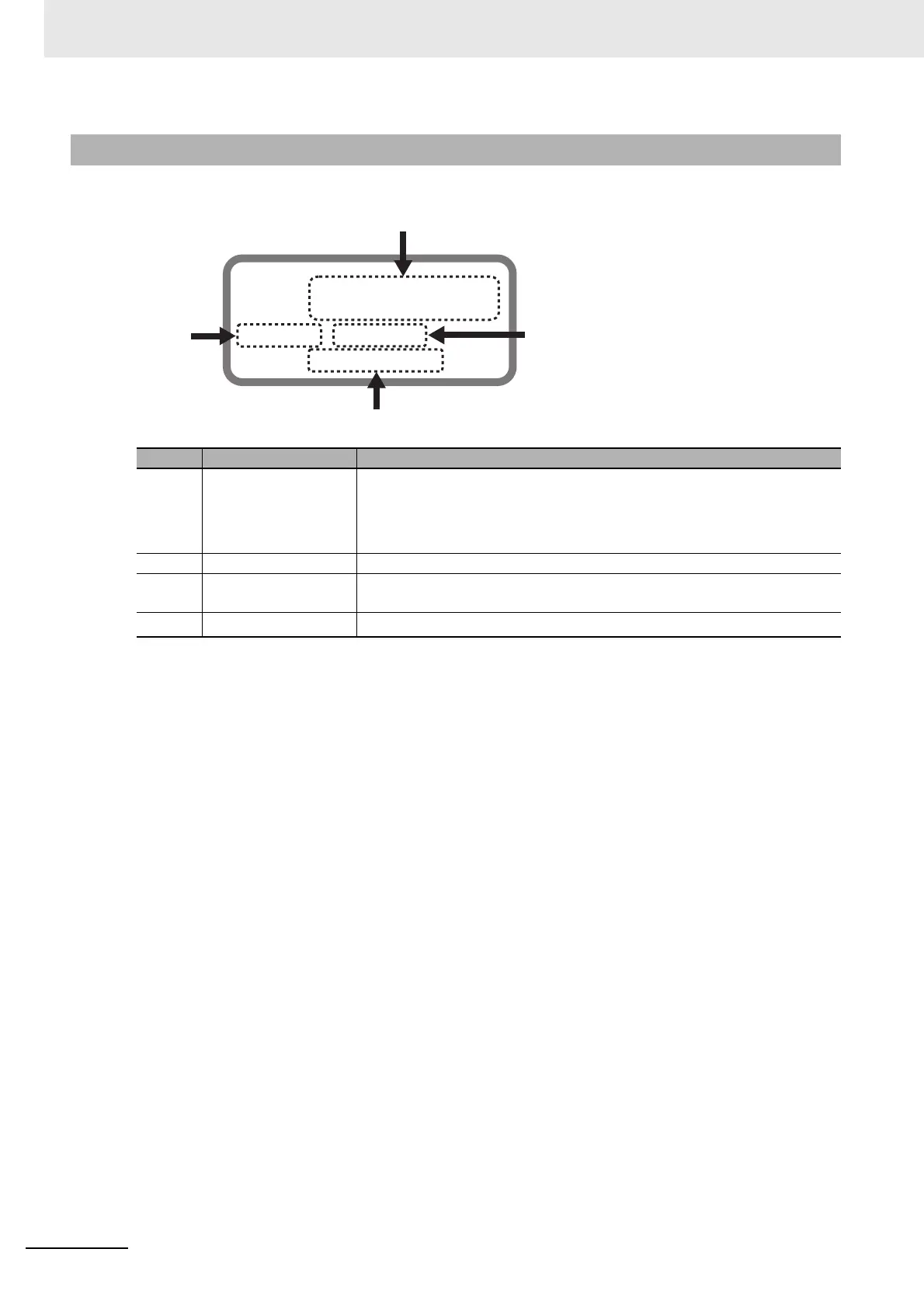

You can check the followings in the ID information indications on the left side of the CPU Unit.
3-1-6 ID Information Indication
Letter Name Function
A Lot number and serial
number
Shows the lot number and the serial number of the CPU Unit.
DDMYY: Lot number, : For use by OMRON, SSSS: Serial number
M is 1 to 9 for January to September, X for October, Y for November, and Z
for December.
B Unit version Shows the unit version of the CPU Unit.
C MAC addresses Shows the MAC addresses of the built-in EtherNet/IP port (port 1) and
built-in EtherCAT port (port 2) on the CPU Unit.
D Hardware revision
Shows the hardware revision of the CPU Unit.
*1
*1. The hardware revision is not displayed for the Unit that the hardware revision is in blank.
(A)
(B)
PORT1 :
PORT2 :
Ver.1. HW Rev.
LOT No. DDMYY xxxx
(C)
(D)
