Omron OMNUC G5 Series User Manual

3-78
3-4 Cable and Connector Specifications
OMNUC G5-series AC Servomotors and Servo Drives User’s Manual (with Built-in EtherCAT Communications)
3
Specifications

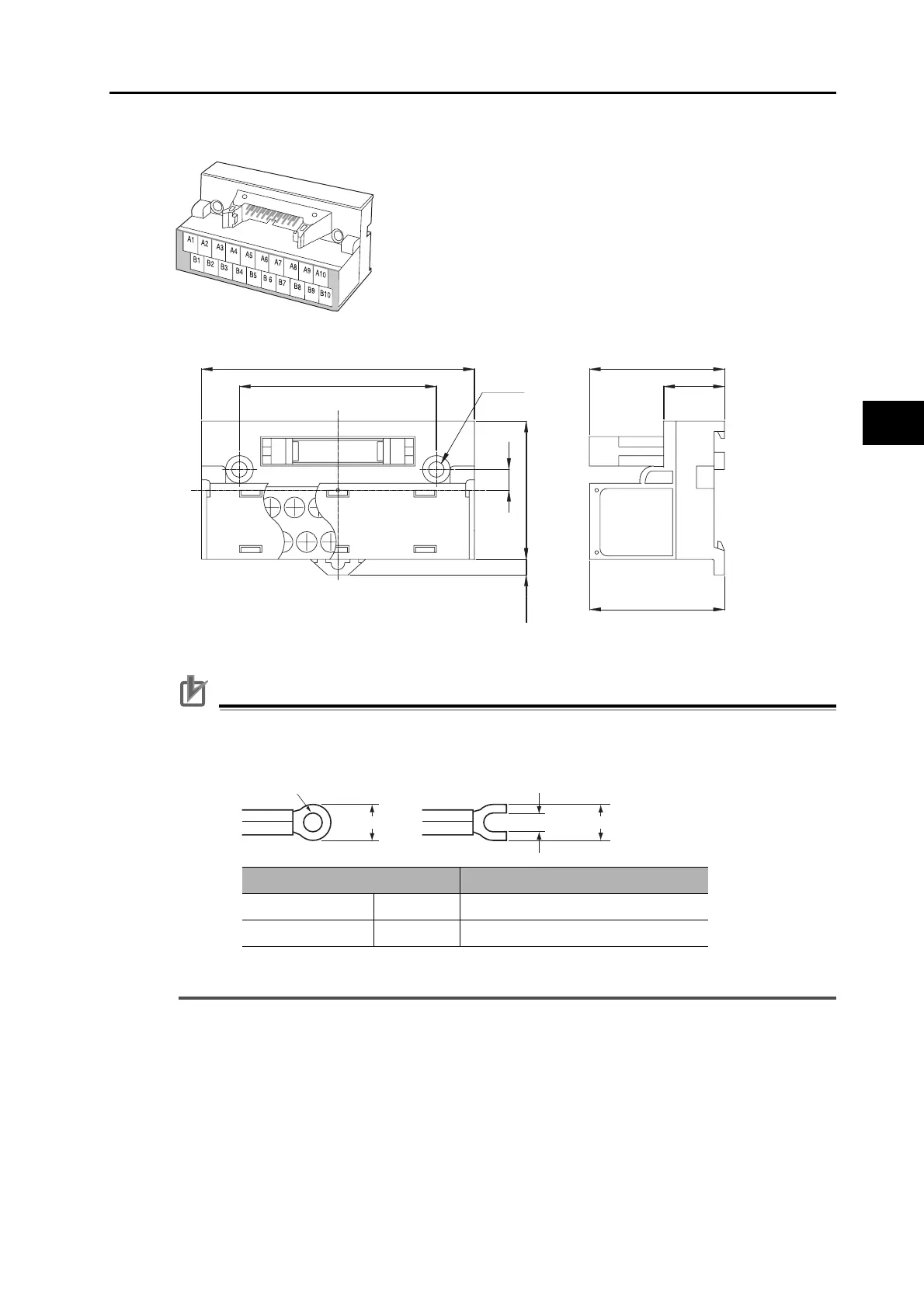

XW2D-20G6
Precautions for Correct Use
 When using crimp terminals, use crimp terminals with the following dimensions.
 When connecting wires and crimp terminals to a terminal block, tighten them to a tightening torque
of 0.7 N·m.
79 (39.1)
39
57 17.6
6
40(4.5)
2-
φ
4.5
Dimensions
φ3.2mm
3.2 mm
Round terminal Fork terminal
5.8 mm max.
5.8 mm max.
Applicable crimp terminals Applicable wires
Round terminals 1.25 to 3 AWG22 to 16 (0.30 to 1.25 mm
2
)
Fork terminals 1.25Y to 3 AWG22 to 16 (0.30 to 1.25mm
2
)
