4-8SectionOffset and Gain Adjustment
95

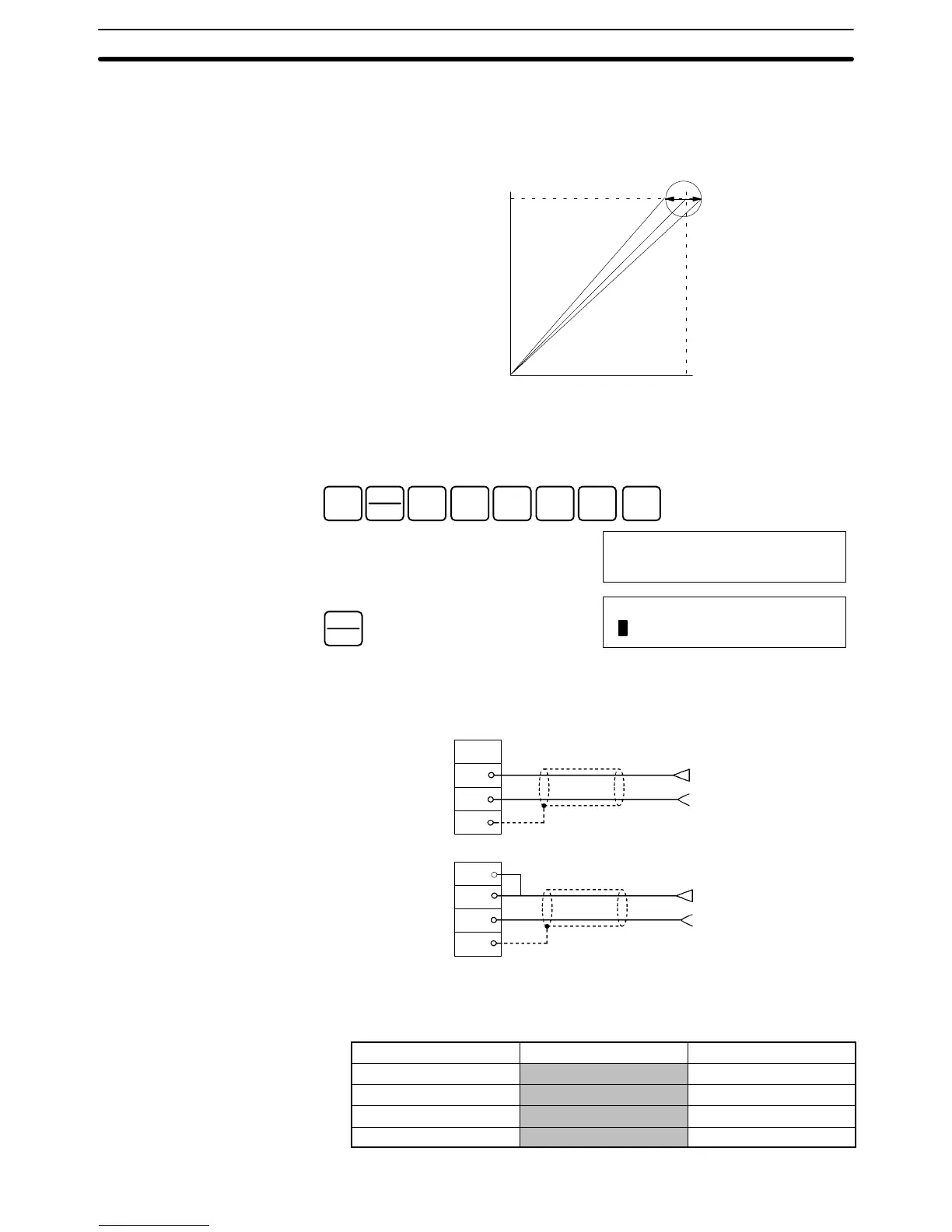

The procedure for adjusting the analog input gain is explained below. As shown
in the following diagram, the gain is adjusted by sampling inputs so that the con-
version value is maximized.
10 V0
0FA0
Input signal range:
0 to 10 V
Gain adjustment input range
The following example uses input number 1 adjustment for illustration. (The unit
number is 0.)
1, 2, 3... 1. Turn ON bit 01 (the Gain Bit) of IR word n+1. (Hold the ON status.)
SHIFT
CONT
#
1
B
0
A
1
B
0
A
1
B
MONTR
10101
^OFF
PLAY
SET
10101
ON
The analog input’s digital conversion values while the Gain Bit is ON will be
monitored in IR word n+8.
2. Check whether the input devices are connected.
A6
A7
A8
A9
A6
A7
A8
A9
+
–
+
–
Voltage input
Input 1
Current input
Input 1
3. Input the voltage or current so that the conversion value is maximized (0FA0
or 07D0). The following table shows the the gain adjustment voltages and
currents to be input according to the input signal range.
Input signal range Input voltage/current Input range
0 to 10 V 10 V 9.5 to 10.5 V
–10 to 10 V 10 V 9.0 to 11.0 V
1 to 5 V 5 V 4.8 to 5.2 V
4 to 20 mA 20 mA 19.2 to 20.8 mA
Gain Adjustment
To Next Page
