Omron SYSMAC C200H-DA004 User Manual

1-2SectionFeatures and Functions
2

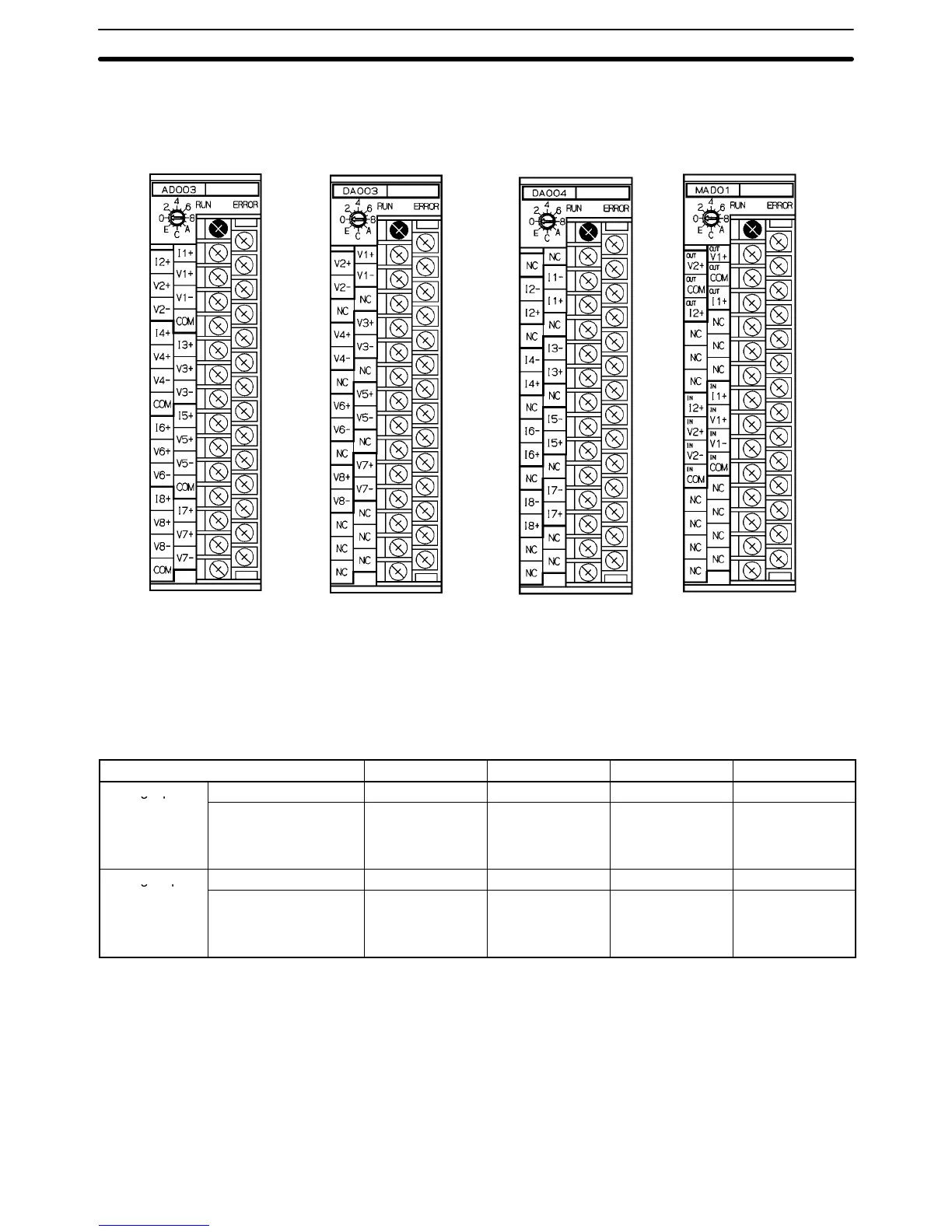

1-1 Features and Functions
C200H-AD003 C200H-DA003
C200H-DA004 C200H-MAD01
Analog Input Unit
Analog Output Units
Analog I/O Unit
These special-purpose Units enable highly accurate analog input and output at
a resolution of 4,000, for C200H, C200HS, and C200HX/HG/HE PC systems.
The C200H-AD003 Analog Input Unit converts analog sensor output to digital
format and transmits it to C200H, C200HS and C200HX/HG/HE PCs. The
C200H-DA003 and C200H-DA004 Analog Output Units convert C200H,
C200HS, and C200HX/HG/HE digital data to analog format for output. The
C200H-MAD01 Analog I/O Unit provides both input and output functions.
Item C200H-AD003 C200H-DA003 C200H-DA004 C200H-MAD01
Analog input
Maximum input points 8 --- --- 2
gp
Input signal range
(See note.)
–10 to 10 V
0 to 10 V
1 to 5 V
4 to 20 mA
--- --- –10 to 10 V
0 to 10 V
1 to 5 V
4 to 20 mA
Analog output
Minimum input points --- 8 8 2
gp
Output signal range
(See note.)
--- –10 to 10 V
0 to 10 V
1 to 5 V
4 to 20 mA –10 to 10 V
0 to 10 V
1 to 5 V
4 to 20 mA
Note The input and output signal ranges can be set individually for each input.
The Analog Input and Output Units provide high-speed data conversion at 1 ms
per I/O point. The sampling period can be further shortened by setting unused
inputs and outputs so their use is prohibited.
The input disconnection detection function can be used for analog inputs within
an input signal range of 1 to 5 V (4 to 20 mA). When this function is set for use,
any input under 0.3 V will be regarded as a disconnection. For details, refer to
2-5-5 Input Disconnection Detection Function and 4-5-5 Input Disconnection
Detection Function.
Units for C200H, C200HS,
and C200HX/HG/HE PCs
High-speed Conversion
Input Disconnection
Detection Function

Omron SYSMAC C200H-DA004 Specifications

General

Brand	Omron
Model	SYSMAC C200H-DA004
Category	I/O Systems
Language	English

Summary

OPERATION MANUAL

SYSMAC Analog I/O Units

Details on SYSMAC Analog I/O Units.

About this Manual

PRECAUTIONS

Safety Precautions

Critical safety warnings and measures for handling the equipment.

Application Precautions

Precautions for using the PC system and Analog I/O Units.

SECTION 1 System Design

Analog Input Functions

SECTION 2 C200H-AD003 Analog Input Unit

Input Specifications

Nomenclature and Functions

Wiring

IR and DM Areas

IR Area Allocation and Contents

Using the Functions

Mean Value Processing

Offset and Gain Adjustment

Adjustment Mode Operational Flow

Offset and Gain Adjustment Procedures

How to specify the output number for adjustment.

Input Offset and Gain Adjustment Procedures

Output Offset and Gain Adjustment Procedures

Error Processing

Troubleshooting Procedure

Procedure for troubleshooting Analog I/O Unit errors.

Errors Detected by Analog Input Unit

Details of errors detected by the Analog Input Unit and countermeasures.

Errors Detected by Analog Output Unit

Details of errors detected by the Analog Output Unit and countermeasures.

Errors Detected by Analog I/O Unit

Details of errors detected by the Analog I/O Unit and countermeasures.

SECTION 3 C200H-DA003 and C200H-DA004 Analog Output Units

Wiring

Instructions and examples for wiring Analog Output Units.

Output Specifications

SECTION 4 C200H-MAD01 Analog I/O Unit

Specifications

Specifications for the C200H-MAD01 Analog I/O Unit.

Nomenclature and Functions

Identifies unit parts and explains their functions.

Specifications

Analog Input Functions

Setting Inputs and Signal Ranges

Peak Value Function

Analog Output Functions

Setting Outputs and Signal Ranges

Output Setting Errors
