ZS4-4 Controller Hardware Overview
Refer to the Oracle ZFS Storage ZS4-4 data sheet at http://www.oracle.com/goto/zs4-4
for the most recent component specification and physical, electrical, and environmental
specifications.
For information about supported disks and capacities, refer to the Oracle Systems Handbook.
ZS4-4 Front and Rear Panel Components
Front Panel Components - The ZS4-4 controller drive slots and front panel components are
shown in the following figure.

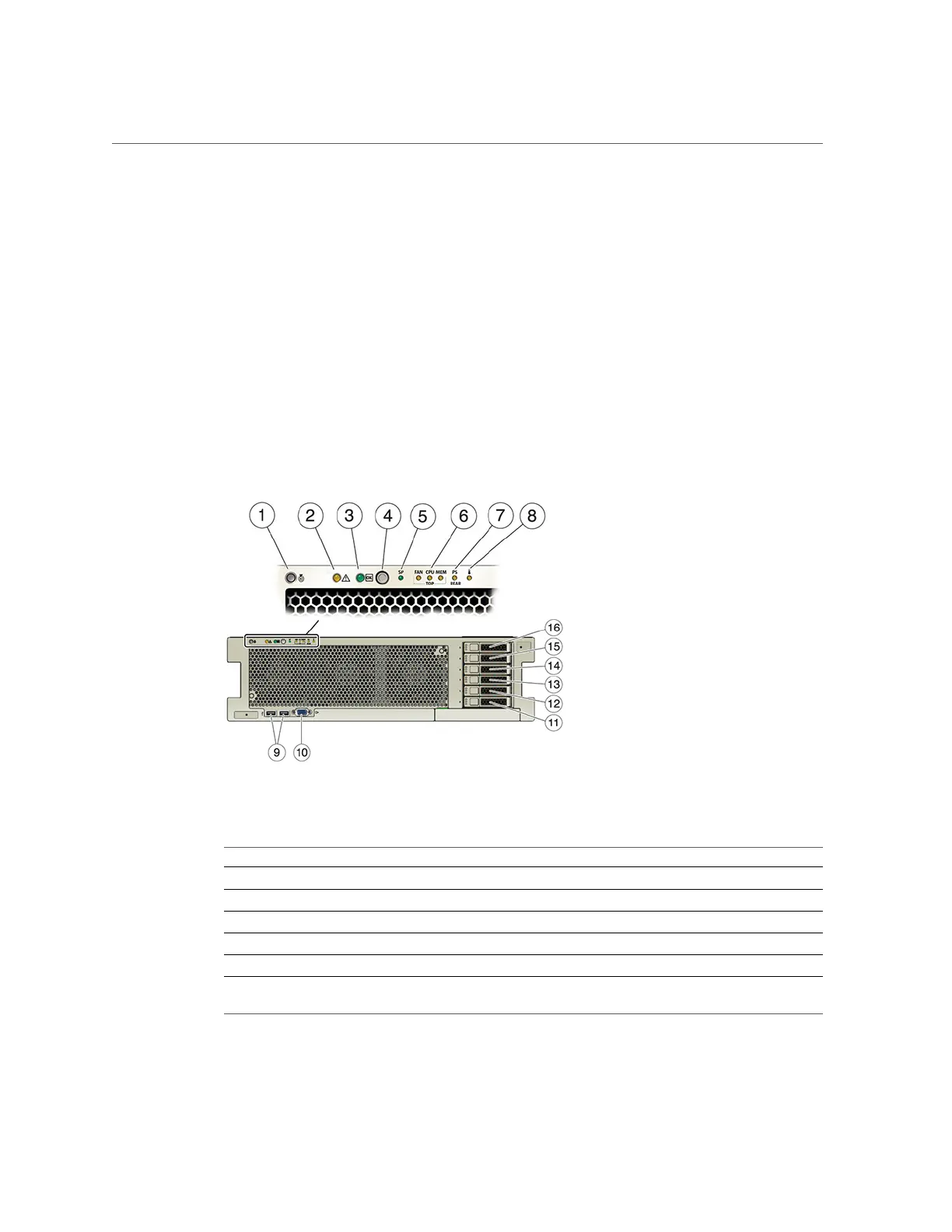

FIGURE 2
ZS4-4 Controller Front Panel
Figure Legend Figure Legend
1 Locator LED/button (white) 9 USB 2.0 connectors (2)
2 Service action required LED (amber) 10 DB-15 video port
3 Power/OK LED (green) 11 Boot drive 0 (required)
4 Power button 12 Boot drive 1 (required)
5 Service Processor (SP) OK (green)/Fault (amber) LED 13 Solid state drive 2 (optional)
6 Fan/CPU/Memory Service action required LED
(amber)
14 Solid state drive 3 (optional)
Servicing the ZS4-4 Controller 75
