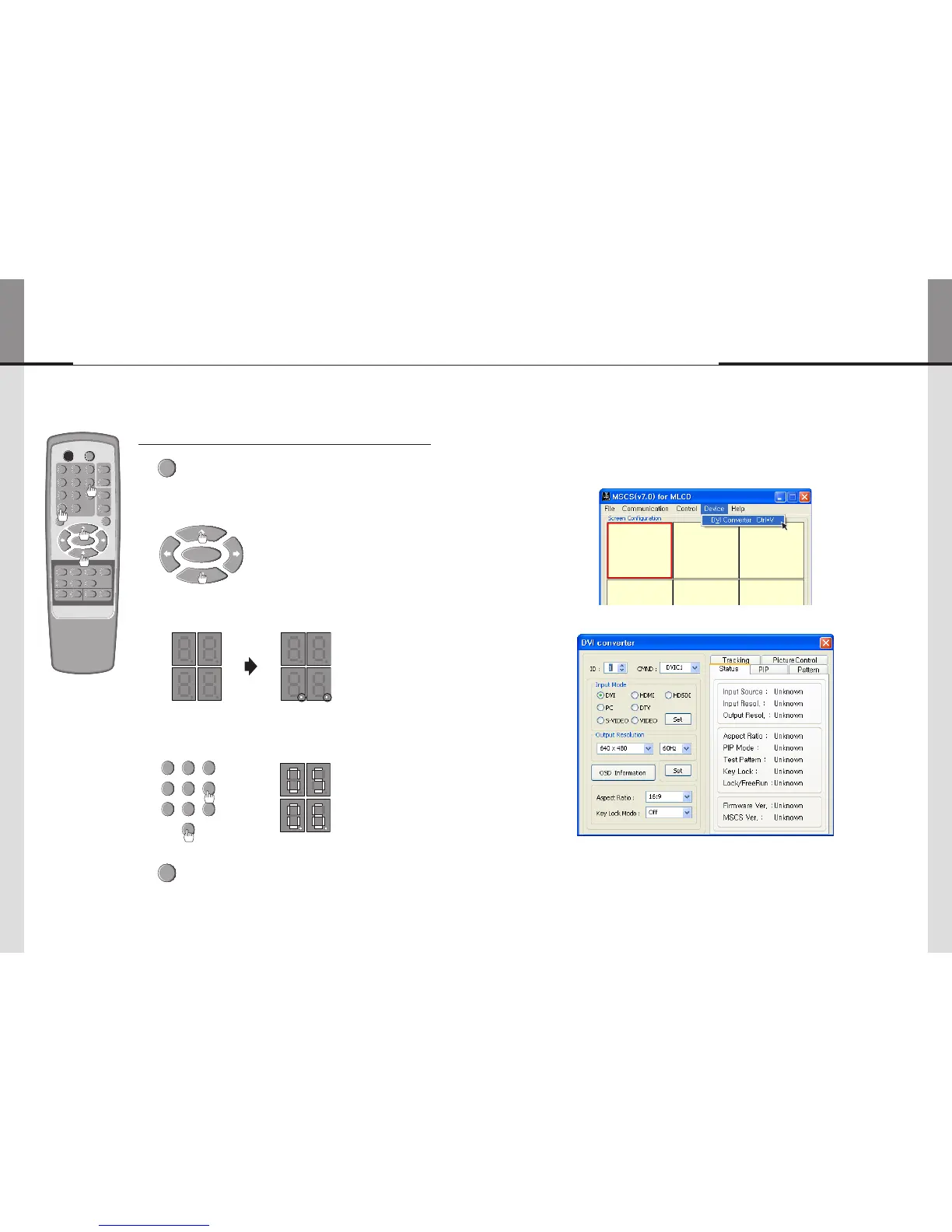

Vertical configuration
1. Press SET button.
SET
2. Press Up and Down buttons sequentially to enter the vertical
configuration mode.
INFO
3. When the 2 LEDs at lower right corner of each 7-segment of lower
line in the New MFC are turned on, the vertical configuration mode is
started.
HOR
VER
HOR
VER
4. Use the number buttons to set the numbers of MLCD sets in horizontal line.
- e.g. If you want to set 6 for vertical number, press "0" for ten's place and "6"
for one's place.
1 2 3
4 5 6
7 8
0
9
HOR
VER
5. Pres SET button to finish the vertical configuration mode.
SET
REMOTE CONTROL
ON OFF
INFO
A
SET
DVIC1 DVIC2 INFO AUTO
VIDEO S-VIDEO HDSDI
DVI PC DTV HDMI
B
BROADCAST
ID SETTING
ON
OFF
1 2 3
4 5 6
7 8
0
9
DVI 1
DVI 2
OUTPUT FUNCTION
DVI CONVERTER INPUT
6.2. DVI Converter
• To use DVI Converter, go to MSCS Menu → Device → DVI Converter or press "Ctrl+V" using
Keyboard.
DVI Converter Dialog
