Orion OLM-5510 User Manual

- 82 - - 83 -
ORION
Innitely Expandable
Model Name
OLM-4610 OLM-4650
Back Light Type CCFL CCFL
Power Supply AC100V ~ 240V (50/60Hz)
Power
Consumption
Max 200W 285W
Typical 190W 260W
Stand-By 3.0W 4.5W
Luminance of White 450 cd / m
2
700 cd / m
2
Contrast ratio (Dark Room) 4,500 : 1 3,000 : 1
Seam Gap (Multi Conguration) 7.3mm
Active Display Area (H X V) 1018.353 X 572.544mm
Aspect Ratio 16 : 9
Number of pixels 1366 (H) X 768 (V)
Pixel Pitch 0.7455 X 0.7455 mm
Display Colors 16.7M
Viewing Angle H : 178˚, V : 178˚
Response Time (G to G) 8msec (TYP.)
Environmental
condition
Temperature 5 ℃ ~ 35 ℃
Humidity 35% ~ 75%
Input Signal
PC / DVI Signal
(HDCP Available )
VGA, SVGA, XGA, SXGA, UXGA, WXGA,
480p,576p,720p(50/60),1080i(50/60),1080p(50/60)
HDCP Support Not Support
Video Signal NTSC, PAL, SECAM
Frequency H : 31.5 ~ 75kHz, V : 50 , 60 Hz
In/Output
Terminal
Input
DVI-D x 1, PC x 1, Video x 1, RS-232C x 1,
LAN x1, Service x 1
Output DVI-D x 1, PC x 1, Video x 1, RS-232C x 1
Lamp Life Tme Min 50.000Hrs (Ta : 25±2 ℃ )
Dimension (W X H X D) 1025.9 x 580 x 99.8mm
Weights 24Kg(±0.5Kg) 27Kg(±0.5Kg)
※Productdesignandspecificationcanbechangedforqualityimprovementwithoutpriornotice.
Model Name
OLM-4611 OLM-4651
Back Light Type LED
Power Supply AC100V ~ 240V (50/60Hz)
Power
Consumption
Max 145W 150W
Typical 140W 145W
Stand-By 3.0W
Luminance of White 450 cd / m
2
700 cd / m
2
Contrast ratio (Dark Room) 3,500 : 1
Seam Gap (Multi Conguration) 5.9mm
Active Display Area 1018.08(H) X 572.67(V) mm
Aspect Ratio 16 : 9
Number of pixels 1920 (H) X 1080 (V)
Pixel Pitch 0.52025 (H) X 0.53025 (V)mm
Display Colors 16.7M
Viewing Angle H : 178˚, V : 178˚
Response Time (G to G) 8msec (TYP.)
Environmental
condition
Temperature 5 ℃ ~ 35 ℃
Humidity 35% ~ 75%
Input Signal
PC / DVI Signal
(HDCP Available )
VGA, SVGA, XGA, SXGA, UXGA, WXGA,
480p,576p,720p(50/60),1080i(50/60),1080p(50/60)
Video Signal NTSC, PAL, SECAM
Frequency H : 31.5 ~ 75kHz, V : 50 , 60 Hz
In/Output
Terminal
Input
DVI-D x 1, PC x 1, Video x 1, RS-232C x 1,
LAN x1, Service x 1
Output DVI-D x 1, PC x 1, Video x 1, RS-232C x 1
Lamp Life Tme Min 50.000Hrs (Ta : 25±2 ℃ )
Dimension (W X H X D) 1023.98 x 578.57 x 98.8mm
Weights 25Kg(±0.5Kg)
※Productdesignandspecificationcanbechangedforqualityimprovementwithoutpriornotice.

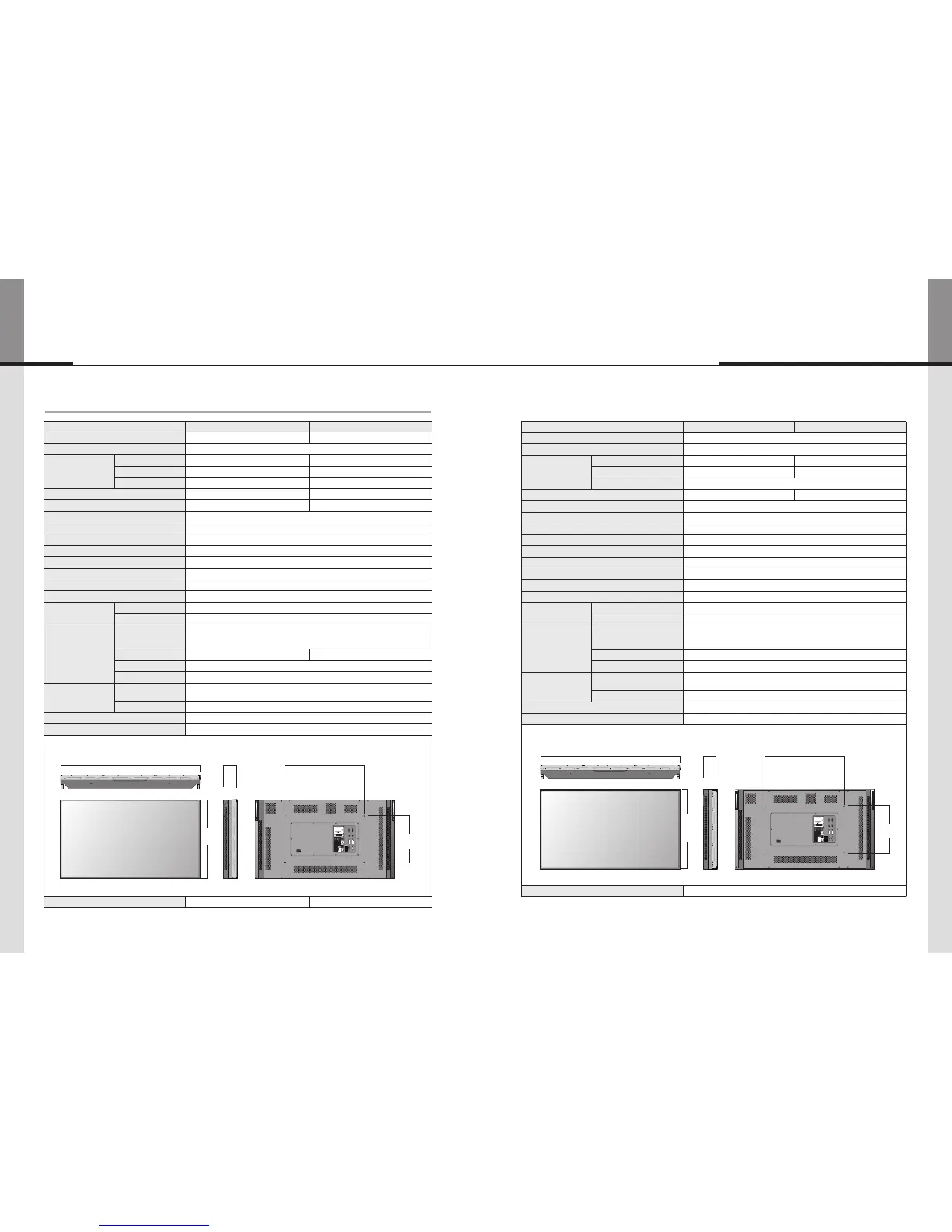

10. Specification
FAN STBPWR ON
VIDEO
IN OUT
DVI-D
IN OUT
RS-232C
IN OUT
PC
IN OUT
LAN
SVC
ID SELECT
CO., LTD.
Made in Korea
To prevent electric shock, Do not remove cover.
No user serviceable part inside Refer servicing
to qualified service personal.
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION
• Model Name : OLM-4610
• Voltage : AC~100 - 240V
• Current : Max. 3A
• Frequency : 50/60Hz
• Serial No :
MLCD
1025.9mm(±1.0)
99.8mm(±1.0)
580mm(±1.0)
580mm
(±1.0)
340mm
(±1.0)
FAN STBPWR ON
VIDEO
IN OUT
DVI-D
IN OUT
RS-232C
IN OUT
PC
IN OUT
LAN
SVC
ID SELECT
CO., LTD.
Made in Korea
To prevent electric shock, Do not remove cover.
No user serviceable part inside Refer servicing
to qualified service personal.
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION
• Model Name : OLM-4610
• Voltage : AC~100 - 240V
• Current : Max. 3A
• Frequency : 50/60Hz
• Serial No :
MLCD
1023.98mm(±1.0)
98.8mm(±1.0)
580mm(±1.0)
578.57mm
(±1.0)
340mm
(±1.0)
MLCD
