Orion OLM-5510 User Manual

- 86 - - 87 -
ORION
Innitely Expandable

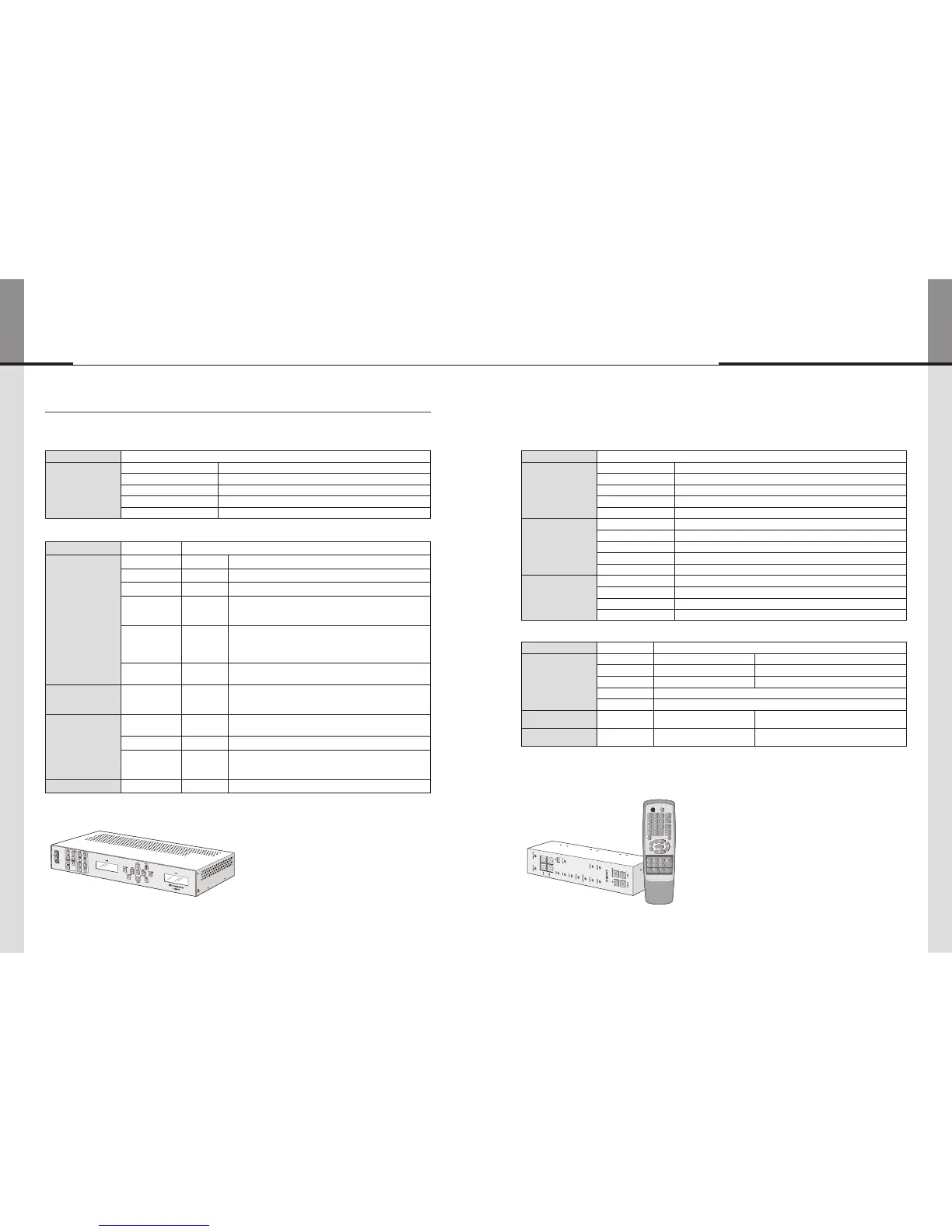

11. Option Specification
11.1. DVI Converter
Product Name Specication
DVI Converter
(ODC-10000)
Power supply 100 ~ 250V AC, 50/60Hz
Power consumption 40W (MAX)
Size 405mm(W) X 250mm(D) X 60mm(H)
Environmental Condition 0 ℃ ~ 40 ℃ , 20 ~80% RH
Weight 3Kg
Input/Output Specification
Terminal Name Terminal Specification
Video Input Singal
Composite Video BNC 1Pin NTSC, PAL, SECAM
S-Video DIN 4Pin NTSC, PAL, SECAM
Component Video BNC 3Pin 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
Analog RGB D-Sub 15Pin
VGA, SVGA, WVGA, XGA, SXGA, WXGA, UXGA
Horizontall Freq. : 15.5Khz ~ 75Khz
Vertical Freq. : 50/60Hz
DVI / HDMI
DVI-D 24Pin
/HDMI 29Pin
480p, 576p, 720p, 1080i, 1080p
VGA, SVGA, WVGA, XGA, SXGA, WXGA, UXGA
Horizontall Freq. : 15.5Khz ~ 75Khz
Vertical Freq. : 50/60Hz
SDI BNC 1Pin
SMPTE 259M-C, SMPTE 292M,
SMPTE 424M, SMPTE 425 (Level A & B)
Video Output Signal DVI DVI-D 24Pin
640X480-60/85, 800X600-50/60/85, 853X480-50/60, 1027X768-
60/85, 1280X1024-50/60, 1600X900-50/60, 1600X1200-50/60,
1706X960-60
Control Method
RS-232C
D-Sub 9Pin
(Female)
Baud Rate : 115200
Max ±15V
Ethernet RJ-45 TCP/IP
Key Pad
Input Souce Select Hot Key, Output Resolution Select Hot Key,
Navigation Key(OSD), Control Channel Select, Communication Method
Select.
Display C-LCD 2X16 Input Souce, Output Resolution Display
※ Specication can be changed without prior notice to improve product quality.
※ Ethernet communication is available when it is used with New MFC.
11.2. New MFC
Product Name Specication
Remote Controller
Name MLCD REMOTE CONTROL
Power 1.5V Battery(AAA) 2EA
Size 55(W) x 190(L) x 25(H) mm
Environmental Condition -10 ℃ ~ 40 ℃
Weight 130g
NEW MFC
Voltage +5~9V(DC), 1.25W (MAX)
Power Consumption 250mA(Max, +5~9V)
Size 58(W) x 216(L) x 46(H) mm
Environmental Condition 0 ℃ ~ 40 ℃ , 20 ~80% RH
Weight 480g
Adapter
Size 35(W) x 80(L) x 86(H) mm
Input 90~264V(47~63Hz)
Output 5V, 2000mA
Output Jack 2.1→(Internal diameter):Vcc, 5.5→(External diameter):GND
Input/Output Specification
NEW MFC Terminal Name Terminal Specification
Control Input
RS-232C D-Sub9Pin(Female) BaudRate:115200
Ethernet RJ-45 TCP/IP
USB TypeB USB2.0
IR Max15m,left/right45°(standard:3m)
KeyButton ControlModeSelect(IR/Ethernet/RS-232C/USB)
Control Output
RS-232C(4ea) D-Sub9Pin(Male)
BaudRate:115200
Max±15V
MLCD ID Setting
7-SegmentLED 1~99
MLCDHorizontalNumber,
VerticalNumber
- Minimum interval between button input: 0.6 second
※ Specication can be changed without prior notice to improve product quality.
REMOTE CONTROL
ON OFF
INFO
A
SET
DVIC1 DVIC2 INFO AUTO
VIDEO S-VIDEO HDSDI
DVI PC DTV HDMI
B
BROADCAST
ID SETTING
ON
OFF
1 2 3
4 5 6
7 8
0
9
DVI 1
DVI 2
OUTPUT FUNCTION
DVI CONVERTER INPUT
MLCD
