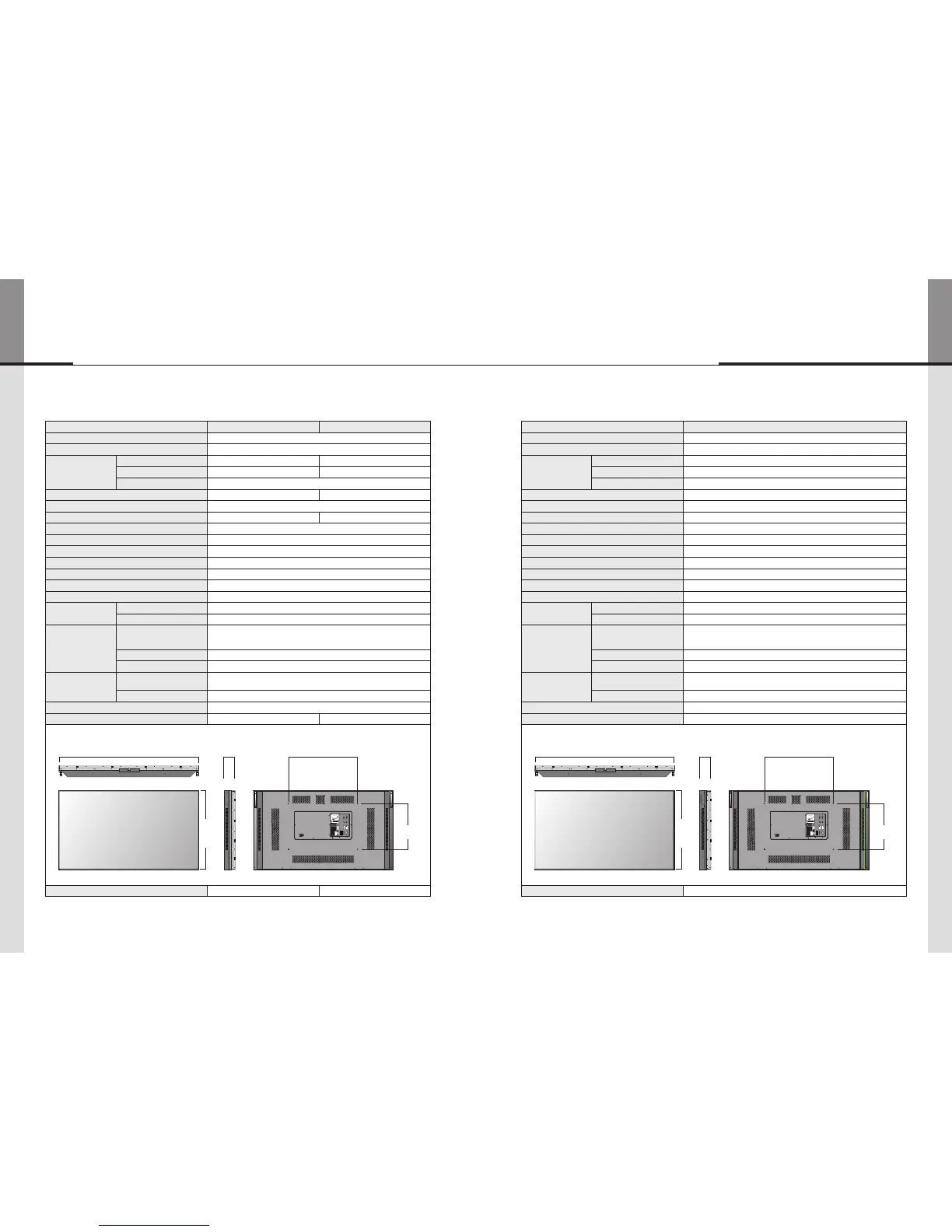

Orion OLM-5510 User Manual

- 84 - - 85 -
ORION
Innitely Expandable
Model Name
OLM-5520
Back Light Type LED
Power Supply AC100V ~ 240V (50/60Hz)
Power
Consumption
Max 187W
Typical 110W(Based on IEC 62087 Ed.2 measurement method.(On Mode)
Stand-By Max. 4.5W
Luminance of White 500 cd / m
2
Contrast ratio (Dark Room) 1,400 : 1
Seam Gap (Multi Conguration) 5.3mm (Bezel to Bezel)
Active Display Area 1209.6(H) X 680.4(V) mm
Aspect Ratio 16 : 9
Number of pixels 1920 (H) X 1080 (V)
Pixel Pitch 0.63 (H) X 0.63 (V)mm
Display Colors 1.06 Billion
Viewing Angle H : 178˚, V : 178˚
Response Time (G to G) 10msec (TYP.)
Environmental
condition
Temperature 0 ℃ ~ 40 ℃
Humidity 10% ~ 90%
Input Signal
PC / DVI Signal
(HDCP Available )
VGA, SVGA, XGA, SXGA, UXGA, WXGA,
480p,576p,720p(50/60),1080i(50/60),1080p(50/60)
Video Signal NTSC, PAL, SECAM
Frequency H : 31.5 ~ 75kHz, V : 50 , 60 Hz
In/Output
Terminal
Input
DVI-D x 1, PC x 1, Video x 1, RS-232C x 1,
LAN x1, Service x 1
Output DVI-D x 1, PC x 1, Video x 1, RS-232C x 1
Lamp Life Tme Min 50.000Hrs (Ta : 25±2 ℃ )
Dimension (W X H X D) 1215.6 x 686.4 x 97.9mm
Weights 31Kg(±0.5Kg)
※Productdesignandspecificationcanbechangedforqualityimprovementwithoutpriornotice.
Model Name
OLM-5510 OLM-5550
Back Light Type LED
Power Supply AC100V ~ 240V (50/60Hz)
Power
Consumption
Max 171W 235W
Typical 163W 205W
Stand-By 3.0W
Luminance of White 450 cd / m
2
700 cd / m
2
Contrast ratio (Dark Room) 3,500 : 1
Seam Gap (Multi Conguration) 5.9mm 5.7mm
Active Display Area 1209.6(H) X 680.4(V) mm
Aspect Ratio 16 : 9
Number of pixels 1920 (H) X 1080 (V)
Pixel Pitch 0.63 (H) X 0.63 (V)mm
Display Colors 16.7M
Viewing Angle H : 178˚, V : 178˚
Response Time (G to G) 8msec (TYP.)
Environmental
condition
Temperature 5 ℃ ~ 35 ℃
Humidity 35% ~ 75%
Input Signal
PC / DVI Signal
(HDCP Available )
VGA, SVGA, XGA, SXGA, UXGA, WXGA,
480p,576p,720p(50/60),1080i(50/60),1080p(50/60)
Video Signal NTSC, PAL, SECAM
Frequency H : 31.5 ~ 75kHz, V : 50 , 60 Hz
In/Output
Terminal
Input
DVI-D x 1, PC x 1, Video x 1, RS-232C x 1,
LAN x1, Service x 1
Output DVI-D x 1, PC x 1, Video x 1, RS-232C x 1
Lamp Life Tme Min 50.000Hrs (Ta : 25±2 ℃ )
Dimension (W X H X D) 1215.9 x 686.7 x 99.6mm 1215.7 x 686.5 x 98.7mm
Weights 31.2Kg(±0.5Kg) 31Kg(±0.5Kg)
※Productdesignandspecificationcanbechangedforqualityimprovementwithoutpriornotice.
FAN STB PWR ON
VIDEO
IN OUT
DVI-D
IN OUT
RS-232C
IN OUT
PC
IN OUT
LAN
SVC
ID SELECT
PDP CO., LTD.
Made in Korea
To prevent electric shock, Do not remove cover.
No user serviceable part inside Refer servicing
to qualified service personal.
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION
• Model Name : OLM-4610
• Voltage : AC~100 - 240V
• Current : Max. 3A
• Frequency : 50/60Hz
• Serial No :
MLCD
1215.6mm(±1.0)
97.9mm(±1.5)
600mm(±1.0)
686.4mm
(±1.0)
400mm
(±1.0)
FAN STB PWR ON
VIDEO
IN OUT
DVI-D
IN OUT
RS-232C
IN OUT
PC
IN OUT
LAN
SVC
ID SELECT
PDP CO., LTD.
Made in Korea
To prevent electric shock, Do not remove cover.
No user serviceable part inside Refer servicing
to qualified service personal.
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION
• Model Name : OLM-4610
• Voltage : AC~100 - 240V
• Current : Max. 3A
• Frequency : 50/60Hz
• Serial No :
MLCD
1215.9mm(±1.0)/1215.7mm(±1.0)
99.6mm(±1.5)/
98.7mm(±1.5)
600mm(±1.0)
686.7mm
(±1.0)/
686.5mm
(±1.0)
400mm
(±1.0)
