- 80 - - 81 -
ORION
Innitely Expandable

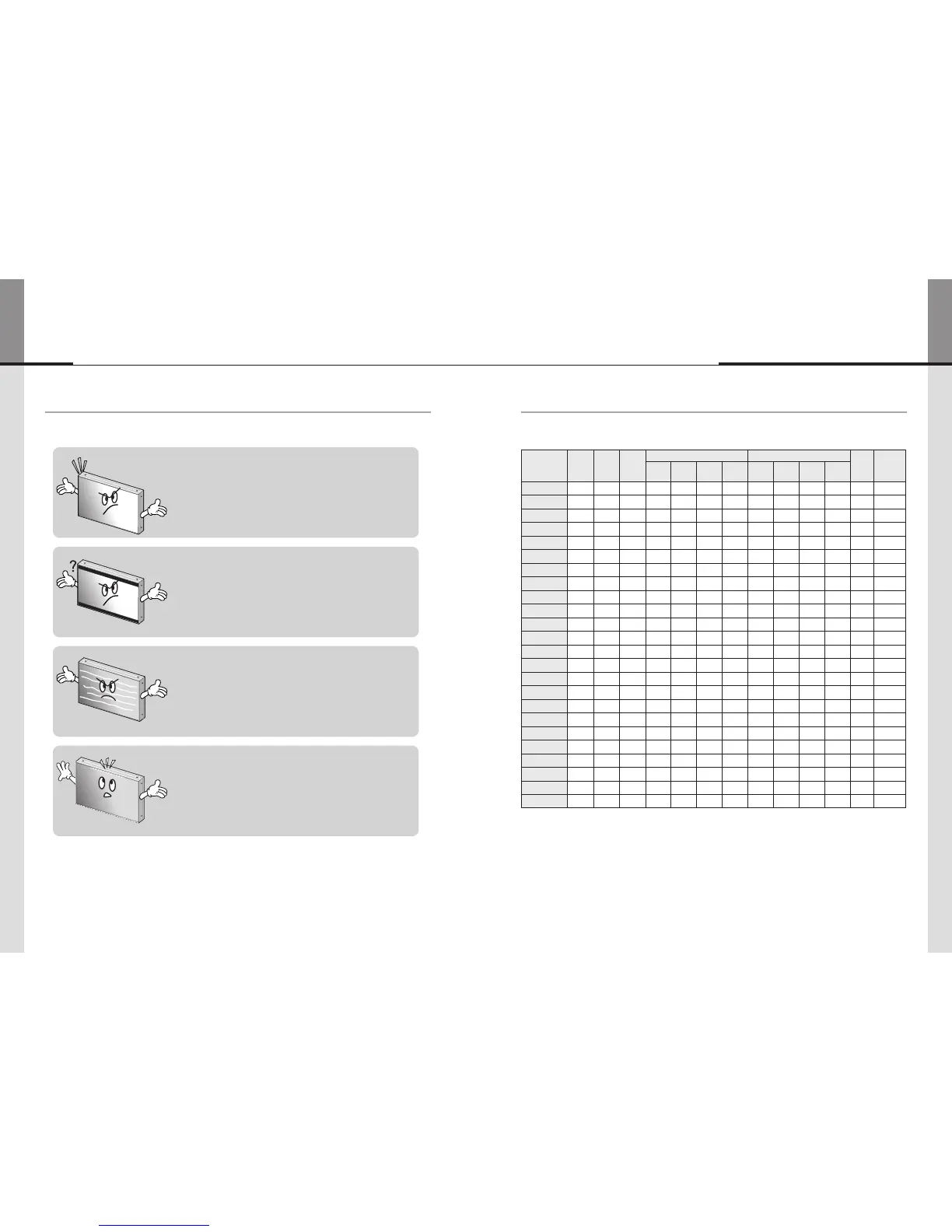

8. Before calling for service
▶
"Tick" sound from the main body.
- If there is no problem with the screen or sound, the "tick" sound
is likely to result from the cabinet lightly shrinking with the change
of room temperature. The sound does not affect product’s
performance.
▶
No image at upper and lower part of the screen.
- As for a screen which is over 16:9 in width (such as cinema-sized
one), no image may be displayed at upper and bottom part of the
screen.
▶
Speckles or white lines on the screen
- Check whether the problem is caused by vehicle, streetcar, high-
voltage cable or neon sign, which emitting interference wave or
electromagnetic induction. Avoid any interfering object.
▶
Light leakage can be found at the edge areas around the
screen.
- If the light leakage is not detected at 1m from the screen, the panel
is considered as no defect.(SAMSUNG LCD applies the same
inspection standard)
- To minimize the light leakage, the MLCD sets should be installed with
high accuracy in horizontal and vertical position.
• Before calling for any repair, check the following and then refer to a near A/S center. • DTV signal(EDTV, HDTV) is not supported in PC Input.
9. Applicable signals (DVI, PC)
Resolution
V-Freq
(Hz)
H-Freq
(KHz)
Pixel
Clock
(MHz)
Horizontal (Pixels) Vertical (Lines)
Pol.
(H/V)
Standard
Type
Total
Addr.
Width
Sync.
Width
Back
Porch
Total
Addr.
Width
Sync.
Width
Back
Porch
640*480*60
60 31.469 25.175 800 640 96 40 525 480 2 25 -/- DMT
800*600*50
50 30.998 30.750 992 800 72 96 621 600 4 14 +/+ CVT
800*600*60
60 37.879 40.000 1056 800 128 88 628 600 4 23 +/+ DMT
1024*768*60
60 48.363 65.000 1344 1024 136 160 806 768 6 29 -/+ DMT
1280*768*60
60 47.776 79.500 1664 1280 128 192 798 768 7 20 -/+ CVT
1280*960*60
60 60.000 108.000 1800 1280 112 312 1000 960 3 36 +/+ CVT
1280*1024*50
50 52.679 88.500 1680 1280 128 200 1057 1024 7 23 +/+ CVT
1280*1024*60
60 63.981 108.000 1688 1280 112 248 1066 1024 3 38 +/+ DMT
1360*768*50
50 39.564 69.000 1744 1360 136 192 793 768 5 17 +/+ CVT
1360*768*60
60 47.712 85.5000 1792 1360 112 256 795 768 6 18 +/+ DMT
1366*768*60
60 50.000 80.000 1600 1366 128 64 838 768 5 22 -/+ ORION(46")
1400*1050*60
60 65.317 121.750 1864 1400 144 232 1089 1050 4 32 -/+ CVT
1600*900*50
50 46.394 96.500 2080 1600 160 240 929 900 5 21 -/+ CVT
1600*900*60
60 55.990 118.250 2112 1600 168 256 934 900 5 26 -/+ CVT
1600*1200*50
50 61.795 131.500 2128 1600 168 264 1238 1200 4 31 +/+ CVT
1600*1200*60
60 75.000 162.000 2160 1600 192 304 1250 1200 3 46 +/+ DMT
480p
60 31.469 27.000 858 720 62 62 525 480 6 30 +/+ EDTV
576p
50 31.250 27.000 864 720 64 68 625 576 5 39 +/+ EDTV
720p50
50 37.500 74.250 1980 1280 80 220 750 720 5 20 +/+ HDTV
750p60
60 45.000 74.250 1650 1280 80 220 750 720 5 20 +/+ HDTV
1080i50
50 28.125 74.250 2640 1920 88 148 1125 1080 10 30 +/+ HDTV
1080i60
60 33.750 74.250 2200 1920 88 148 1120 1080 10 25 +/+ HDTV
1080p50
50 56.250 148.500 2640 1920 88 148 1125 1080 5 36 -/- HDTV
1080p60
60 67.500 148.500 2200 1920 88 148 1125 1080 5 36 -/- HDTV
MLCD
