8. Accessing the MAIN Menu
The MAIN Menu allows the user to adjust and calibrate the Charge Controller for maximum perfor-
mance. From the STATUS screen, press the  rst soft key on the left to open the MAIN Menu screen.
Press the <GO> soft key after aligning the arrow in
front of the selected menu choice.
Pressing the <EXIT> soft key in the MAIN Menu
returns to the STATUS screen.
From the MAIN Menu, a user can choose among the following Charge Controller functions by align-
ing the arrow:
• Charger—CHARGER SETUP
- Adjusts the Current Limit, Absorb, and Float recharging voltage set points
• Aux—AUX OUTPUT CONTROL
- Secondary control circuit for a vent fan, error alarm, and other system-related additions
• Light—BACKLIGHT CONTROL
- Adjusts the backlighting of LCD screen and soft key buttons
• EQ—BATTERY EQUALIZE
- Activates battery equalization recharging (manually or automatically)
• Misc—MISCELLANEOUS
- Additional settings and service information
• Advanced —ADVANCE MENU
- Optimizing/ ne-tuning the Charge Controller (these are advanced Menus that should be left
alone until the user has a good working knowledge of the Charge Controller and its operations)
• Logging—DATA LOGGING
- Displays recorded power production information
• STATS—Statistics
- Displays recorded peak system information and cumulative kilowatt hours and amp hours
Charger Aux Light
EQ Misc Advanced
Logging Stats
EXIT GO

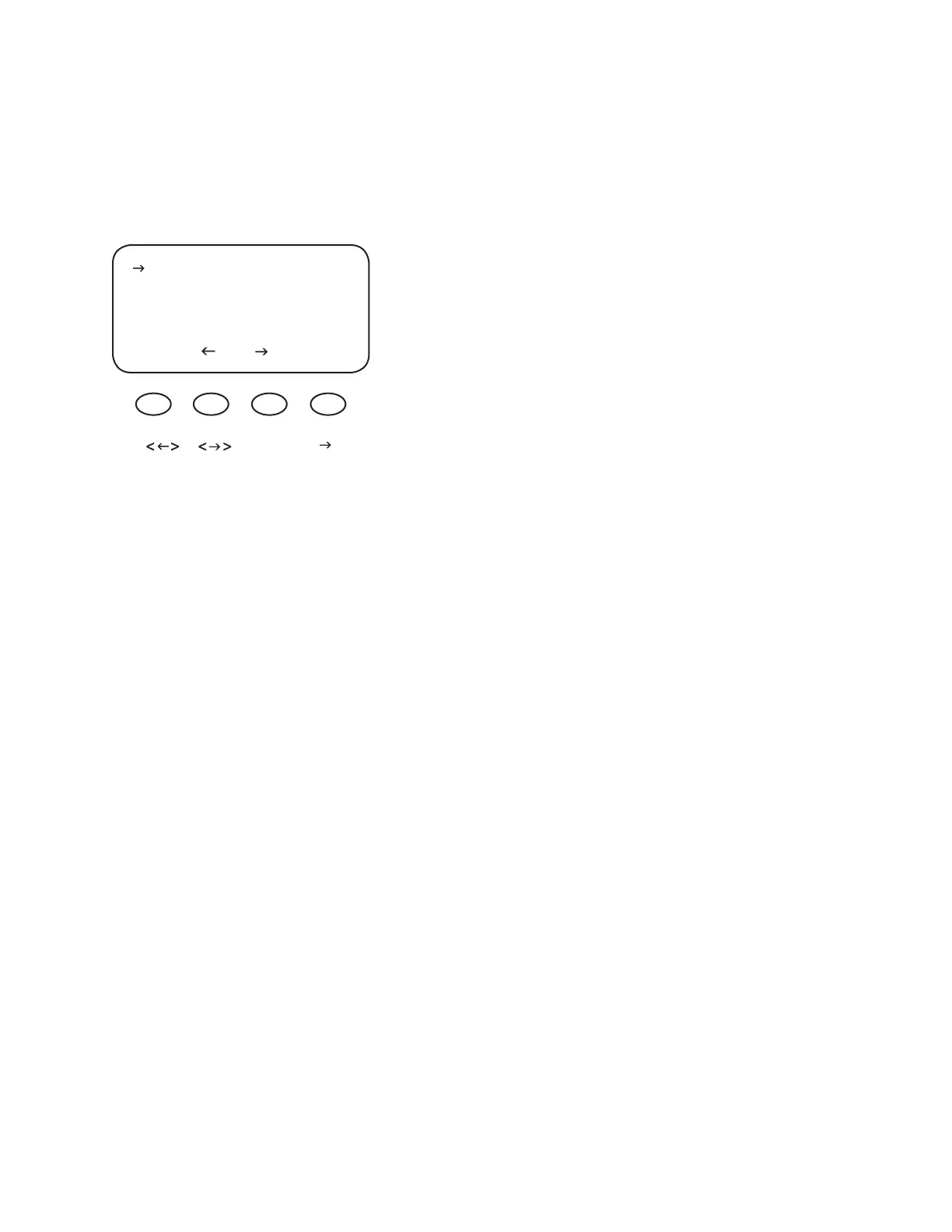

Press or to move the " “ to
the left of the desired screen. The arrow
allows access to any screen to its right.
