Outback Power Systems FLEXmax 60 User Manual

25

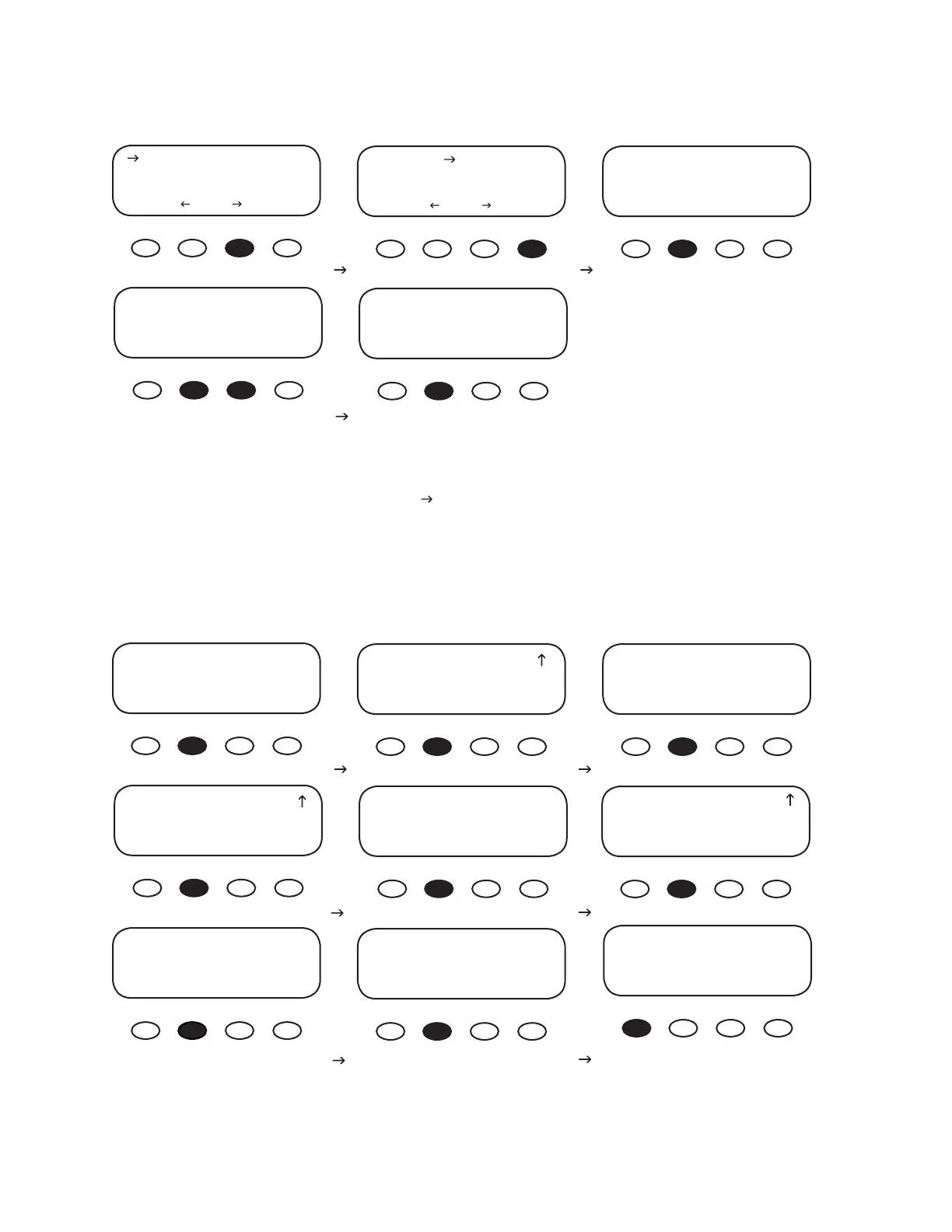

AUX MODE Menu Path
To access the AUX Output Menu:
• Press the  rst soft key once from the STATUS Menu to open the MAIN Menu.
• Press either of the arrow soft keys until the “ ” is to the left of Aux.
• Press the <GO> soft key. If more than ten minutes have passed since any activity, the PASSWORD
screen becomes active, requiring the user to input the 141 PASSWORD and press < ENTER>.
• Pressing the <NEXT> soft key scrolls through the AUX functions.
•
The most commonly used AUX modes are Vent Fan, Low Battery Disconnect and Diversion.
Charger Aux Light
EQ Misc Advance
Logging Stats
EXIT GO
Charger Aux Light
EQ Misc Advance
Logging Stats
EXIT GO
AUX MODE
Vent Fan
Output: Off Off
EXIT NEXT SET MODE
PASSWORD
***150***
ENTER - +
AUX MODE
Vent Fan
Output: Off Off
EXIT NEXT SET MODE
AUX MODE
Remote
Output: Off Off
EXIT NEXT SET MODE
AUX MODE
Vent Fan
Output: Off Off
EXIT NEXT SET MODE
AUX MODE
PV Trigger
Output: Off Off
EXIT NEXT SET MODE
AUX MODE
ERROR OUTPUT
Output: Off Off
EXIT NEXT SET MODE
AUX MODE
Night Light
Output: Off Off
EXIT NEXT SET MODE
AUX MODE
Float
Output: Off Off
EXIT NEXT SET MODE
AUX MODE
Diversion: Relay
Output: Off Off
EXIT NEXT SET MODE
AUX MODE
Diversion: Solid St
Output: Off Off
EXIT NEXT SET MODE
AUX MODE
Low Batt Disconnect
Output: Off Off
EXIT NEXT SET MODE
