68

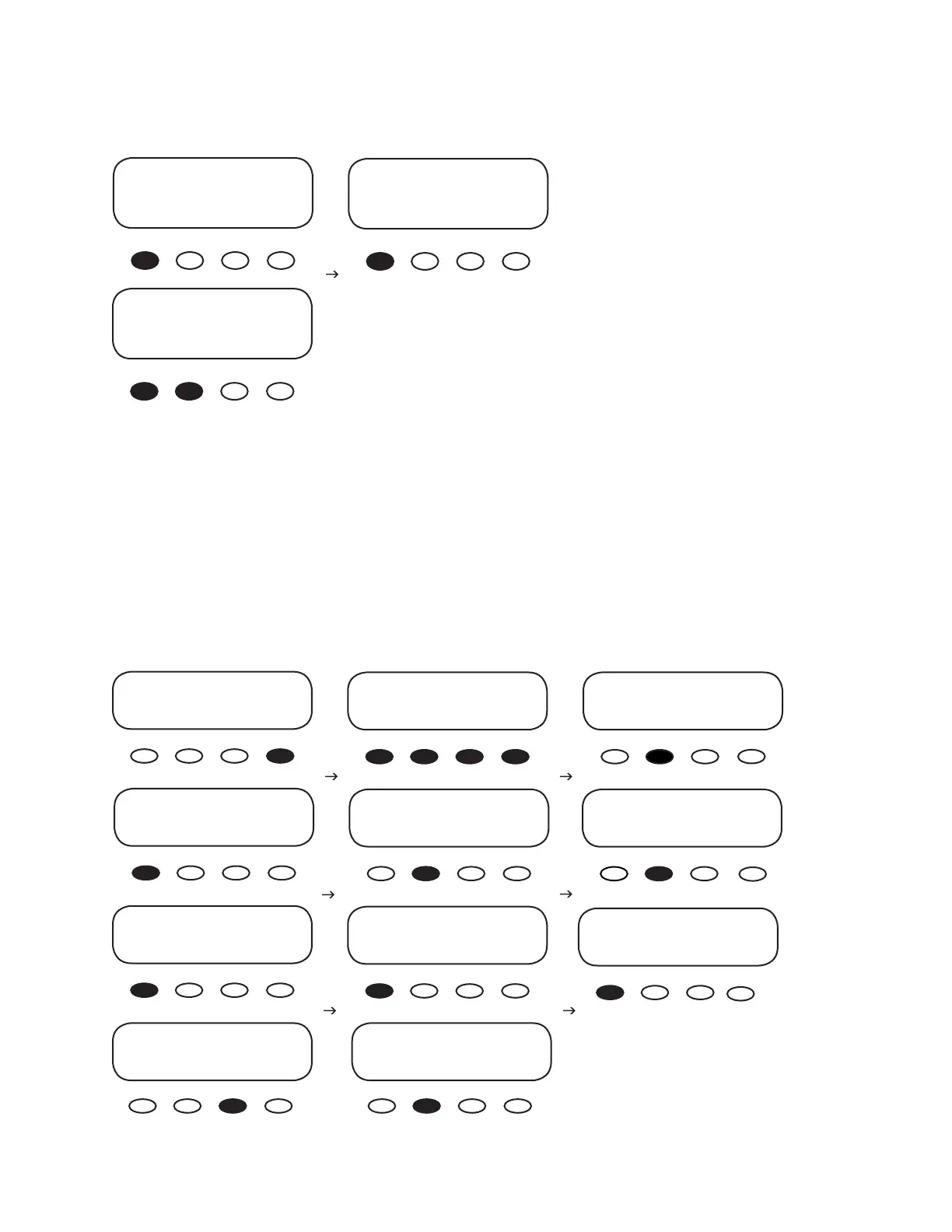

MATE-Displayed Charge Controller STATUS SETPT (SET POINT) Screen
Press the  rst two soft keys simultaneously
to return to the MAIN Menu.
CC SETP(OINT) Screens
• Absorb: displays the voltage that initiates and maintains the Absorb cycle
• Float: displays the voltage that begins the Float cycle and is maintained during this cycle
STATUS/CC/SETPT---------P00
Absorb 28.8 VDC
DOWN STATUS PORT
STATUS/CC/SETPT---------P00
Float 27.2 VDC
DOWN UP TOP PORT
STATUS/CC/METER------
end of setpoint
menu
UP TOP STATUS
MATE-Displayed Charge Controller Advanced Screens
The Charge Controller Advanced Screens displayed on the optional OutBack MATE include CHGR
(CHARGER), CCADV (ADVANCED), EQ, AND AUX. The Advanced screens allow the user to change various
values and set points.
MAIN------------------------------
12:00:30P
SUM STATUS SETUP ADV
ADV/SETTINGS/WARNING
changes made could adversely
effect system performance
ADV/PASSWORD-------------
enter the password
132
ENTER INC DEC EXIT
ADV/PASSWORD-------------
enter the password
141
ENTER INC DEC EXIT
ADV------------------------------
choose device:
FX CC DC MATE
ADV/CC/PAGE 1 ----------------
choose category:
ADV CHGR CCADV PG2
ADV/CC/CHGR--------------P01
output current 80.0A
limit
DOWN INC DEC PORT
ADV/CC/CHGR--------------P01
absorb voltage 14.4V
DOWN INC DEC PORT
ADV/CC/CHGR--------------P01
fl oat voltage 13.6V
DOWN INC DEC PORT
ADV/CC/CHGR------------------
end of charger menu
TOP ADV MAIN
ADV------------------------------
choose device:
FX CC DC MATE
