Outback Power Systems FLEXmax 60 User Manual

62
Figure 7 12V Battery System
E ciency Curve
Figure 8 24V Battery System
E ciency Curve
Figure 9 48V Battery System
E ciency Curve

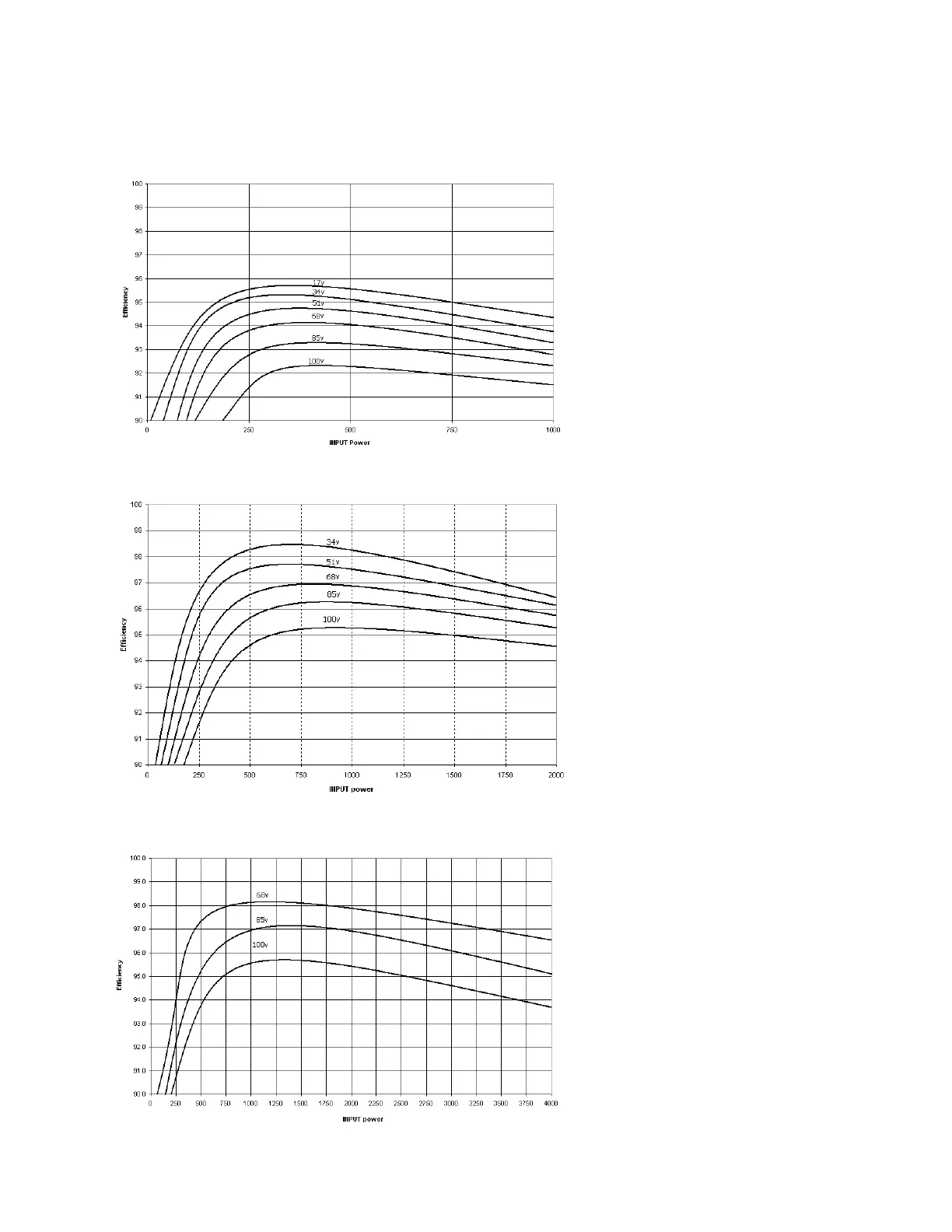

21. Charge Controller EFFICIENCY vs. INPUT POWER GRAPH
Charge Controller E ciency vs Input Power
INPUT= 17V, 34V, 51V, 68V, 85V, 100 V OUTPUT = 12V Nominal
Charge Controller E ciency vs Input Power
INPUT= 34V, 51V, 68V, 85V, 100 V OUTPUT = 24V Nominal
Charge Controller E ciency vs Input Power
INPUT= 68V, 85V, 100 V OUTPUT = 48V Nominal
