8. Accessing the MAIN Menu
The MAIN Menu allows the user to adjust and calibrate the FLEXmax 80 for maximum performance.
From the STATUS screen, press the rst soft key on the left to open the MAIN Menu screen.

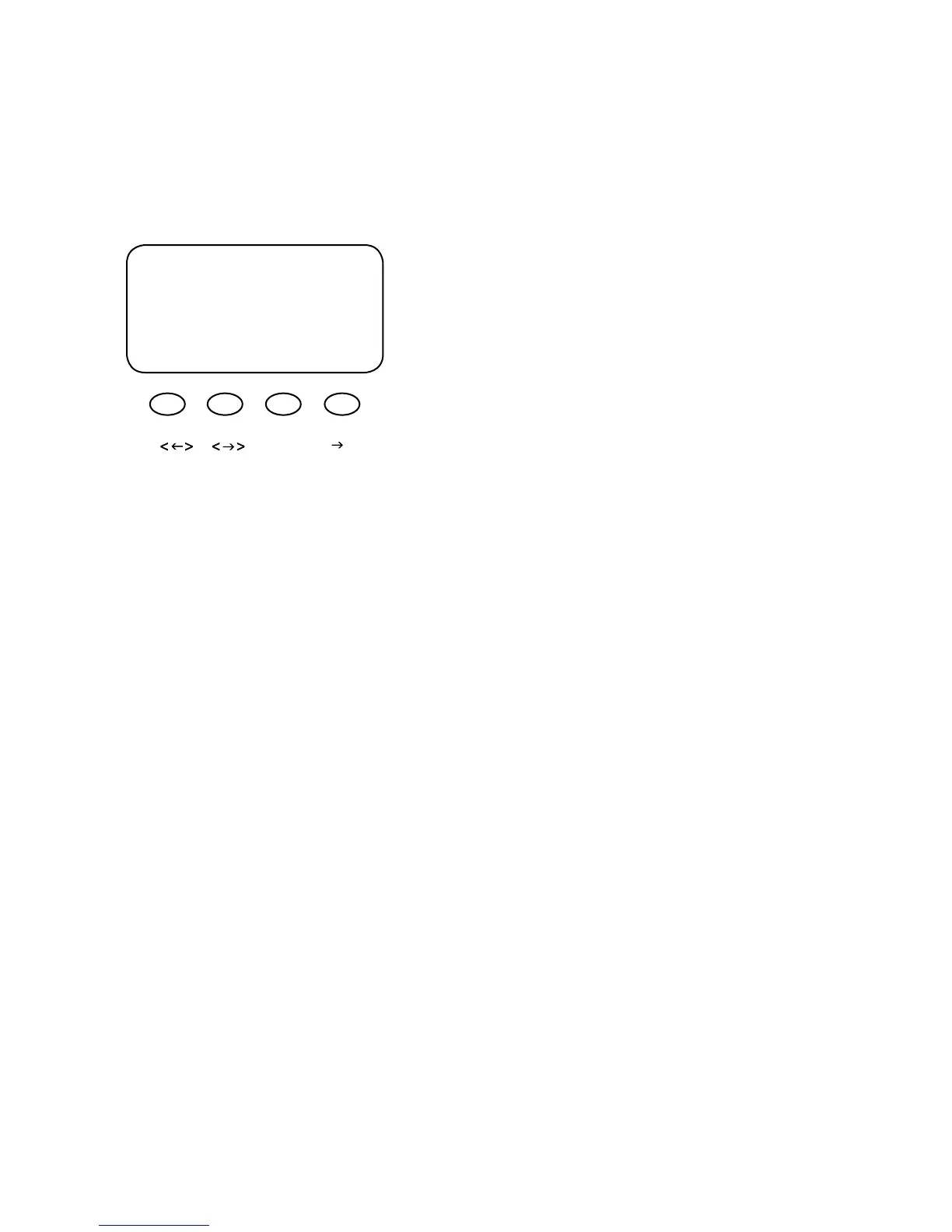

Press the <GO> soft key after aligning the arrow in
front of the selected menu choice.
Pressing the <EXIT> soft key in the MAIN Menu
returns to the STATUS screen.
From the MAIN Menu, a user can choose among the following FLEXmax 80 functions by aligning the
arrow:
•
Charger—CHARGER SETUP
- Adjusts the Current Limit, Absorb, and Float recharging voltage set points
•
Aux—AUX OUTPUT CONTROL
- Secondary control circuit for a vent fan, error alarm, and other system-related additions
•
Light—BACKLIGHT CONTROL
- Adjusts the backlighting of LCD screen and soft key buttons
• EQ—BATTERY EQUALIZE
- Activates battery equalization recharging (manually or automatically)
•
Misc—MISCELLANEOUS
- Additional settings and service information
•
Advanced —ADVANCE MENU
- Optimizing/ne-tuning the FLEXmax 80 (these are advanced Menus that should be left alone
until the user has a good working knowledge of the FLEXmax 80 and its operations)
•
Logging—DATA LOGGING
- Displays recorded power production information
•
STATS—Statistics
- Displays recorded peak system information and cumulative kilowatt hours and amp hours
g Charger Aux Light
EQ Misc Advanced
Logging Stats
EXIT f g GO
Press or to move the " “ to
the left of the desired screen. The arrow
allows access to any screen to its right.
