Outback Power Systems FLEXMAX 80 User Manual

52
PB
ADVANCED MENU
Auto ReStart
MODE 2
EXIT NEXT MODE

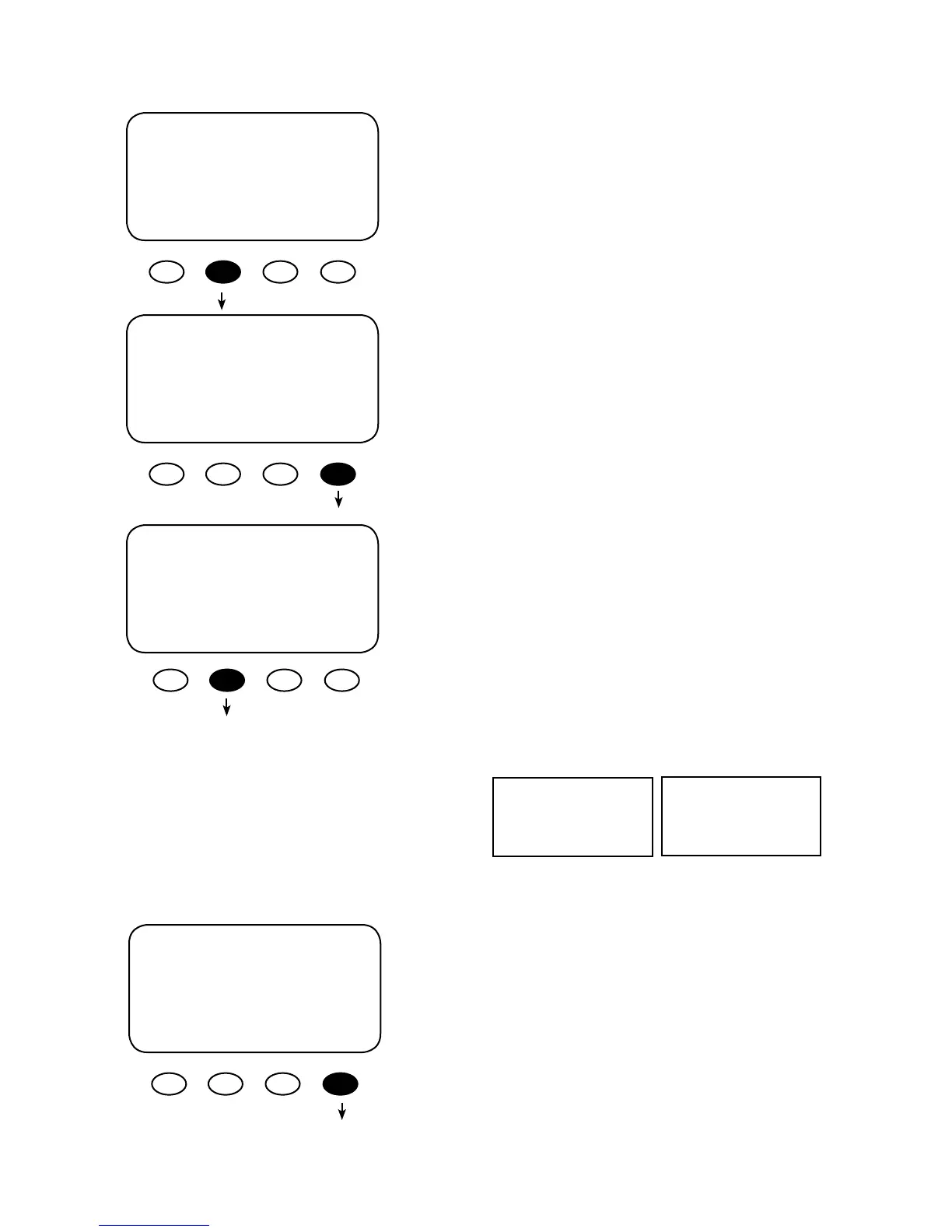

From the Auto Restart MODE 2 screen, press the <NEXT>
soft key to view the Aux Polarity screen.
When the AUX function is ON, 12 volts is present at
the AUX terminal; when it’s OFF, 0 volts are present
at the terminal. Aux Polarity allows the user to reverse
the availability of this voltage for the Night Light, PV
Trigger, or Diversion Relay functions. In Active High, the
user establishes certain conditions for these functions.
Pressing the <MODE> soft key brings up the Active Low
screen which allows the user to reverse these conditions.
In the Active Low zero voltage will be available for a
function that in Active High would normally have voltage.
When one of the three functions— Night Light, PV Trigger,
or Diversion Relay—has been chosen as the AUX function,
an arrow in the right hand corner of the screen will reect
the Aux Polarity state. An arrow pointing up means Active
High while an arrow pointing down means Active Low.
Press the <NEXT> soft key to view the Reset to Defaults?
screen.
EXAMPLE
PV Trigger Active High PV Trigger Active Low
In this screen, a user can press the <RESET> soft key to
return the FLEXmax 80 to the factory default settings.
(If you do not need to reset, press the <EXIT> soft key to
return to the STATUS screen.)
ADVANCED MENU
Aux Polarity
Active Low
EXIT NEXT MODE
ADVANCED MENU
Aux Polarity
Active High
EXIT NEXT MODE
ADVANCED MENU
Reset to Defaults?
EXIT NEXT RESET
g
g
AUX MODE
PV Trigger
Output: O O
EXIT NEXT SET MODE
g
AUX MODE
PV Trigger
Output: O O
EXIT NEXT SET MODE
g
