33
PB

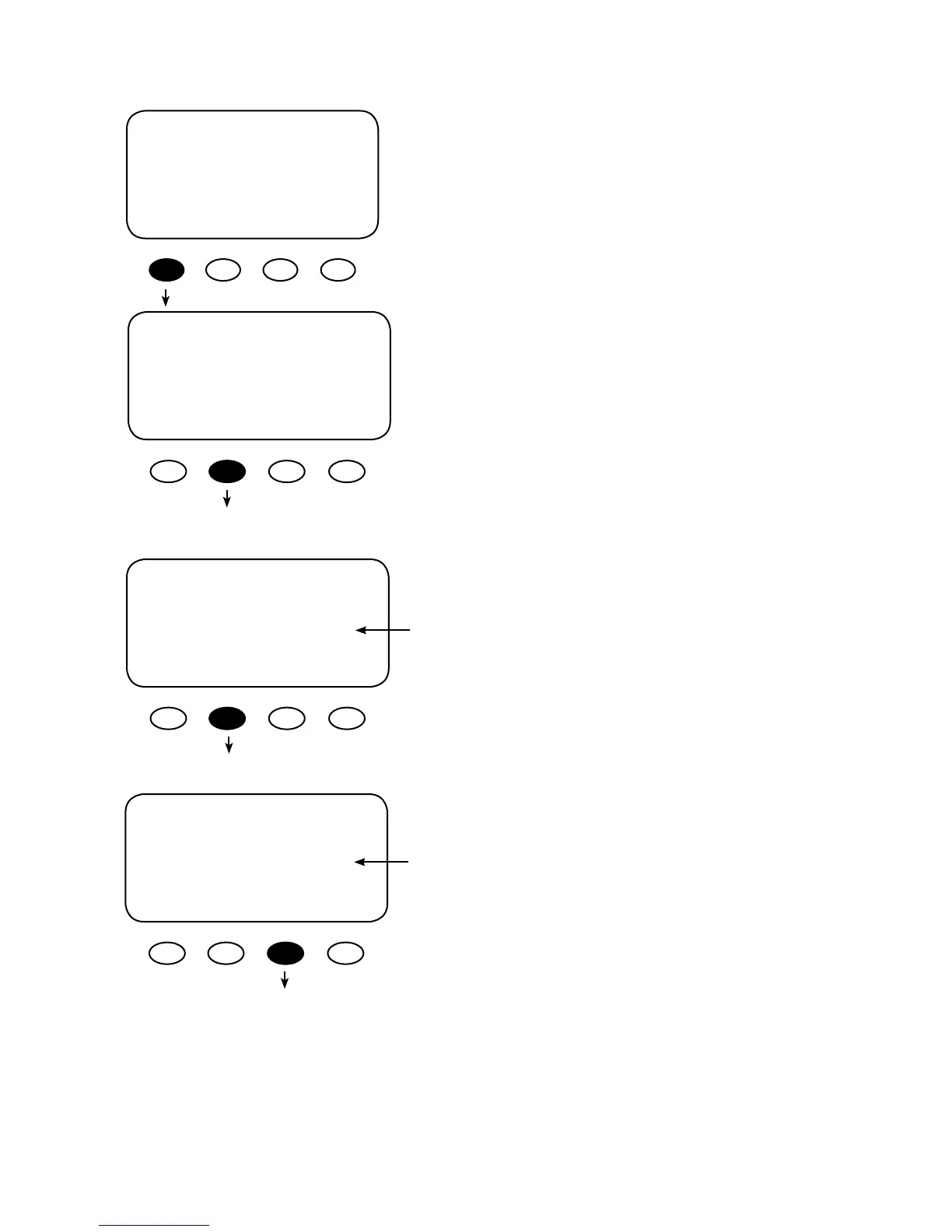

Press the <NEXT> soft key ro view the AUX Float
screen.
The AUX MODE is active when the FLEXmax 80 is in
Float and producing power. Press the <NEXT> soft
key to advance to the Diversion screen.
When external DC sources (wind, hydro) are directly
connected to a battery bank, any excess power
should be sent to a diversion load, such as a heat-
ing element, via a mechanical or solid state relay.
In Diversion, which features Relay and Solid State
screens, the user programs set points—from -5.0
volts to 5.0 volts relative to the Absorb, Float and EQ
voltages—to activate the AUX MODE. With wind or
hydro generator applications, keep the FLEXmax 80’s
diversion voltage slightly above its Absorb and Float
voltages for ecient functioning.
This is primarily an o-grid function. Pressing the
<MODE> soft key displays Auto and On modes in
addition to O. Pressing the <SET> soft key displays
the Diversion: Relay TIME and VOLT screen.
AUX MODE
Night Light
Output: Off Auto
EXIT NEXT SET MODE
FLOAT
AUX MODE
Float
Output: Off Off
EXIT NEXT SET MODE
On
O
Auto
RELAY
AUX MODE
Diversion: Relay
Output: Off Off
EXIT NEXT SET MODE
On
O
Auto
AUX MODE
Night Light
EXIT HYST TIME VOLT
Press the <EXIT> soft key to return to the Night Light
AUX mode.
g
g
g
