Owon XDM Series User Manual

3.Functions and Operations
15
Basic Measurement Functions

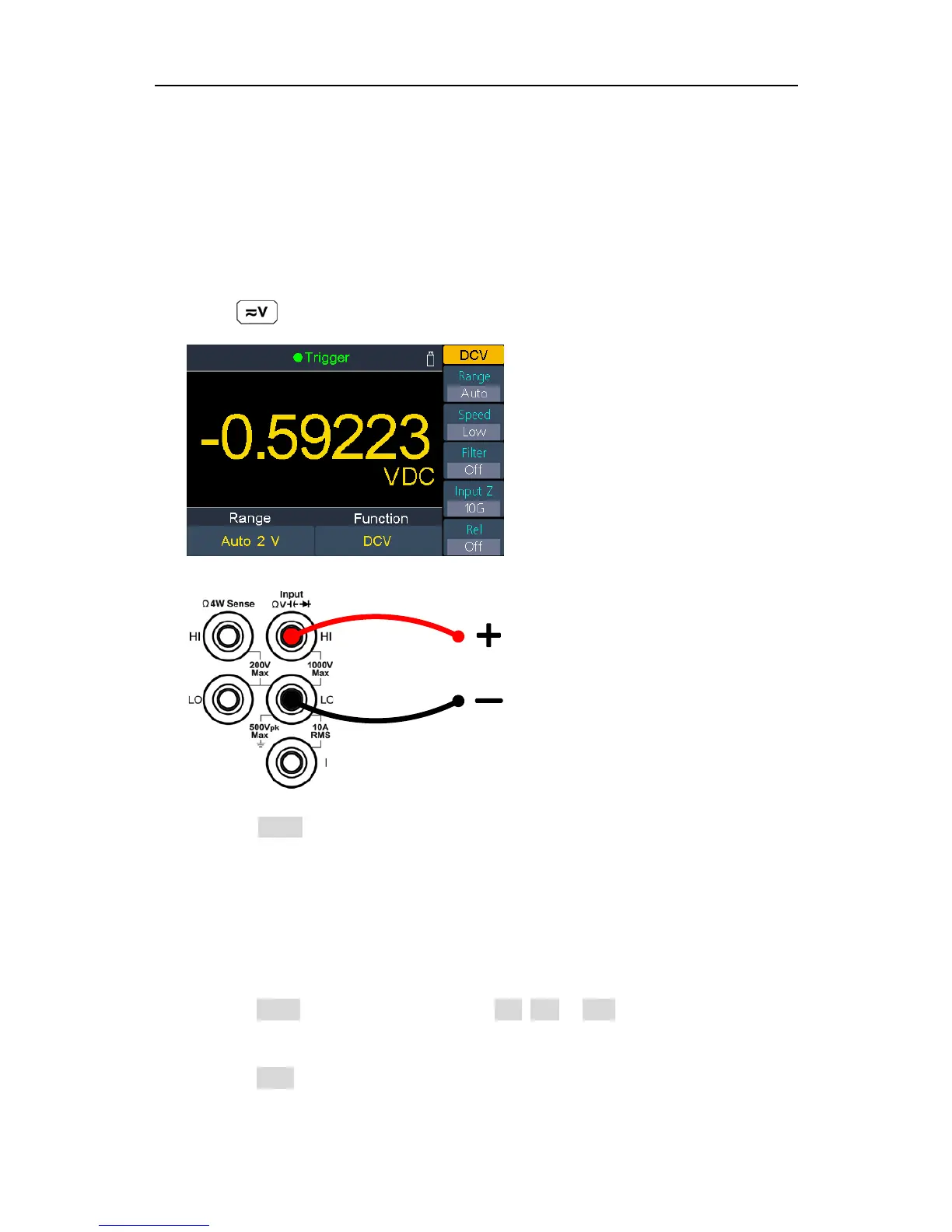

Measuring DC Voltage
This section describes how to configure DC voltage measurements.
Operating Steps:
1. Enable the DCV measurement.
Press on the front panel to enter DCV measurement mode.
2. Connect the test lead.
DC Voltage
3. Set the range.
Press the Range softkey to set the range. Auto range automatically selects the range
for the measurement based on the input.
Note:
 1000 V input protection is available in all ranges.
 XDM3051: 20% over range for all ranges except 1000 V range.
XDM3041: 10% over range for all ranges except 1000 V range.
 If the reading exceeds 1050 V in 1000 V range, "overload" will be displayed.
4. Set the measurement speed.
Press the Speed softkey to switch between Low, Mid or High. See page 14,
Measurement Speed and Resolution.
5. Set the filter. (Optional operation)
Press the Filter softkey to turn on or off the AC filter. When the AC component exists
in the inputted DC signal, it can be filtered by the AC filter to make the measurement
data more exactly.
