Owon XDM Series User Manual

3.Functions and Operations
33

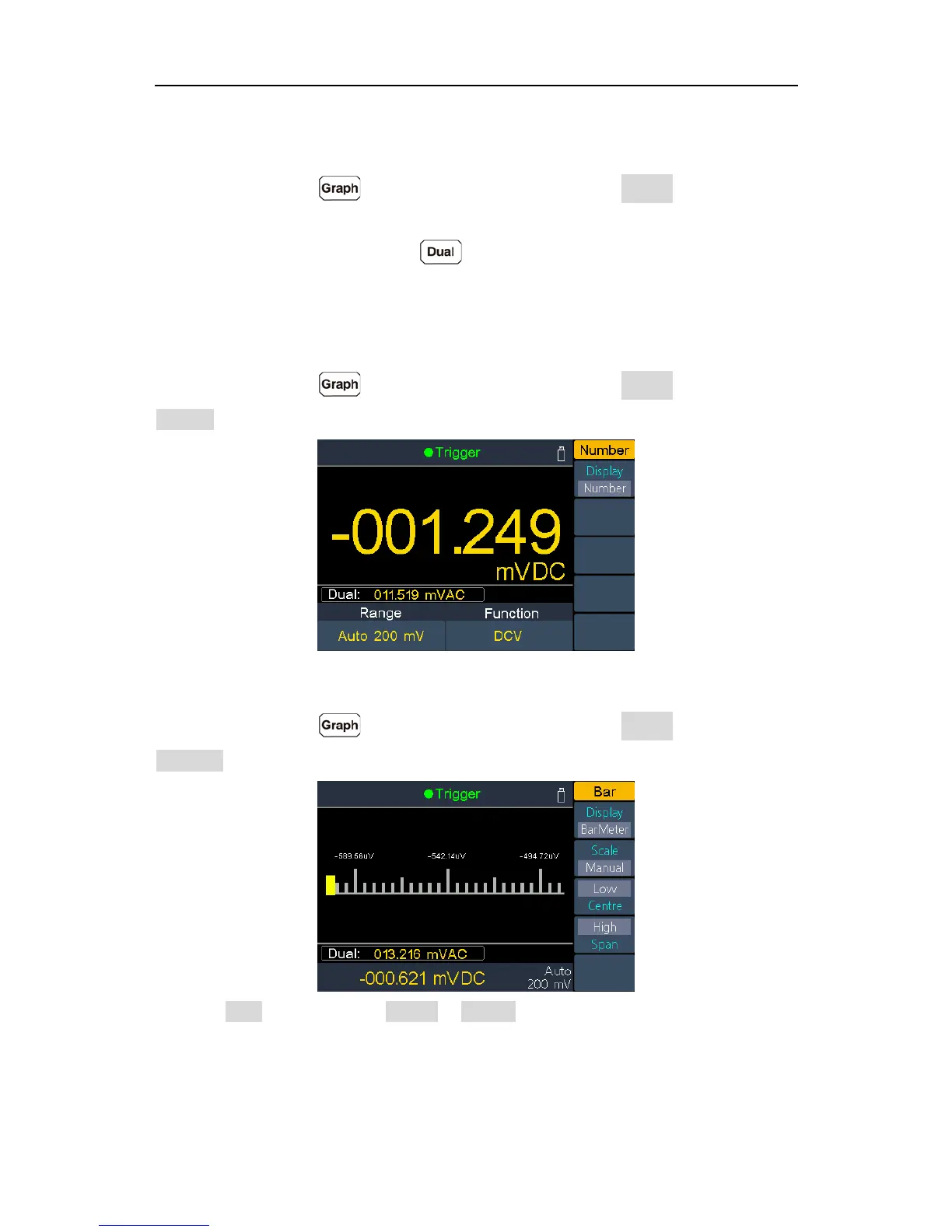

Display
Press the front panel key to access the menu, press the Display softkey to select
the display type as number, bar meter, trend chart, or histogram.
In each display type, you can press on the front panel, and select the secondary
function. For example, for the DCV measurement function, you can select ACV as the
secondary measurement function. See page 27, Dual Display.
Number
Press the front panel key to access the menu, press the Display softkey to select
Number, the instrument displays readings as a number. It is the default display type.
Bar Meter
Press the front panel key to access the menu, press the Display softkey to select
BarMeter. The bar meter adds a moving bar below the standard Number display.
Press the Scale softkey to select Default or Manual.
Default: Set the scale to equal the measurement range. For example, for the DCV
measurement function, the horizontal scale will be set as -200 mV to 200 mV when the
present range is 200 mV.
Manual: Allow you to configure the scale either as High and Low values or as a Span
around a Center value. For example, a scale that goes from a Low of -50 mV to a High of
