Appendix C: Line Fuse Replacement
The line fuse is in the plastic fuse box below the power line input on the rear panel.
Warning: Disconnect the line cord at the rear panel and remove all test leads
connected to the instrument before replacing the line fuse. Failure
to do so could expose the operator to hazardous voltages that could
result in personal injury or death.
Use only the correct fuse type. Failure to do so could result in personal injury or
instrument damage.
Voltage Fuse
100 - 120 V AC
250 V, F1AL
220 - 240 V AC
250 V, F0.5AL

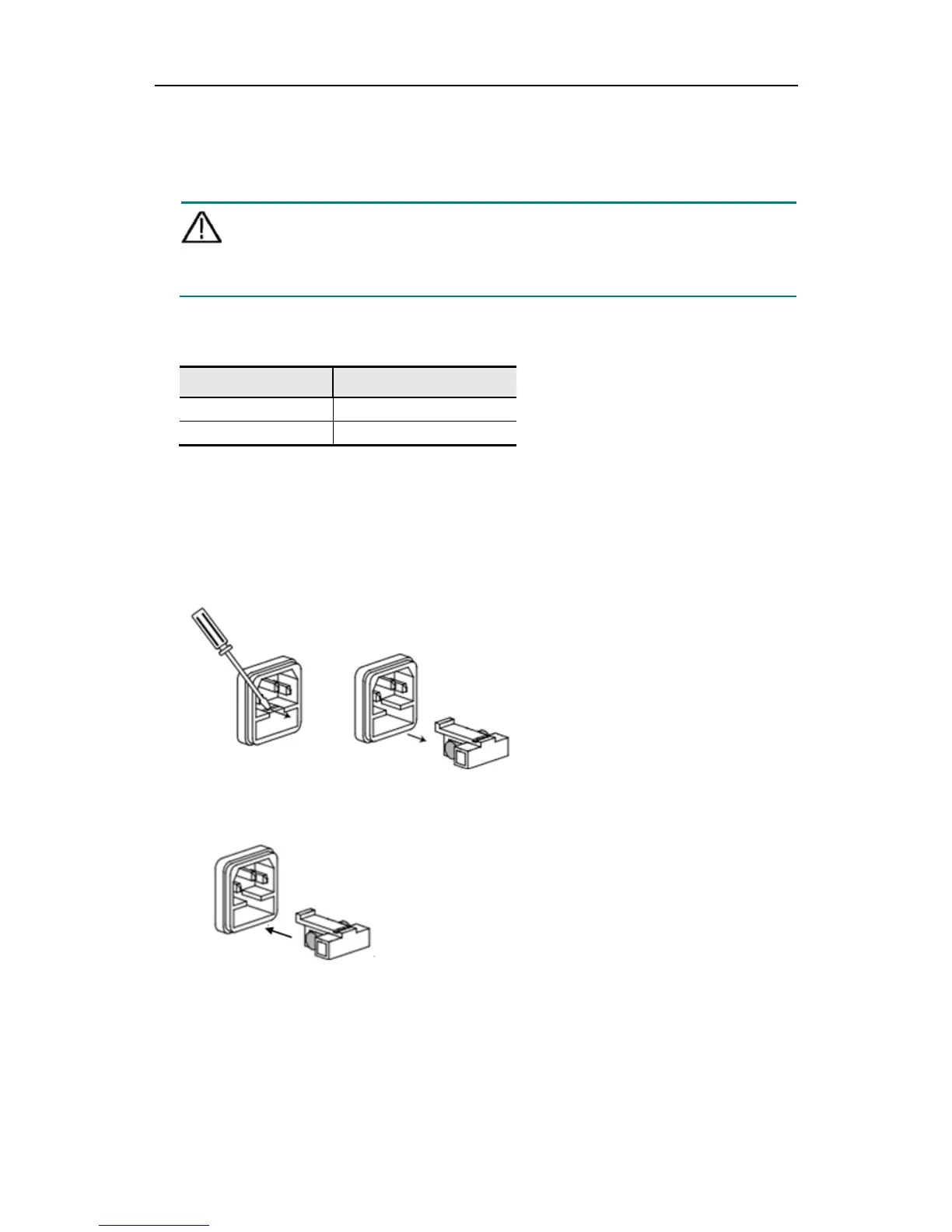

To perform the line fuse replacement, follow these steps:
1. Turn off the multimeter, remove all measurement leads and other cables from the
instrument, including the power cord.
2. Use a flat-blade screwdriver to remove the fuse box.
3. Replace the fuse with a new one, which should match with the voltage; install it into
the fuse box, and push the fuse box back on to the rear panel.
