Owon XDM Series User Manual

3.Functions and Operations
24

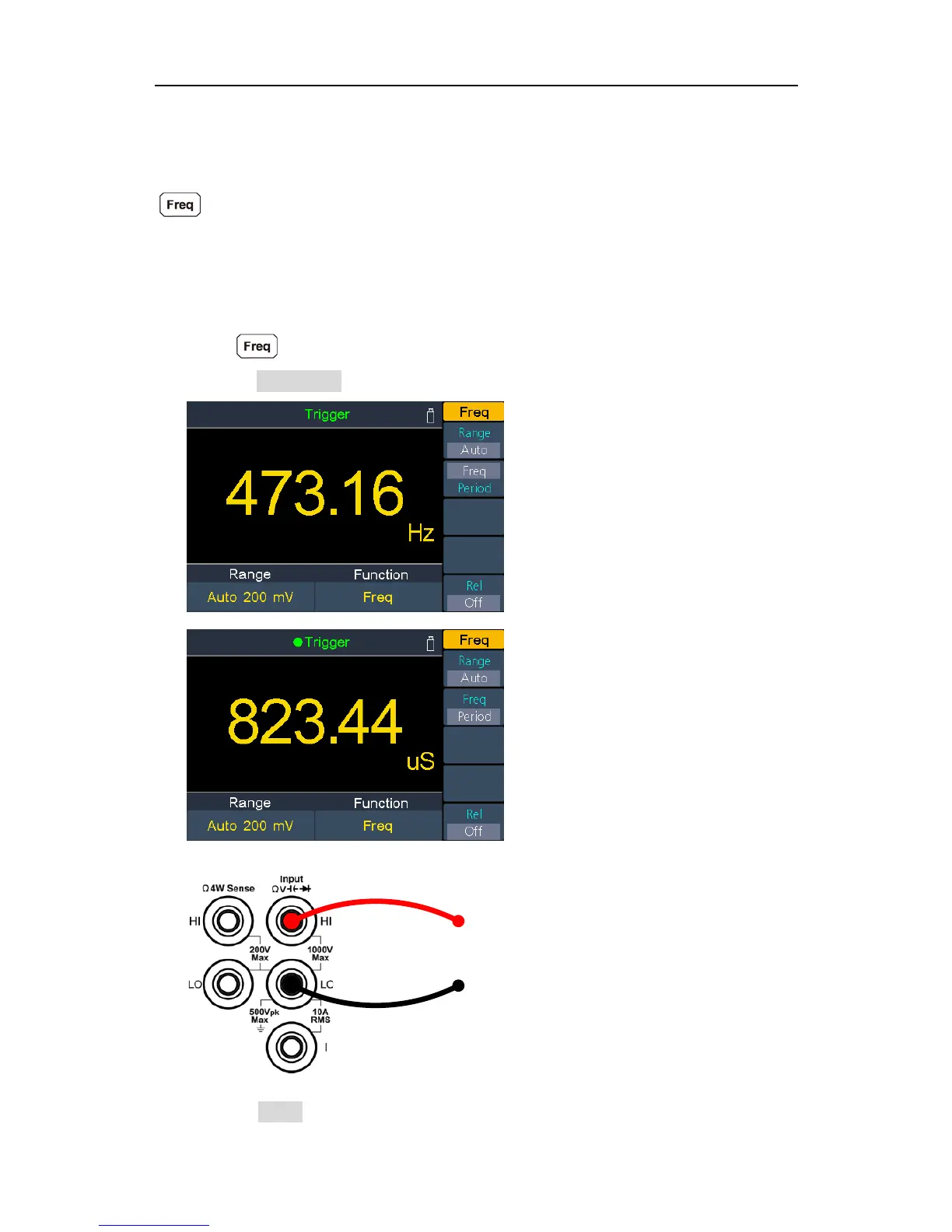

Measuring Frequency and Period
When measuring AC voltage or AC current, you can use the dual display function to
obtain the measured signal’s frequency and period (see page 27, Dual Display), or press
to measure the frequency or period directly.
This section describes how to configure frequency and period measurements.
Operating Steps:
1. Enable the frequency/period measurement.
Press on the front panel to enter frequency/period measurement mode.
Press the Freq/Period softkey to switch between frequency and period.
2. Connect the test lead.
AC Signal
3. Set the range.
Press the Range softkey to set the range. Auto range automatically selects the range
