Owon XDM Series User Manual

3.Functions and Operations
18
input fuse on the rear panel and the built-in 12 A current input fuse.
 XDM3051: 20% over range for all ranges except 10 A range.
XDM3041: 10% over range for all ranges except 10 A range.
 If the reading exceeds 10.5 A in 10 A range, "overload" will be displayed.
4. Set the measurement speed.
Press the Speed softkey to switch between Low, Mid or High. See page 14,
Measurement Speed and Resolution.
5. Set the filter. (Optional operation)
Press the Filter softkey to turn on or off the AC filter. When the AC component exists
in the inputted DC signal, it can be filtered by the AC filter to make the measurement
data more exactly.
6. Set the relative value. (Advanced operation)
Press the Rel softkey to turn on or off the relative operation. For relative operation,
the multimeter subtracts the pre-specified value of REL operation from the actual
measurement result and displays the result. See page 31, Relative Value.

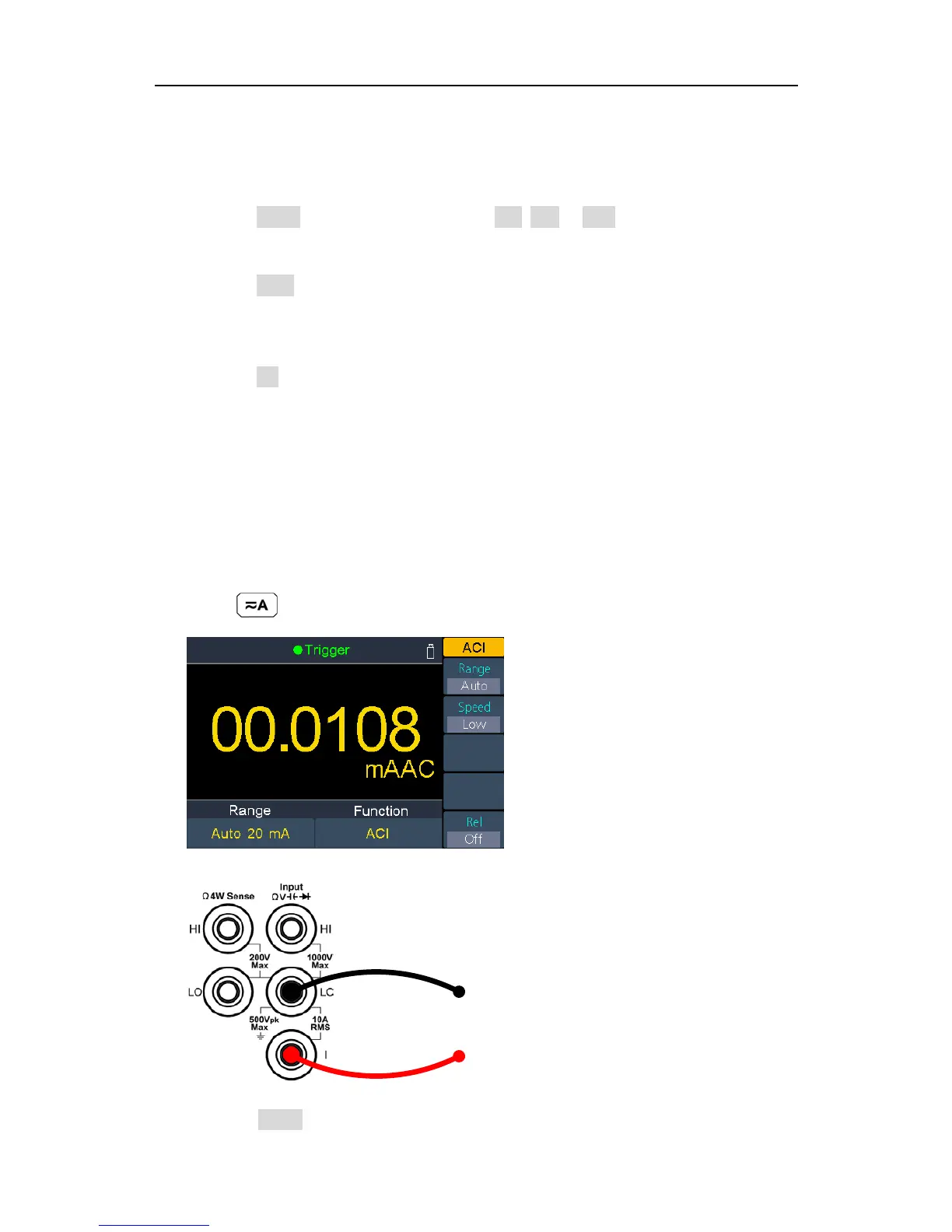

Measuring AC Current
This section describes how to configure AC current measurements.
Operating Steps:
1. Enable the ACI measurement.
Press on the front panel, press it again to enter ACI measurement mode.
2. Connect the test lead.
AC Current
3. Set the range.
Press the Range softkey to set the range. Auto range automatically selects the range
