Panasonic KX-NCP500 User Manual

Connection Example

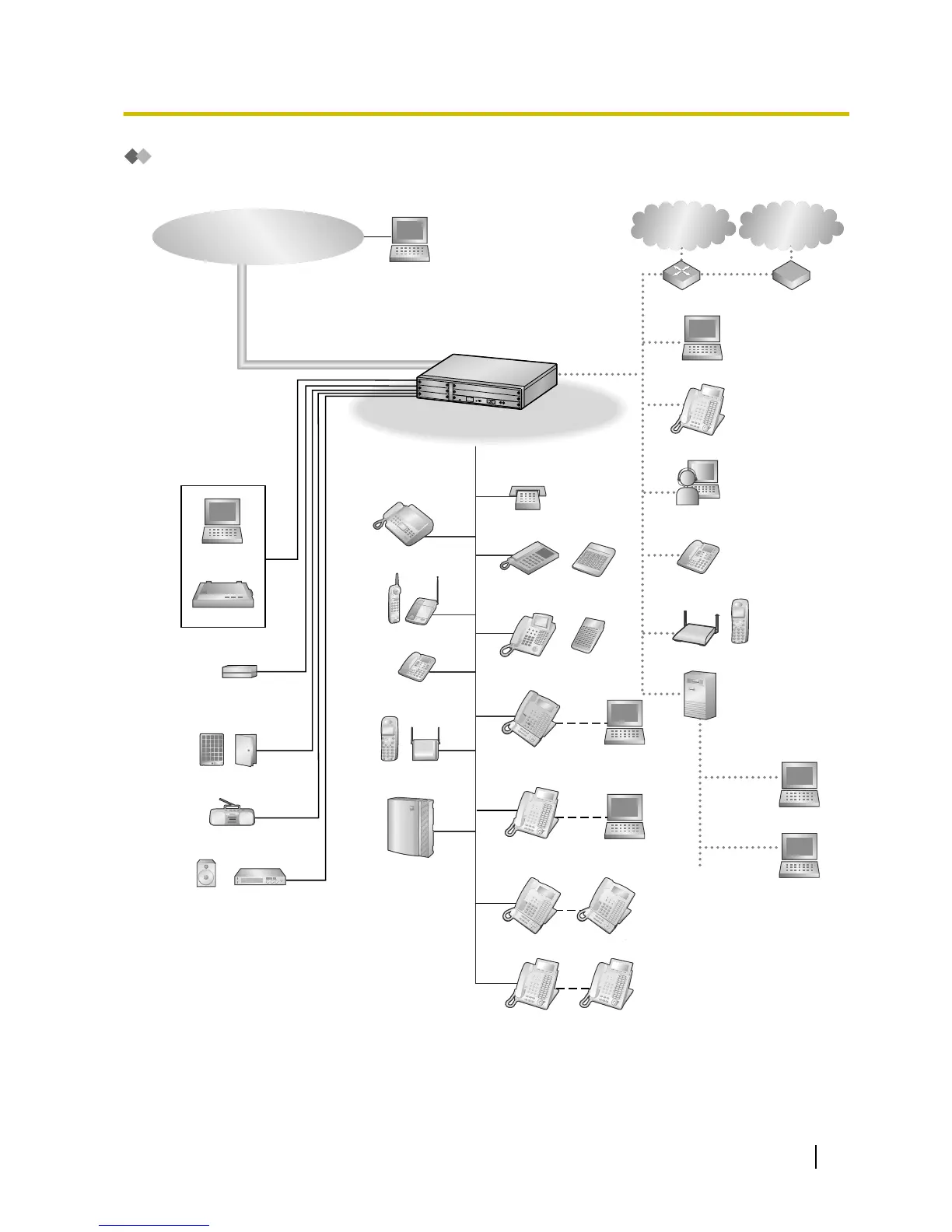

This diagram shows you a connection example.
Doorphone & Door Opener
External Music Source
Pager/
Speaker
Remote PC
PC
Printer
Telephone Company
PBX
Amplifier
External Sensor/
External Relay Device
KX-T7600 KX-T7600
Voice Processing
System
KX-T7636/
KX-T7633
Router
PC
CSPS
Wireless Phone
Fax Machine
PC
USB
APT
DPT
ISDN Telephone
CTI Server
PC
PC
SLT
DSS Console
DSS Console
IP-PT
SIP Extension
Private
IP Network
ITSP
*
1
Network
DCE
*
2
(e.g., ADSL
Modem)
WAN
PC
USB
KX-DT300 KX-DT300
KX-DT346/
KX-DT343
PS
IP-CS
IP Softphone, CA
*
3
Client PC
*1
ITSP: Internet Telephony Service Provider
*2
DCE: Data Circuit Terminating Equipment
*3
CA: Communication Assistant
User Manual 25
1.1.1 Before Operating the Telephones

Panasonic KX-NCP500 Specifications

General

VoIP Support	Yes
Operating System	Proprietary
Type	Hybrid IP-PBX
VoIP Codecs	G.711, G.729A
Protocols	SIP, H.323
Operating Temperature	0°C to 40°C
Analog Extensions	Yes
IP Extensions	Yes
Power Supply	AC 100-240 V, 50/60 Hz
SIP Trunks	Yes
Wireless (DECT) Extensions	Yes, with optional module
Weight	4.0 kg
Humidity	20% to 80% (non-condensing)
