CREATING LINES
26
Lines

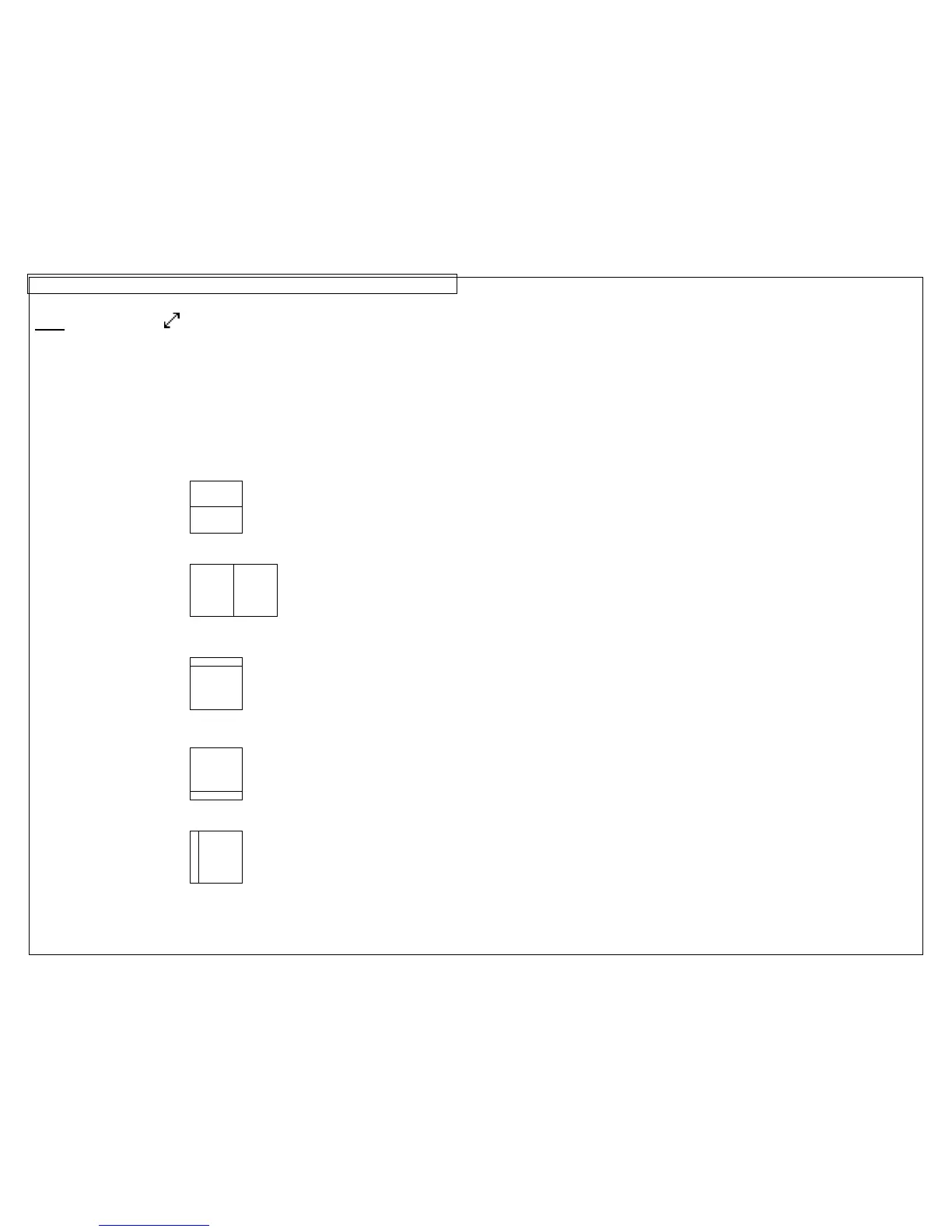

Lines allows custom placement of vertical and horizontal lines on a label. Lines
are especially useful for creating patch panel, faceplate, or terminal block labels.
There are seven unique line settings available: Center Horizontal, Center
Vertical, Top, Bottom, Left, Right, and @ Pages. Each of these settings may
be turned on or off independently.
NOTE: The top, bottom, left, and right sides of the label will rotate with
the legend when a label is rotated.
1. The Center Horizontal setting places a line through the center of the label in
the horizontal direction.
2. The Center Vertical setting places a line through the center of the label in
the vertical direction.
3. The Top setting places a line at the top of the label.
4. The Bottom setting places a line at the bottom of the label.
5. The Left setting places a line at the far left side of the label.
A01
A02
A01 A02
A01
A01
A01

Panduit PANTHER LS8E Specifications

Printing Specifications

print method	Thermal transfer
effective print width	1.00” (25.4 mm)
print length	12.00” (maximum label length)
print resolution	203 dpi (horizontally and vertically)
label width	0.24” to 1.0”
media length	Up to 25’ continuous tapes

Display

display	4 line x 14 graphic LCD with backlight
lcd contrast control	Adjustable via keypad

Power

power supply	6 AA alkaline batteries
ac adapter	Universal Input (100 - 240 VAC, 50/60 Hz)

Operating Environment

operating temperature	41-104° F (5-40 °C)
operating humidity	0 - 90% relative humidity (non-condensing)
storage temperature	-40-140° F (-40-60 °C)
storage humidity	0 - 90% relative humidity (non-condensing)

Weight and Dimensions

weight	1.76 lbs. (0.80 kg)
