Panduit PANTHER LS8E User Manual

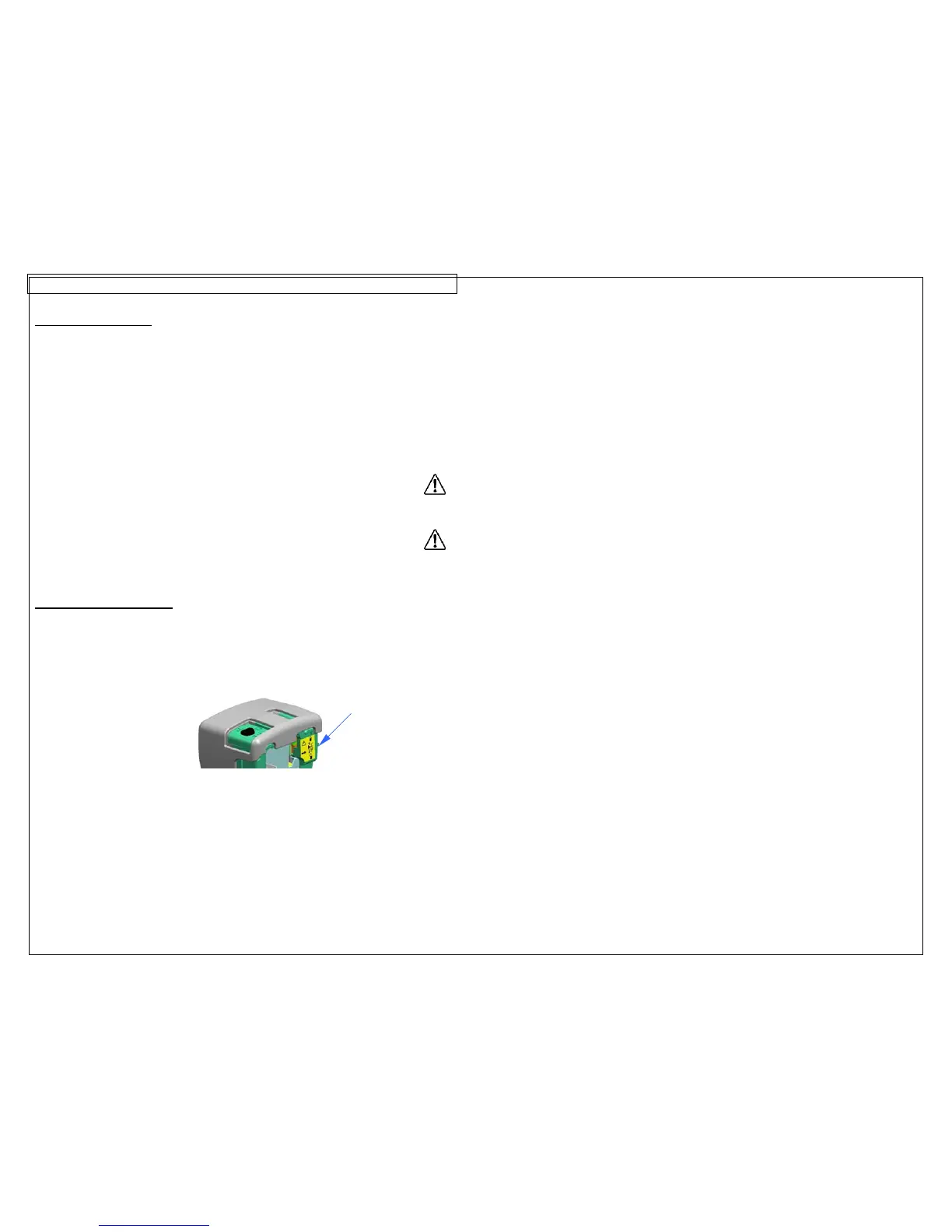

LOADING BATTERIES AND LABEL CASSETTE
9
Loading the Batteries
1. Remove the battery door from the back of the PANTHER™ LS8E printer. If the
impact bumper is installed on the printer, you will have to move it away from
the battery door first.
2. Install the 6 AA batteries according to the molded indicators within the battery
compartment.
3. Reattach the battery door. Move the impact bumper back over the battery
door if necessary.
Observe Correct Polarity When Installing
Batteries
Replace All Six Batteries At The Same Time
Loading a Label Cassette
1. Remove the cassette door from the back of the PANTHER™ LS8E printer.
2. Install a label cassette. Press firmly to lock the cassette in place. Do not
remove the raised white tab from the cassette. This tab is used to assist with
removal of the cassette from the LS8E printer.
3. Lock the print head latch.
4. Reattach the cassette door.
NOTE: To uninstall a label cassette:
1. Unlock the print head latch.
2. Remove the cassette door.
3. Remove the cassette. Use the white removal tab on the
cassette for assistance.
4. Reattach the cassette door.
Print Head Latch

Panduit PANTHER LS8E Specifications

Printing Specifications

print method	Thermal transfer
effective print width	1.00” (25.4 mm)
print length	12.00” (maximum label length)
print resolution	203 dpi (horizontally and vertically)
label width	0.24” to 1.0”
media length	Up to 25’ continuous tapes

Display

display	4 line x 14 graphic LCD with backlight
lcd contrast control	Adjustable via keypad

Power

power supply	6 AA alkaline batteries
ac adapter	Universal Input (100 - 240 VAC, 50/60 Hz)

Operating Environment

operating temperature	41-104° F (5-40 °C)
operating humidity	0 - 90% relative humidity (non-condensing)
storage temperature	-40-140° F (-40-60 °C)
storage humidity	0 - 90% relative humidity (non-condensing)

Weight and Dimensions

weight	1.76 lbs. (0.80 kg)
