Mechanical Instructions
EN 10 TPN16.3E LA4.
2016-Oct-28
back to
div. table

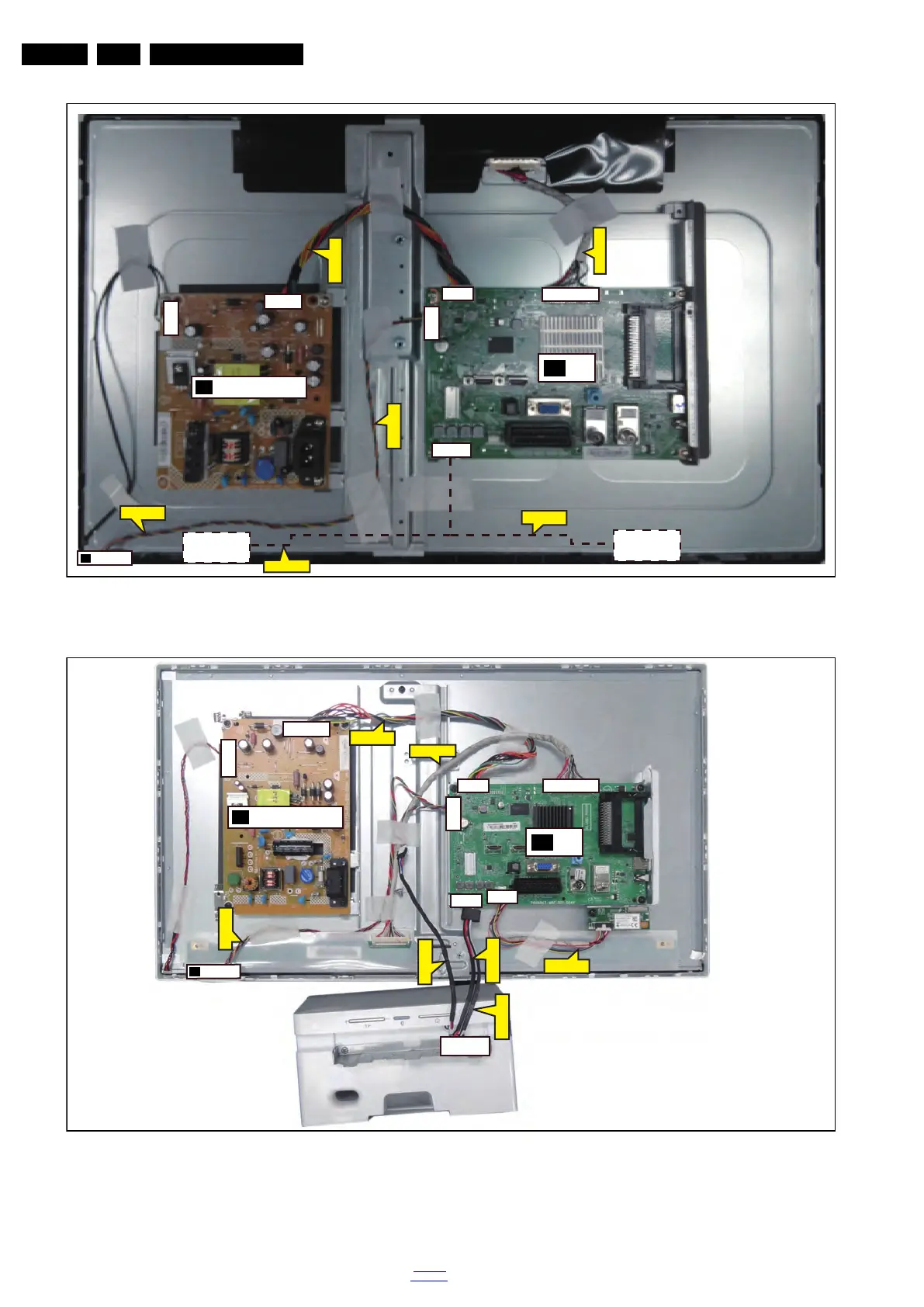

Figure 4-2 Cable dressing (24" 4031 series)
Figure 4-3 Cable dressing (24" 5231 series)
20210_101.eps
CN601
CN401
CN8605
CN9101
CN701
CN408
MAIN POWER SUPPLY
(1054)
A
SSB
(1053)
B
ECN408
ECN601
ECN701
ECN401
ECN401
ECN601
LOUDSPEAKER
(1184)
LOUDSPEAKER
(1184)
IR/LED BOARD
(1056)
J
20210_102.eps
CN401
CN9101
CN8601
CN701
CN601
CN702
CN408
MAIN POWER SUPPLY
(1054)
A
IR/LED BOARD
(1056)
J
SSB
(1053)
B
ECN408
ECN701
ECN702
ECN401
ECN401
ECN601
ECN601
LOUDSPEAKER
(1184)
