Mechanical Instructions
EN 17TPN16.3E LA 4.
2016-Oct-28
back to
div. table
4.4.3 Speaker
Refer to Figure 4-13
for details.
Warning: Disconnect the mains power cord before removing
the rear cover.
1. Remove the fixation screws [1] that secure the rear cover.
Refer to Figure 4-13
for details.
2. Release the connectors [2] and [3] that connect speake
with the SSB. Refer to Figure 4-13
for details.
3. Gently lift the Speaker from the TV. Make sure that wires
and cables are not damaged while lifting the rear cover
from the set.

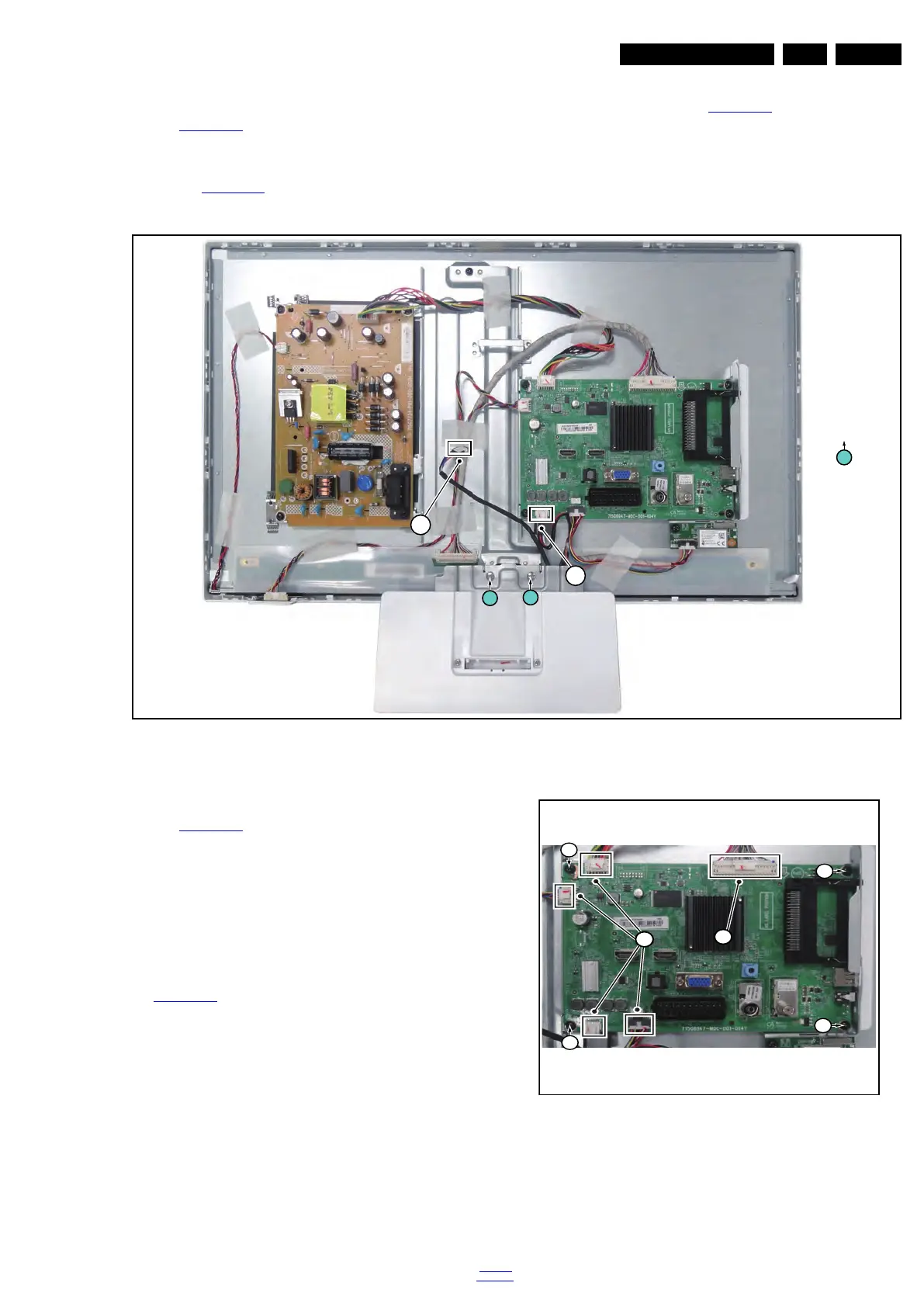

Figure 4-13 Speaker removal
4.4.4 Small Signal Board (SSB)
Refer to Figure 4-14
for details.
Caution: it is mandatory to remount all different screws at their
original position during re-assembly. Failure to do so may result
in damaging the SSB.
1. Release the clips from the LVDS connector that connect
with the SSB[1].
Caution: be careful, as these are very fragile connectors!
2. Unplug all other connectors [2] .
3. Remove all the fixation screws from the SSB [3].
4. The SSB can now be shifted from side connector cover,
then lifted and taken out of the I/O bracket. Refer to
Figure 4-14
for details.
Figure 4-14 SSB removal
20100_103.eps
1
Q4 × 12
1
1
2
3
