Philips 32PHS4131/12 User Manual

Circuit Diagrams and PWB Layouts
EN 59TPN16.3E LA 10.
2016-Oct-28
back to
div.table

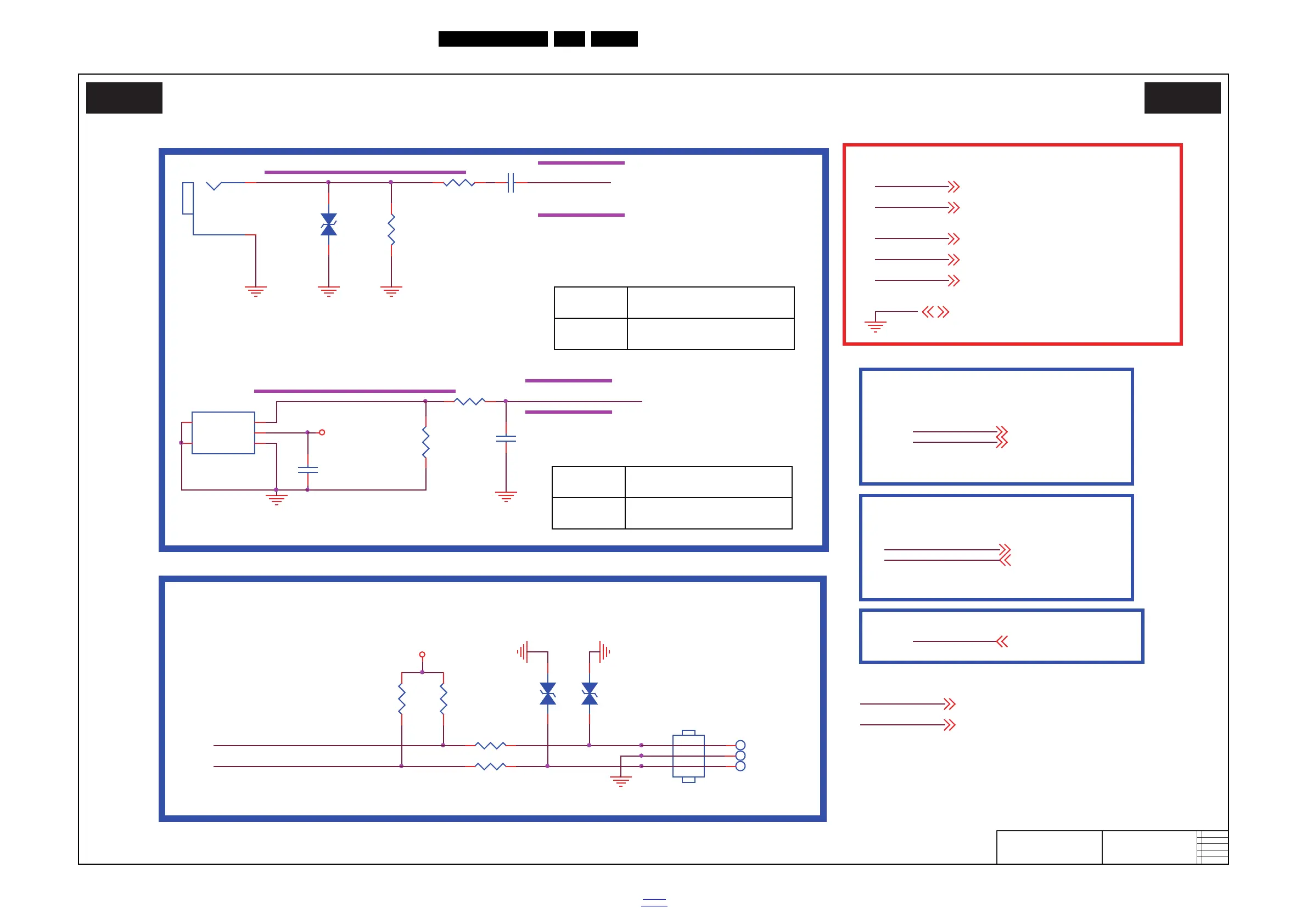

10-5-2 SPDIF/UART INPUT
20210_504.eps
SPDIF/UART INPUT
B02 B02
2016-02-23
C
715G8232
SPDIF/UART INPUT
SPDIF_OUT
U-ART
C1002
120pF 50V
Grounding
Grounding
DV33
C1004
100NF 16V
R1003
10K
R1004
100OHM
GND
+5V_STB
PWR_12V
DV33
PWR_12V 4,13,17
DV33SB
DV15
DV33 4,8,10,11,12,13,14,17,19
DV33SB 4,6,10,12,18
GND 4,6,7,8,9,10,11,12,13,14,15,16,17,18,19
+5V_STB 4,6
DV15 4,12
R4604
100OHM
R4605
100OHM
MIPS/UART/I2C/ICE
AUDIO /IF
AUDIO /IF
MIPS_RXB 11,16,18
SPDIF_OUT
MIPS_TXB
MIPS_RXB
SPDIF_OUT 7
MIPS_TXB 11,16,18
VGA_RIN
VGA_RIN 7,16
VGA_LIN 7,16
VGA_LIN
CN118
3P
GND
1
VCC
2
VIN
3
GND
4
GND
5
ZD461
MLVG0402
1 2
CN410
1
2
3
R1019
4K7 1/16W 5%
TP403
MIPS_TXB 11,16,18
MIPS_RXB 11,16,18
MIPS_TXB
MIPS_RXB
R1020
4K7 1/16W 5%
TP401
ZD462
MLVG0402
1 2
MIPS_TXB
TP402
DV33
2nd
CN117
NC/RCA JACK
1
2
CN117
8.5mm No shield
088G 78F112VCL
388G0359010VAT
1st
SPDIF Out(Co-Layout)
8.5mm optical
088G 359 10 JT
388G078F118VQS
2nd
SPDIF_OUT
R1014
NC/220 OHM
ZD109
NC/EGA10603V05A1-B
1 2
R1015
NC/75 OHM +-5% 1/16W
1st
C1001
NC/100N16V
MIPS_RXB
