Mechanical Instructions
EN 18 TPN16.3E LA4.
2016-Oct-28
back to
div. table

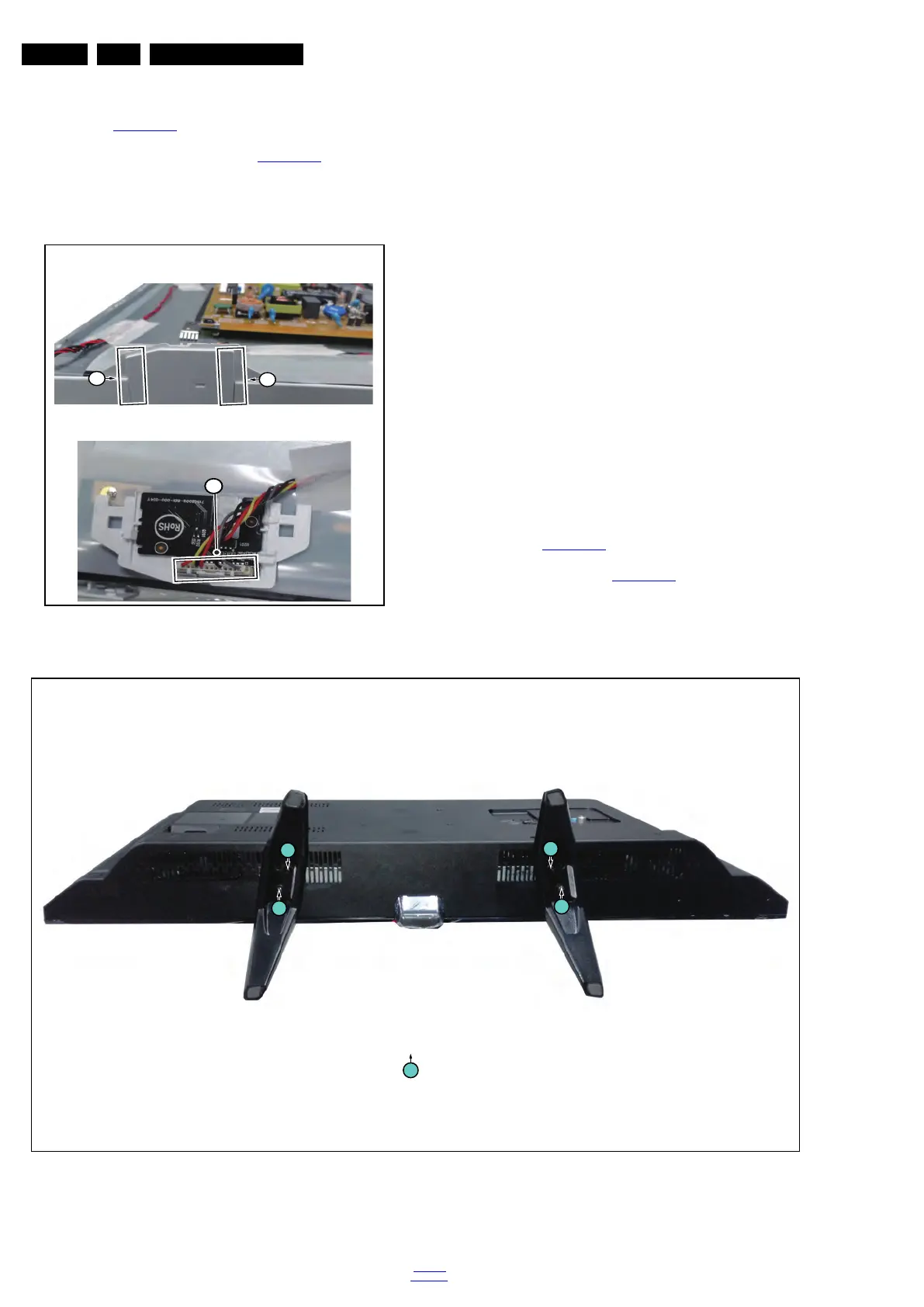

4.4.5 IR/LED Board
Refer to Figure 4-15
for details.
1. Remove the area clips [1] from the stand bracket, pull out
the assy from the set. Refer to Figure 4-15
for details.
2. Carefully Releas the cover secured by clips, then unplug
the connector [2] from the IR/LED board. The IR/LED
Board can now be lifted and taken out from the cover.
Figure 4-15 IR/LED Board removal
4.4.6 Power Supply Unit (PSU)
Caution: it is mandatory to remount all different screws at their
original position during re-assembly. Failure to do so may result
in damaging the PSU.
1. Gently unplug all connectors from the PSU.
2. Remove all fixation screws from the PSU.
3. The PSU can be taken out of the set now.
4.4.7 LCD Panel
1. Remove the SSB as described earlier.
2. Remove the PSU as described earlier.
3. Remove the stand bracket as described earlier.
4. Remove the IR/LED as described earlier.
5. Remove the fixations screws that fix the metal clamps to
the front bezel. Take out those clamps.
6. Remove all other metal parts not belonging to the panel.
7. Lift the LCD Panel from the bezel.
When defective, replace the whole unit.
4.5 Assembly/Panel Removal (for
32"/43"/49"Pxx4131)
Instructions below apply to the 32PFT4131/12, but will be
similar for other 32"/43"/49"Pxx4131 series models.
4.5.1 Stand
Refer to Figure 4-16
for details.
1. Remove the fixation screws [1] that secure the stand
bracket. Refer to Figure 4-16
for details.
2. Take the stand bracket out from the set.
Figure 4-16 Stand removal
20100_105.eps
2
Step 1
Step 2
1
1
20210_110.eps
1
1
1
1
1
M4 × 16
