Mechanical Instructions
EN 11TPN16.3E LA 4.
2016-Oct-28
back to
div. table

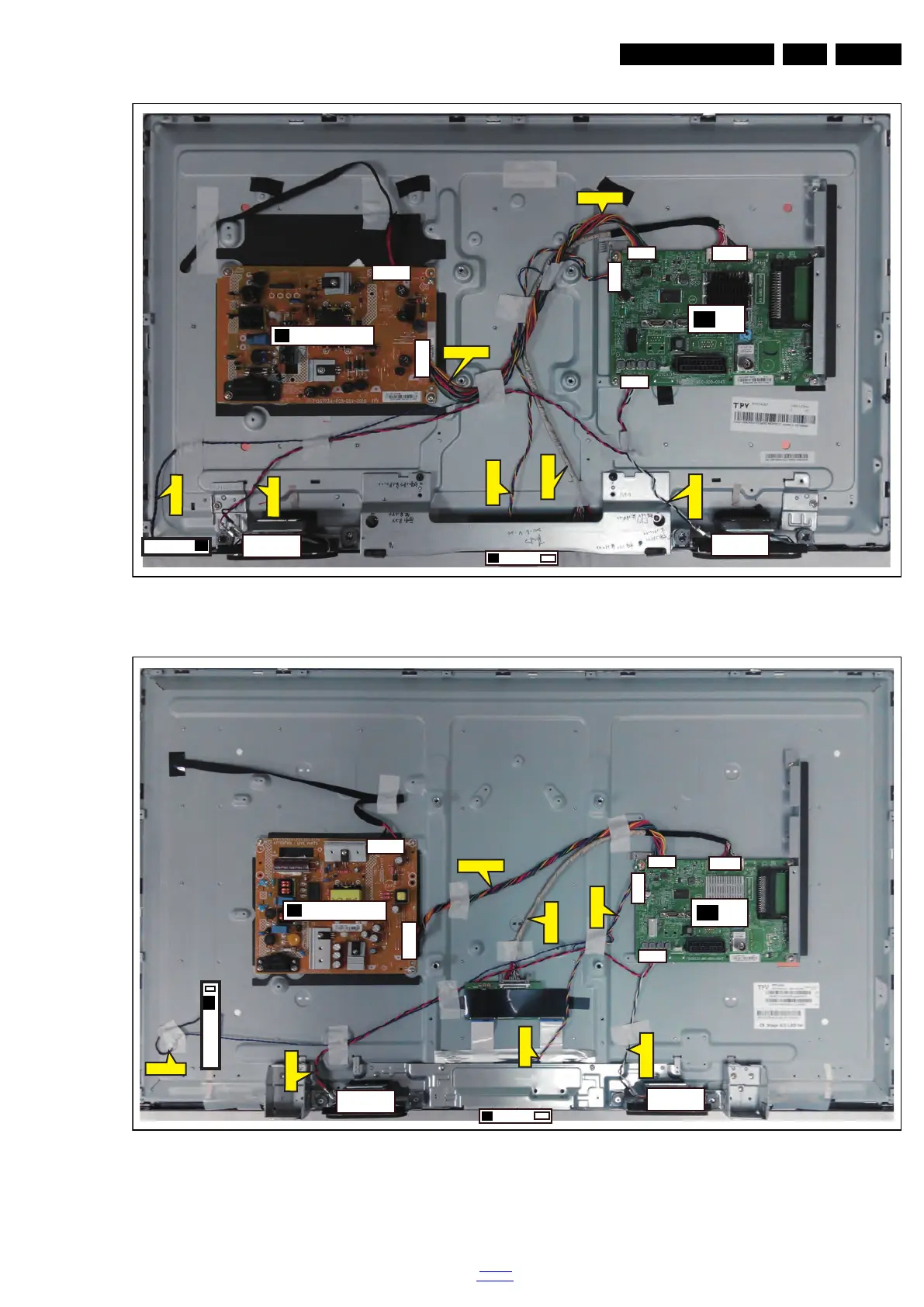

Figure 4-4 Cable dressing (32" 4131 series)
Figure 4-5 Cable dressing (43" 4131 series)
20210_103.eps
CN601
CN401
CN8101
CN9301
CN701
CN408
MAIN POWER SUPPLY
(1054)
A
IR/LED BOARD
(1056)
J
SSB
(1053)
B
ECN701
ECN701
ECN601
ECN401
ECN401
ECN408
ECN601
LOUDSPEAKER
(1184)
LOUDSPEAKER
(1184)
CN201
KEYBOARD CONTROL
(1057)
E
20210_104.eps
CN601
CN401
CN8101
CN9301
CN701
CN408
MAIN POWER SUPPLY
(1054)
A
IR/LED BOARD
(1056)
J
SSB
(1053)
B
ECN701
ECN601
ECN401
ECN408
ECN401
ECN401
ECN601
LOUDSPEAKER
(1184)
LOUDSPEAKER
(1184)
CN201
KEYBOARD CONTROL (1057)
E
CN01
