Philips 32PHS4131/12 User Manual

EN 80TPN16.3E LA 10.
Circuit Diagrams and PWB Layouts
2016-Oct-28
back to
div.table

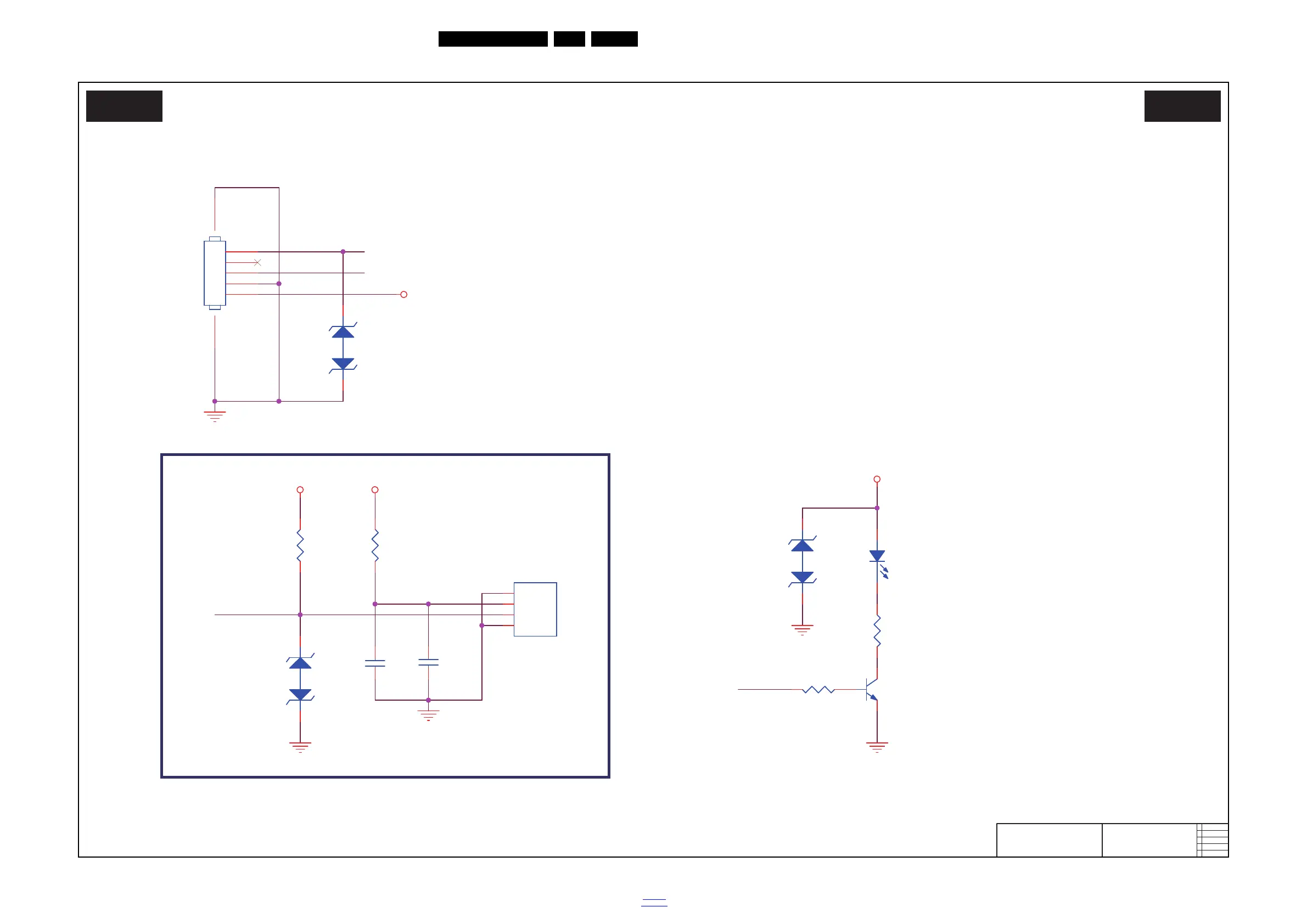

10.8 J 715G7055 IR/LED Panel
10-8-1 LED&IR&3D&Light sensor
19791_500.eps
LED&IR&3D&Light sensor
J J
715G7055
LED&IR&3D&Light sensor
2014-11-111
RC6
RC6
LED_R
LED_R
3V3SB
3V3SB
3V3SB
3V3SB
IR
stanby
ZD202
NC/AZ5125-01H.R7G
ZD202
NC/AZ5125-01H.R7G
12
R201
10K 1/16W 5%
R201
10K 1/16W 5%
R302
2K2 1/16W 5%
R302
2K2 1/16W 5%
C304
1uF 10V
C304
1uF 10V
LED301
CHIP LED RED 19-21B/R6C-BL1M2VY/3T
LED301
CHIP LED RED 19-21B/R6C-BL1M2VY/3T
12
U201
IRM-H336M3/TR2
U201
IRM-H336M3/TR2
GND
1
VCC
2
Vout
3
GND
4
R301
1K 1/16W 5%
R301
1K 1/16W 5%
Q301
BC847BW
Q301
BC847BW
ZD203
NC/AZ5125-01H.R7G
ZD203
NC/AZ5125-01H.R7G
12
R202
100R 1/10W 5%
R202
100R 1/10W 5%
CN201
CONN
CN201
CONN
1
2
3
4
5
67
ZD201
NC/AZ5125-01H.R7G
ZD201
NC/AZ5125-01H.R7G
12
C305
1uF 10V
C305
1uF 10V
