Safety precautions02
10
En
Installation precautions
Observe the following precautions when installing with any items
such as the optional stand.
When using the optional stand, brackets, or equivalent
items
• Ask your dealer to perform the installation.
• Be sure to use the supplied bolts.
• For details, see the instruction manual that comes with the
optional stand (or equivalent items).
When using other items
• Consult your dealer.

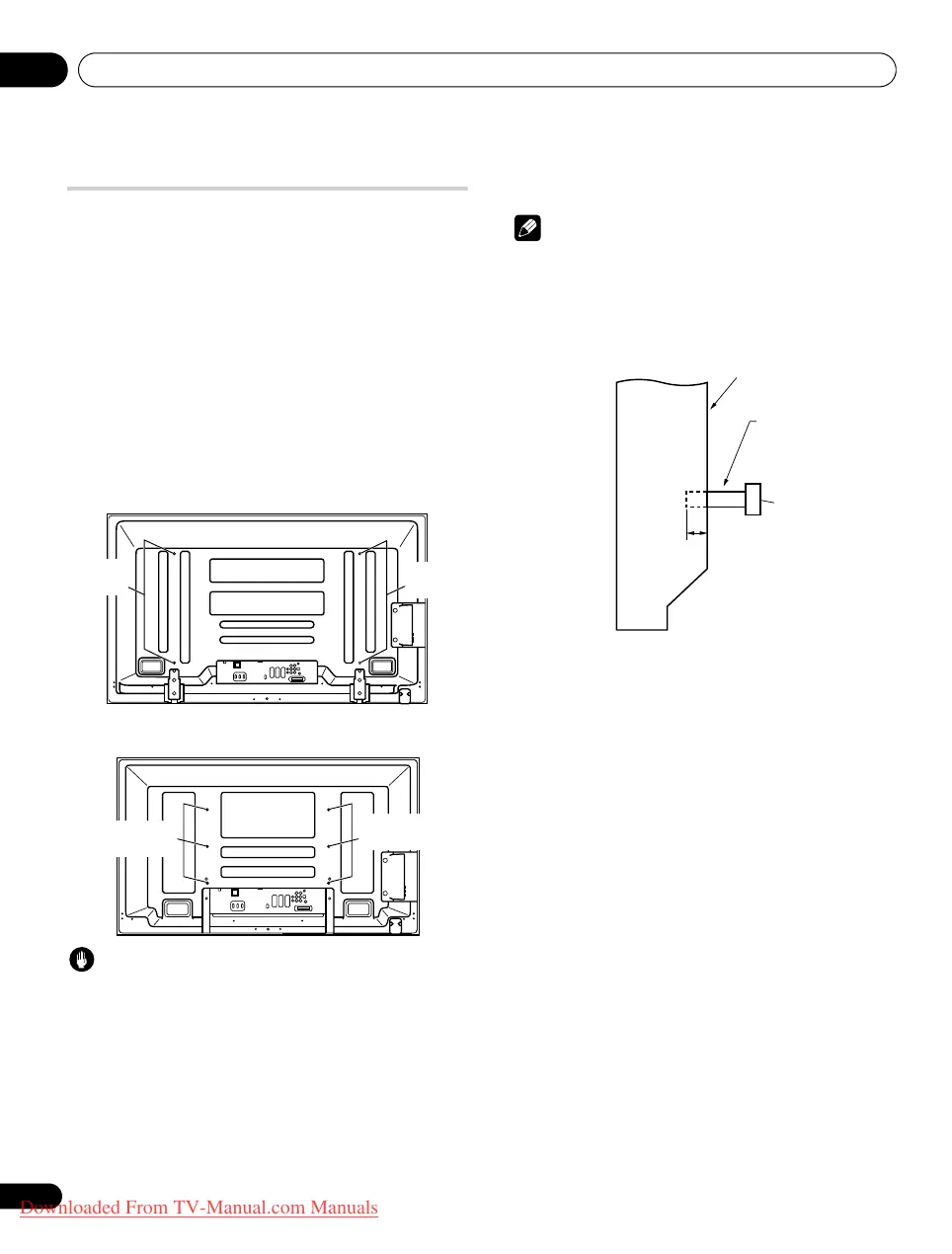

• The following mounting holes can be used for the installation:
Rear view
(PDP-LX6090H)
(PDP-LX5090H)
Caution
• Use M8 screws, which go 12 mm to 18 mm in depth from the
mounting surface of the flat screen TV. See the side view
shown to the right.
• Be careful not to block the ventilation opening at the rear of the
flat screen TV.
• Be sure to install the flat screen TV on a flat surface because it
contains glass.
• The screw holes other than the illustrations above are to be
used only for the specified products. Never use them for
mounting non-specified products.
• Do not mount or remove the flat screen TV to or from the stand,
with speakers attached.
Note
• It is strongly recommended to use the optional Pioneer
mounting products.
• Pioneer shall not be liable for any personal injury or product
damage that results from the use of mounting items other than
the optional Pioneer products.
Side view
Mounting
holes
Mounting
holes
T
W
W
W
T
W
W
W
Mounting
holes
Mounting
holes
Flat screen TV
M8 screw
Mounting bracket
(or equivalent item)
Mounting surface
12 mm to 18 mm
PDP-LX609H.book Page 10 Wednesday, August 6, 2008 4:00 PM
