Using with other equipment 12
67
En
English
Note
• If you select a parameter other than “Auto”, make such a setting
that results in natural colour.
• If no image appears, specify another digital video signal type.
• For the digital video signal types to be specified, check the
operation manual that came with the connected equipment.
Specifying the type of audio signals
When you use the INPUT 1 or INPUT 3 HDMI terminal, select the
terminal for the desired input source, then perform the following
procedure to specify the type of audio signals.
1 Repeat steps 1 to 4 provided for
Activating the HDMI terminal
.
2 Select “Audio“ (
/
then ENTER).
3 Select the type of audio signals (
/
then ENTER).
If you select “Auto”, an attempt will be made to identify the type of
audio signals when audio signals are received.
4 Press HOME MENU to exit the menu.
Note
• If no sound is output, specify another audio signal type.
• For the audio signal types to be specified, check the operation
manual that came with the connected equipment.
• Depending on the equipment to be connected, you also need to
connect analogue audio cables.

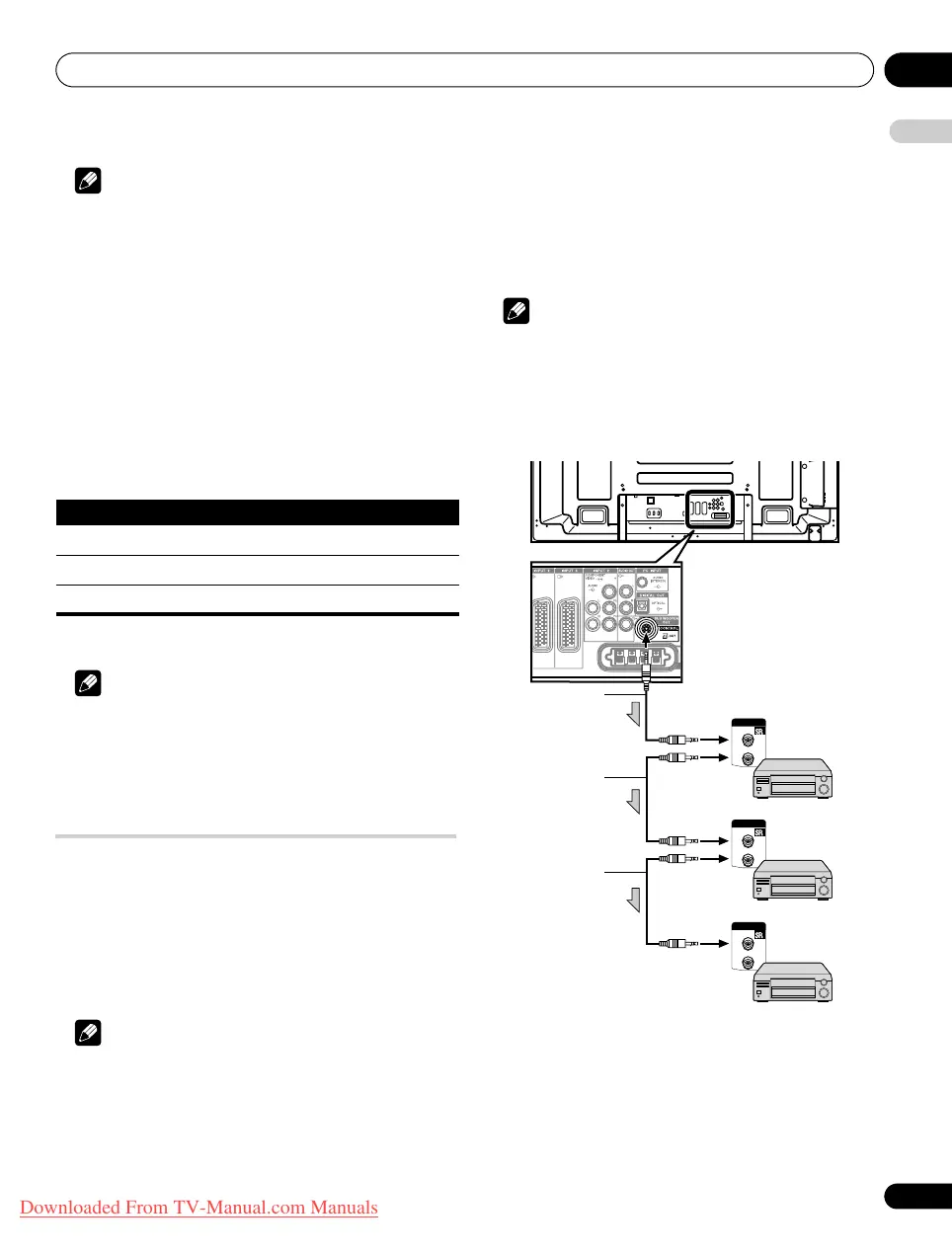

Connecting control cords
Connect control cords between the flat screen TV and other Pioneer
equipment having the t logo. You can then operate the connected
equipment by sending commands from its remote control unit to
the remote control sensor on the flat screen TV.
After the CONTROL IN terminals have been connected, the remote
control sensors on the connected equipment do not accept
commands from the remote control units. Face the remote control
units to the remote control sensors on the flat screen TV when
operating the connected equipment.
Note
• Make sure that the power cord is removed from the power outlet
when making connections.
• Complete all component connections before making control
cord connections.
About SR+
The CONTROL OUT terminal on the rear of the flat screen TV
supports SR+ that allows linked operations with a Pioneer AV
receiver. SR+ presents functions such as the input switch linkage
operation function and the DSP surround mode display function.
For more information, see the instruction manual that came with
the Pioneer AV receiver supporting SR+.
Note
• While in connection through SR+, the volume on this system is
temporarily minimized.
• When making control cord connections, use the SR+ cable.
• When making control cord connections with one or more
pieces of Pioneer equipment, directly connect the flat screen TV
and the Pioneer amplifier that supports SR+. Do not connect
other equipment between them.
When SR+ is not used (a, b and c):
The control cables (commercially available) are mono sound cables
with mini plugs (no resistance).
When SR+ is used (a):
Use the SR+ cable (available as option).
Item Description
Auto (default) Automatically identifies the input signals
Digital Accepts digital audio signals
Analogue Accepts analogue audio signals
T
W
T
W
CONTROL
IN
OUT
CONTROL
IN
OUT
CONTROL
IN
OUT
a
b
c
PDP-LX609H.book Page 67 Wednesday, August 6, 2008 4:00 PM
