If the following error codes appear on the screen, check the corresponding items in the table.

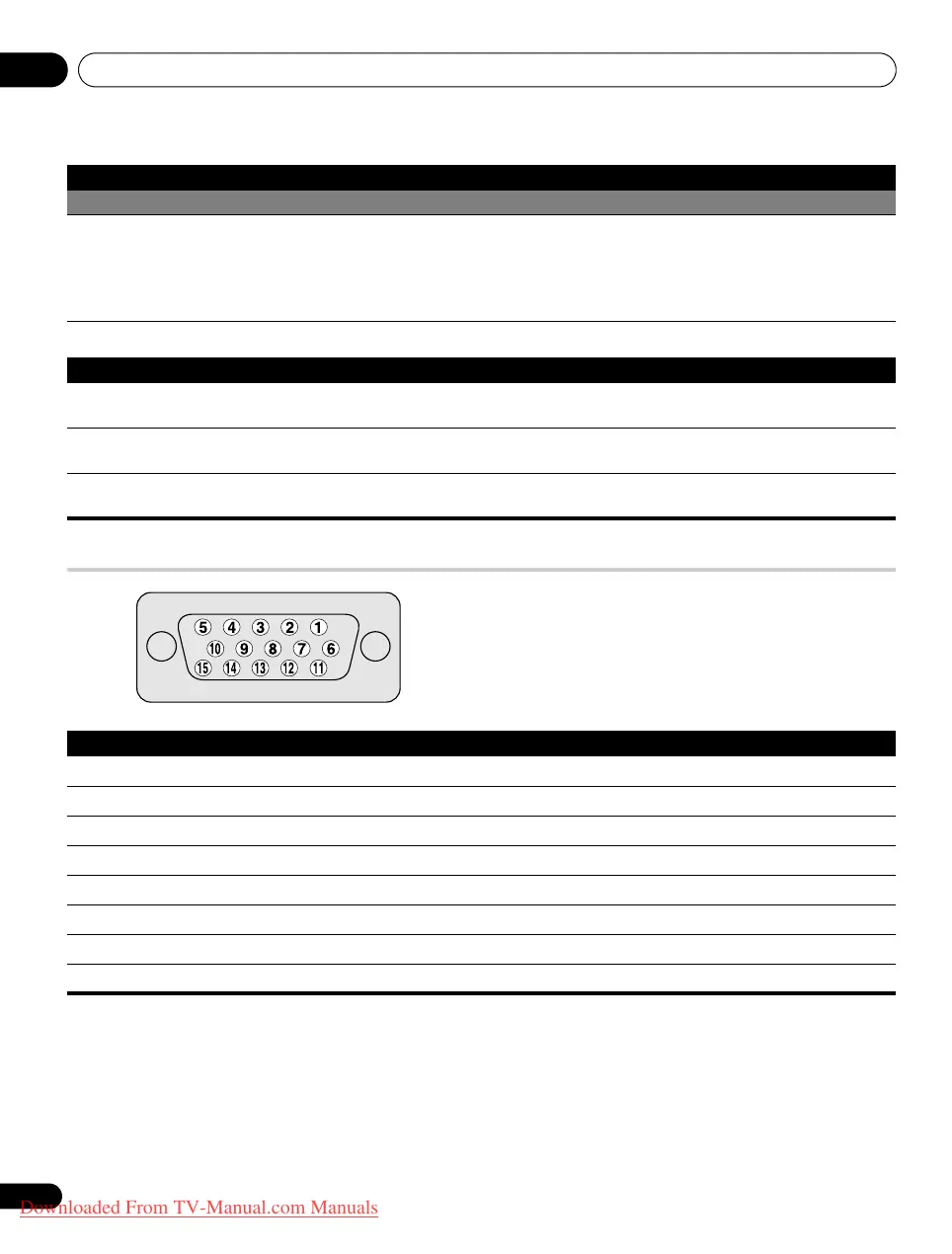

Signal names for 15-pin mini D-sub connecter
OTHER
• POWER ON indicator or
STANDBY indicator is quickly
flashing.
• Internal protective circuits may have been activated. First turn a off on the flat screen TV, wait one
minute or more, then switch the power on again by turning a on. If the indicator is still flashing,
unplug the flat screen TV’s power cord from the power outlet. Wait one to two minutes then plug
in the flat screen TV again. If this does not solve the problem, contact a Pioneer Service Center.
These are listed on your warranty card for each country. Alternatively, check the Pioneer Web site
(see back cover) for contact details.
Code Message Check
SD04 Powering off. Internal temperature is too high.
Check temperature around the display.
Check if the ambient temperature of the flat screen TV is high.
SD05 Internal protection circuits turning power OFF.
Possible short in the speaker cable.
Check the speaker cable connections between the flat screen
TV and the speakers.
SD11 Powering off. Internal temperature is too high.
Check temperature around TV.
Check if the ambient temperature of the flat screen TV is high.
Problem Possible solution
Pin No. Signal name Pin No. Signal name
1R 9+5 V
2G 10GND (ground)
3 B 11 Not connected
4Not connected 12SDA
5Not connected 13HD
6GND (ground) 14VD
7GND (ground) 15SCL
8GND (ground)
