Preventing the flat screen TV from
falling over
After installing the stand, be sure to take special care to ensure that
the flat screen TV will not fall over and is stabilized to both the wall
and rack.
Stabilizing on a table or rack

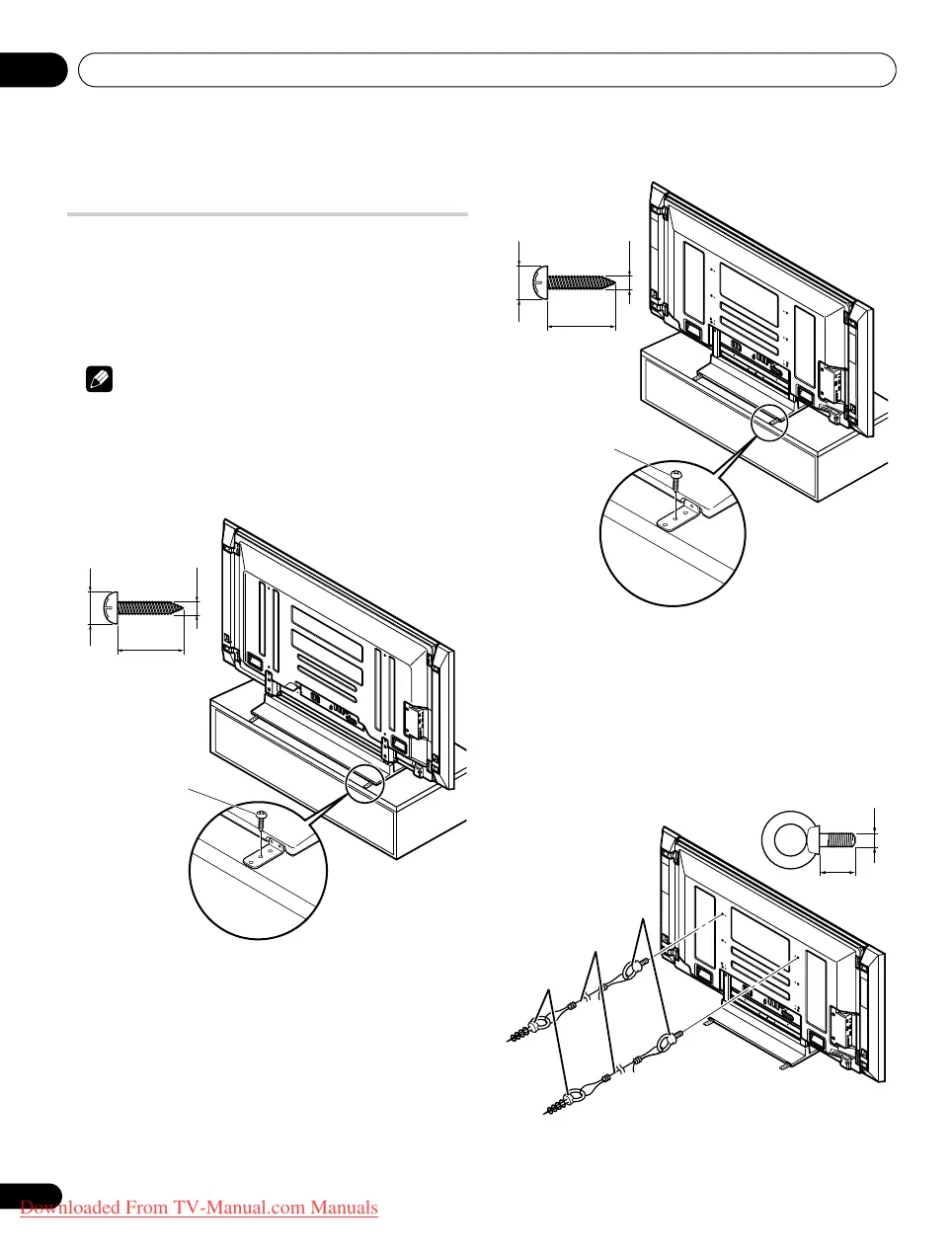

Stabilize the flat screen TV as shown in the diagram using the falling
prevention metal fittings and screws supplied with the optional
stand.
Note
• Before stabilizing the flat screen TV on a stand or rack, make
sure that the falling prevention metal fittings are attached to the
stand.
• To stabilize the flat screen TV on a table or rack, also use
commercially available wood screws that have a nominal
diameter of 4 mm and that are at least 20 mm long.
Drill a hole in the middle at the rear of the tabletop panel before
using a wood screw. Perform this work the same way on the left and
right sides.
Drill a hole in the middle at the rear of the tabletop panel before
using a wood screw. Perform this work the same way on the left and
right sides.
Using a wall for stabilization
1 Attach falling prevention bolts (hooks) to the flat screen TV.
2 Use strong cords to stabilize it appropriately and firmly to a
wall, pillar, or other sturdy element.
Perform this work in the same way on the left and right sides.
Use hooks, cords and fittings that are available on the market.
Recommended hook: Nominal diameter 8 mm, length 12 mm to
18 mm
(PDP-LX6090H)
8 mm to 15 mm
20 mm min.
4 mm
Wood screw
(commercially available,
4 mm x 20 mm min.)
(PDP-LX5090H)
8 mm to 15 mm
20 mm min.
4 mm
Wood screw
(commercially available,
4 mm x 20 mm min.)
1. Hook
2. Cord
Fitting
12 mm to 18 mm
M8
